Steering Column Shroud

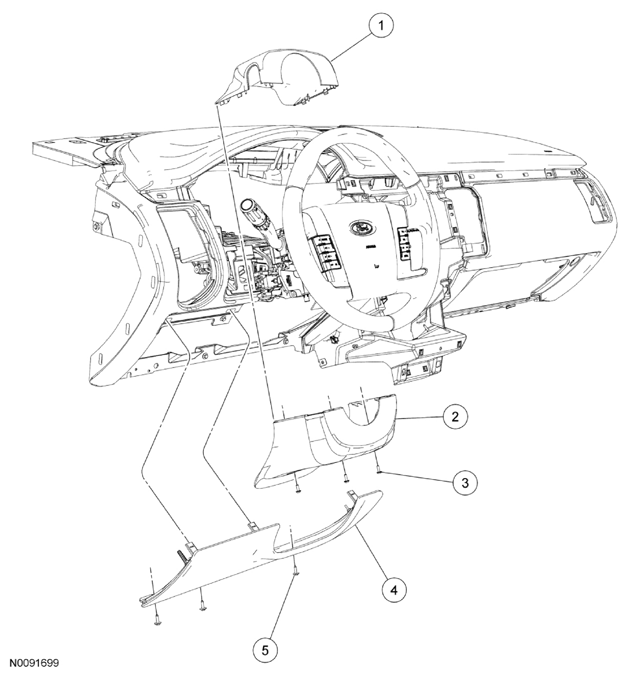

Fig 1: Identifying Steering Column Shroud Removal And Installation
G08042267Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3530 Upper steering column shroud
2 3533 Lower steering column shroud
3 N706731 Steering column shroud screw (3 required)
4 044F08 Steering column opening trim panel
5 N808453 Steering column opening trim panel screw (3 required)
  1. Remove the 3 screws and the steering column opening trim panel.
  2. Remove the upper and lower steering column shrouds.
    • Remove the 3 screws.
    • Unclip the lower steering column shroud from the upper and remove the shrouds.
