Selector Lever Bezel: Installation

All vehicles

NOTE: Do not lock the 4 selector lever bezel tabs in the selector lever bezel.
1. Position the selector lever bezel on the selector lever.

   Vehicles equipped with a TCS

2. Route the TCS wiring harness through the selector lever bezel and connect the TCS connector.

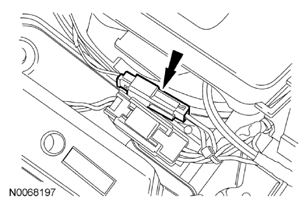

   Fig 1: Location of TCS Electrical Connector

   Courtesy of FORD MOTOR CO.

   All vehicles

3. Connect the selector lever bezel light to the selector lever.

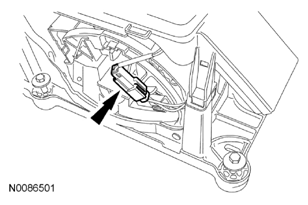

   Fig 2: Location of Selector Lever Bezel Light Electrical Connector

   Courtesy of FORD MOTOR CO.
NOTE: Selector lever removed for clarity.
Fig 3: Identifying Selector Lever Bezel And Tabs
Courtesy of FORD MOTOR CO.
4. Position the selector lever bezel in place.
   • Be sure the 4 tabs are locked in place.

   Vehicles not equipped with a TCS

5. Position the selector lever knob bezel and the selector lever knob in place.

   All vehicles

6. Position the selector lever knob and knob bezel in place and install the screws.
   Fig 4: Location of Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.
7. Slide the lower selector lever knob bezel up and snap it into place.

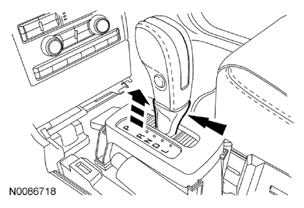

   Fig 5: Sliding Lower Selector Lever Knob Bezel Up

   Courtesy of FORD MOTOR CO.
8. Install the upper console panel.
   Fig 6: Location of Floor Console Finish Panel

   Courtesy of FORD MOTOR CO.
9. Install the selector lever bezel trim ring.

Fig 7: Location of Selector Lever Trim Ring

Courtesy of FORD MOTOR CO.
