Selector Lever Bezel: Removal

All vehicles

1. Remove the selector lever bezel trim ring.
   Fig 1: Location of Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
2. Lift the armrest and remove the upper console panel.
   Fig 2: Location of Floor Console Finish Panel

   Courtesy of FORD MOTOR CO.
3. Slide the lower selector lever knob bezel downward.
   Fig 3: Sliding Lower Selector Lever Knob Bezel Downward

   Courtesy of FORD MOTOR CO.
4. Remove the 2 screws from the selector lever knob.

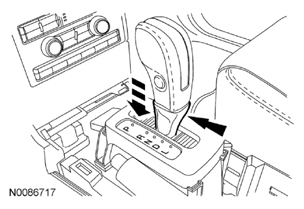

   Fig 4: Location of Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.

   Vehicles not equipped with a Transmission Control Switch (TCS)

5. Remove the selector lever knob and knob bezel.

   All vehicles

NOTE: Selector lever removed for clarity.

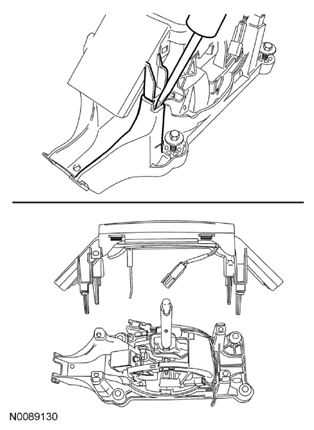

Fig 5: Identifying Selector Lever Trim Ring Tabs
Courtesy of FORD MOTOR CO.
6. Release the 4 selector lever bezel tabs and position the selector lever bezel aside to gain access to the bezel light and the Transmission Control Switch (TCS) connector, if equipped.
7. Disconnect the selector lever bezel light electrical connector from the selector lever.

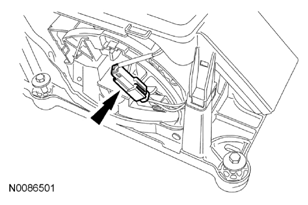

   Fig 6: Location of Selector Lever Bezel Light Electrical Connector

   Courtesy of FORD MOTOR CO.

   Vehicles equipped with a TCS

8. Disconnect the TCS connector, route the wiring harness out of the selector lever bezel and remove the selector lever knob and knob bezel.

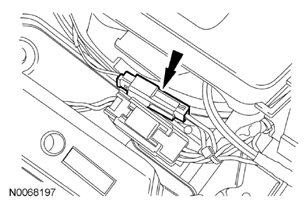

   Fig 7: Location of TCS Electrical Connector

   Courtesy of FORD MOTOR CO.

   All vehicles

9. Remove the selector lever bezel.
