Selector Lever Knob: Installation

Vehicles with a TCS

1. Route the TCS wiring harness through the selector lever bezel and connect the TCS electrical connector.
   Fig 1: Location of TCS Electrical Connector

   Courtesy of FORD MOTOR CO.
NOTE: Selector lever removed for clarity.
Fig 2: Identifying Selector Lever Bezel And Tabs
Courtesy of FORD MOTOR CO.
2. Position the selector lever bezel in place.
   • Be sure the 4 tabs are locked in place.

   All vehicles

3. Position the selector lever knob and knob bezel in place and install the screws.
   Fig 3: Location of Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.
4. Slide the lower selector lever knob bezel up and snap it into place.
   Fig 4: Sliding Lower Selector Lever Knob Bezel Up

   Courtesy of FORD MOTOR CO.

   Vehicles with a TCS

5. Install the upper console panel.

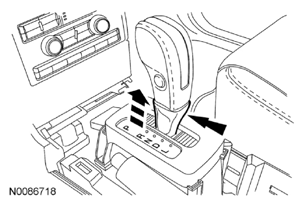

   Fig 5: Location of Floor Console Finish Panel

   Courtesy of FORD MOTOR CO.
6. Install the selector lever bezel trim ring.
   Fig 6: Location of Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
