Selector Lever: Installation

Install the selector lever and the 4 selector lever bolts.
- Tighten to 11 Nm (97 lb-in).
Fig 1: Location of Selector Lever Bolts
Courtesy of FORD MOTOR CO.
Connect the electrical connector.

Fig 2: Location of Electrical Connector
Courtesy of FORD MOTOR CO.
Install the selector lever cable on the selector lever bracket. Make sure the 2 clips are securely in place on the selector lever bracket.

Fig 3: Location of Selector Lever Cable Tabs
Courtesy of FORD MOTOR CO.
Connect the selector lever cable end to the selector lever.

Fig 4: Location of Selector Lever Cable End
Courtesy of FORD MOTOR CO.

NOTE: Damage may occur to the center console if cardboard is not used to install the floor console trim panel.

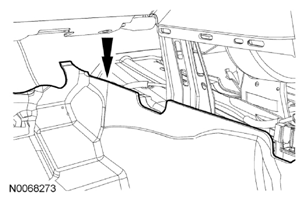

Fig 5: Location of LH Floor Console Trim Panel And Cardboard

Courtesy of FORD MOTOR CO.

Insert the floor console trim panel and cardboard simultaneously between the seat and center console.
Push the front of the floor console trim panels upward to attach the trim panel from the pin-type retainer.

Fig 6: Location of Front Of Floor Console Trim Panel
Courtesy of FORD MOTOR CO.
Push the floor console trim panel inward to attach the retaining clips.

Fig 7: Pushing Floor Console Trim Panel Inward
Courtesy of FORD MOTOR CO.
Install the floor console finish panel.

Fig 8: Location of Floor Console Finish Panel
Courtesy of FORD MOTOR CO.
Install the selector lever trim ring.

Fig 9: Location of Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Check the selector lever cable adjustment. Make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. If an adjustment is necessary, refer to Selector Lever Cable Adjustment .
