Selector Lever: Removal

Remove the selector lever trim ring.

Fig 1: Location of Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Lift upward and open the storage compartment lid.
Lift upward on the rear of the upper console finish panel and remove the upper console finish panel.

Fig 2: Location of Floor Console Finish Panel
Courtesy of FORD MOTOR CO.

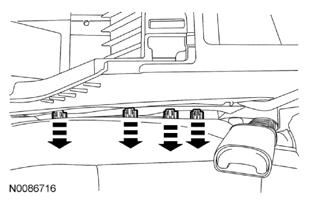

Pull the floor console trim panel outward to release the retaining clips.

Fig 3: Pulling Floor Console Trim Panel Outward
Courtesy of FORD MOTOR CO.
Push the front of the floor console trim panel downward to detach the trim panel from the pin-type retainer.

Fig 4: Location of Front Of Floor Console Trim Panel
Courtesy of FORD MOTOR CO.

NOTE: Damage may occur to the center console if cardboard is not used to remove the floor console trim panel.

Fig 5: Placing Piece Of Cardboard Between Floor Console Trim Panel And Center Console

Courtesy of FORD MOTOR CO.

Position a piece of cardboard between the LH floor console trim panel and the center console.
Remove the LH floor console trim panel and cardboard simultaneously.

Fig 6: Location of LH Floor Console Trim Panel And Cardboard
Courtesy of FORD MOTOR CO.

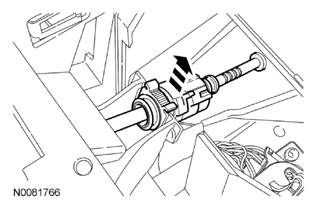

Disconnect the selector lever cable from the selector lever.

Fig 7: Disconnecting Selector Lever Cable From Selector Lever
Courtesy of FORD MOTOR CO.
Remove the selector cable from the selector lever cable bracket.

Fig 8: Removing Selector Cable From Selector Lever Cable Bracket
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

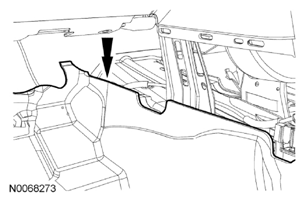

Fig 9: Location of Electrical Connector
Courtesy of FORD MOTOR CO.

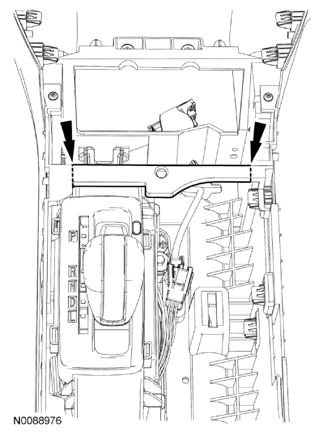

Cut floor console bridge where indicated in the illustration. Remove and discard the piece of floor console.

Fig 10: Location of Floor Console Bridge
Courtesy of FORD MOTOR CO.

NOTE: Selector lever removed for clarity.

Remove the 4 selector lever bolts and remove the selector lever from the vehicle.

Fig 11: Location of Selector Lever Bolts

Courtesy of FORD MOTOR CO.
