Selector Lever Knob: Removal

Vehicles with a Transmission Control Switch (TCS)

1. Remove the selector lever trim ring.

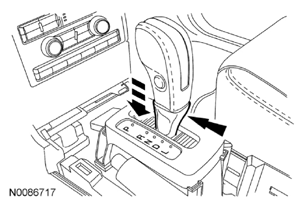

   Fig 1: Location of Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
2. Lift the armrest and remove the center console cup holder panel.
   Fig 2: Location of Floor Console Finish Panel

   Courtesy of FORD MOTOR CO.

   All vehicles

3. Slide the lower selector lever knob bezel downward.
   Fig 3: Sliding Lower Selector Lever Knob Bezel Downward

   Courtesy of FORD MOTOR CO.
4. Remove the 2 screws from the selector lever knob.
   Fig 4: Location of Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.

   Vehicles without a TCS

5. Remove the selector lever knob.

   Vehicles with a TCS

NOTE: Selector lever removed for clarity.

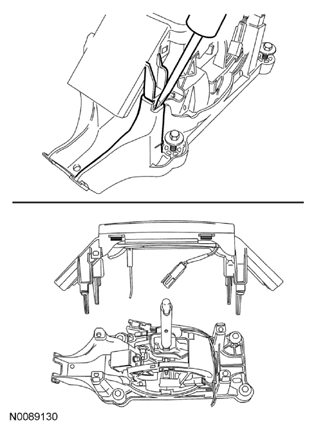

Fig 5: Identifying Selector Lever Trim Ring Tabs
Courtesy of FORD MOTOR CO.
6. Release the 4 tabs and position the selector lever trim ring aside to gain access to the Transmission Control Switch (TCS) electrical connector.
7. Disconnect the TCS electrical connector, route the wiring harness out of the selector lever bezel and remove the selector lever knob and knob bezel.

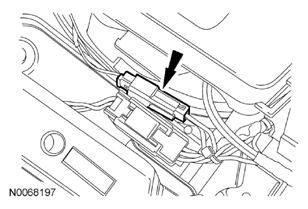

Fig 6: Location of TCS Electrical Connector
