Air Bag Control Module: Service and Repair

Restraints Control Module (RCM)

Removal

WARNING:
- After the power supply has been disconnected, wait for a minimum of 3 minutes before disconnecting or removing any pyrotechnic components.
- Make sure that the vehicle electrical system is fully depowered and no other power source is connected.

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Safety Belt and Supplemental Restraint System (SRS) Health and Safety Precautions (100-00 General Information, Description and Operation).
2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

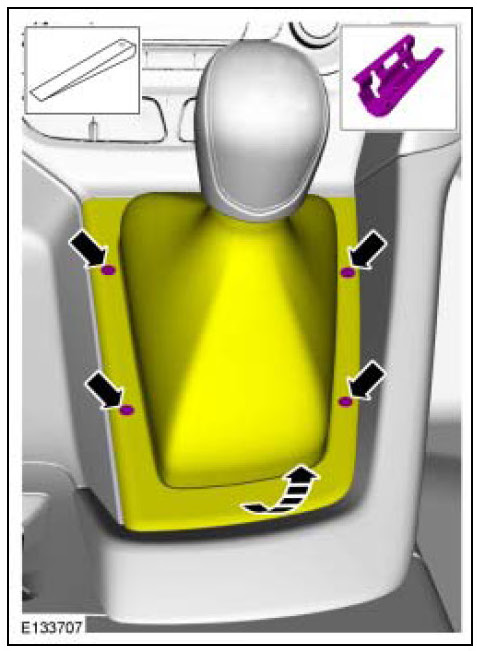

Vehicles with manual transmission

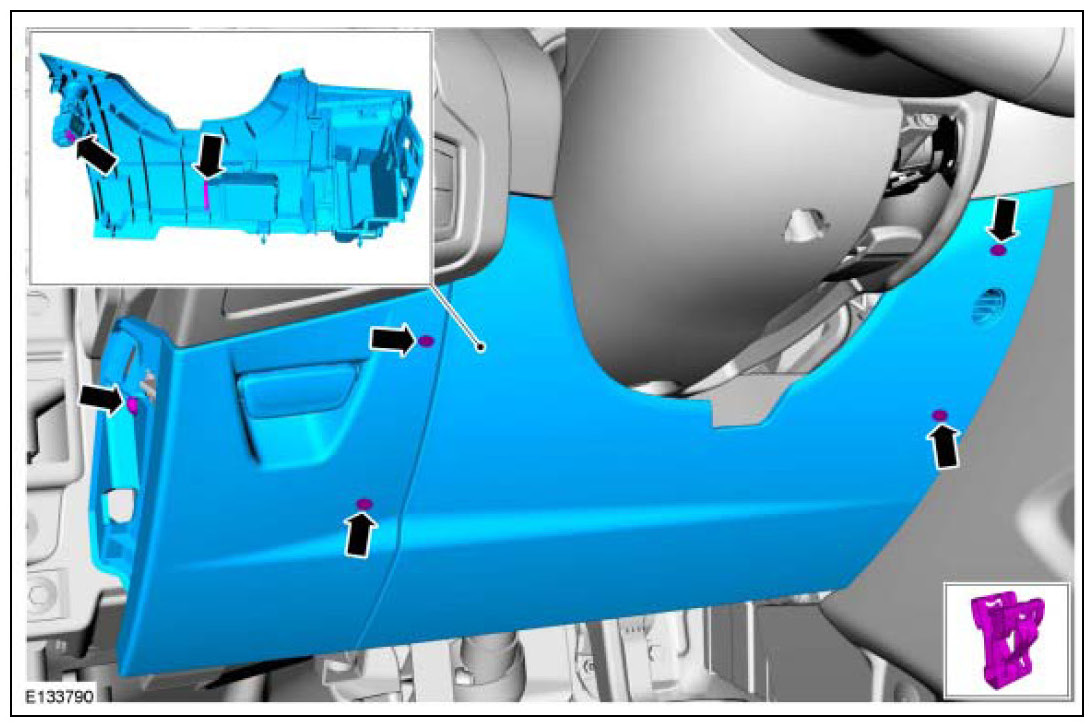

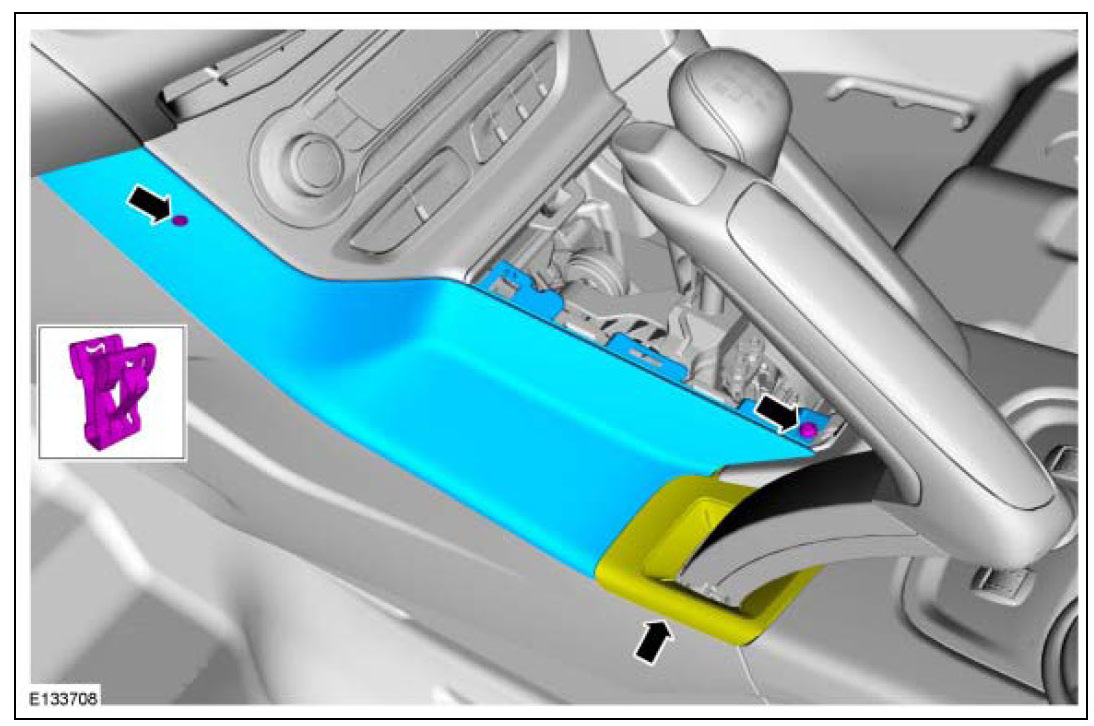

3.

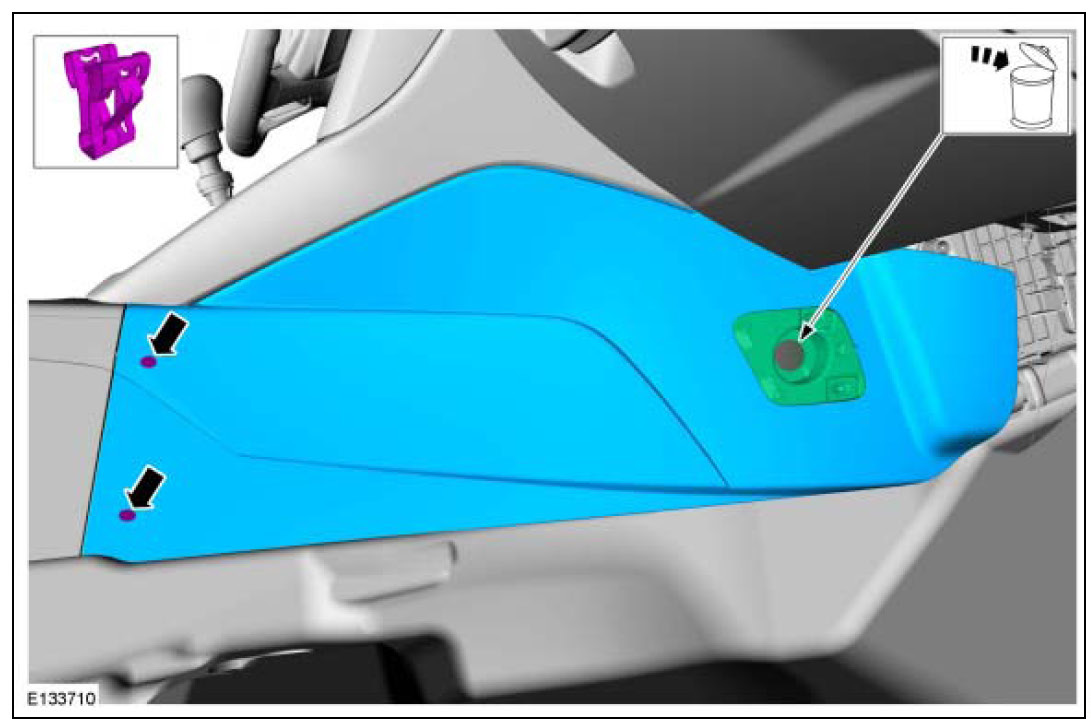

Vehicles with automatic transmission

4.

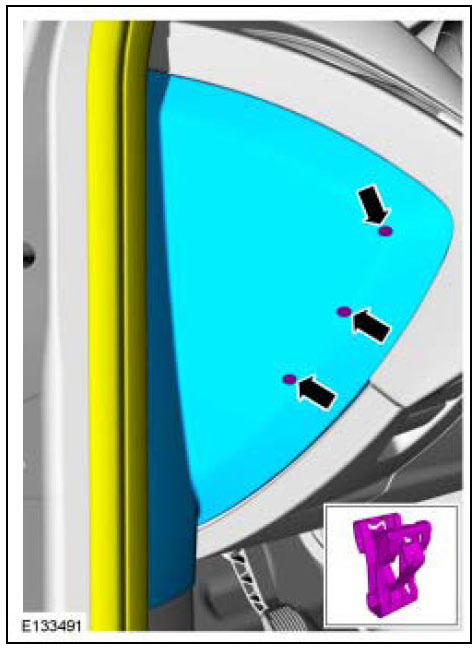

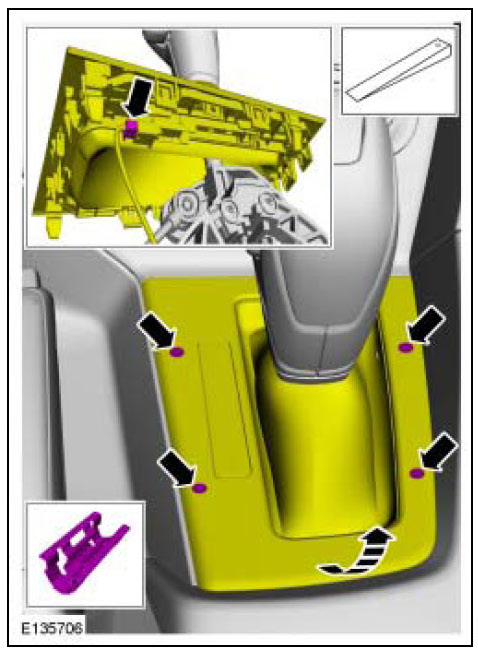

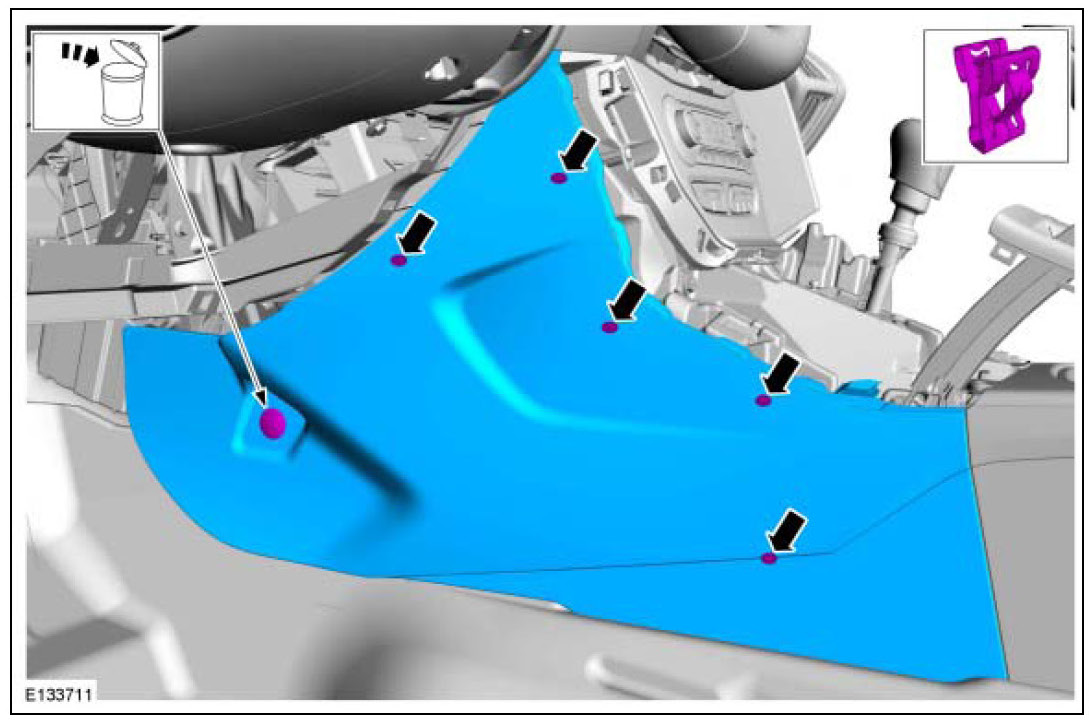

Vehicles with center armrest

5.

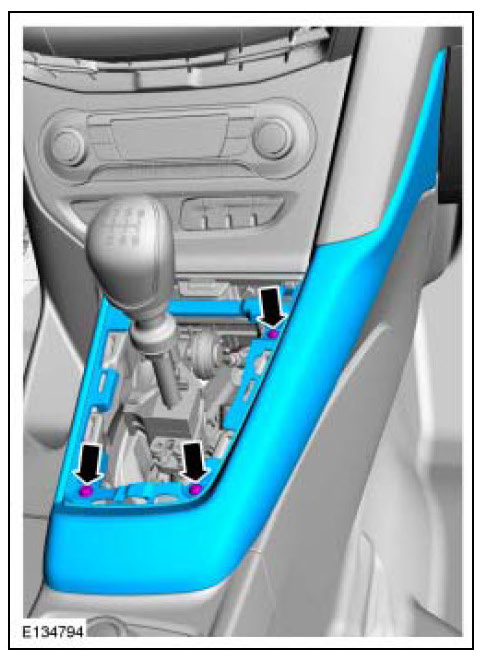

Vehicles without center armrest

6.

All vehicles

7.

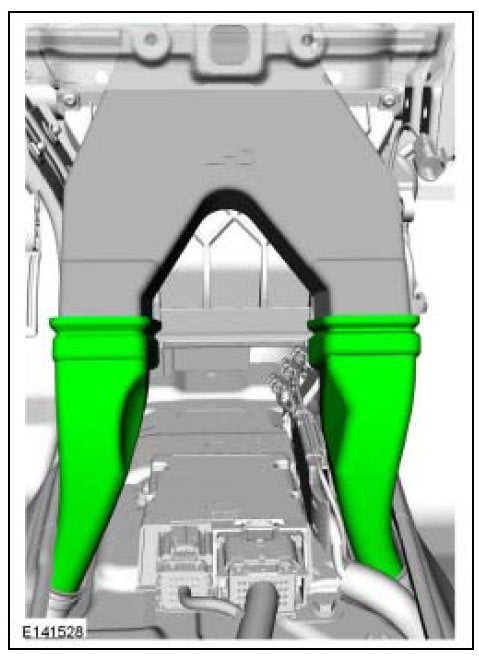

10.

11.

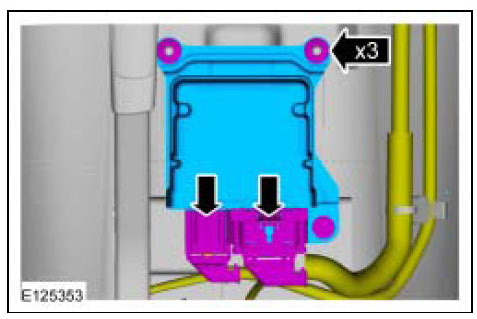

12. Torque: 10 Nm

Installation

1. To install, reverse the removal procedure.
2. When a new RCM is installed, configure the RCM using the diagnostic tool.
General Equipment: Ford approved diagnostic tool
