Symbols Glossary

Symbols Glossary

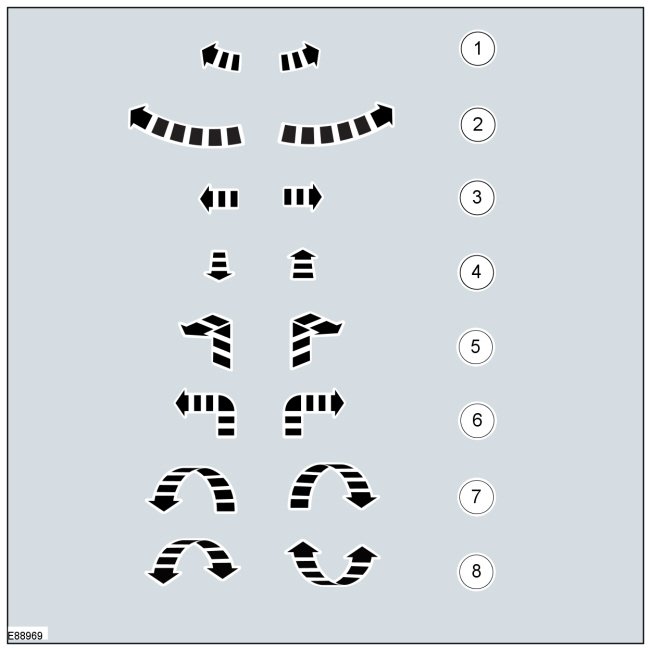

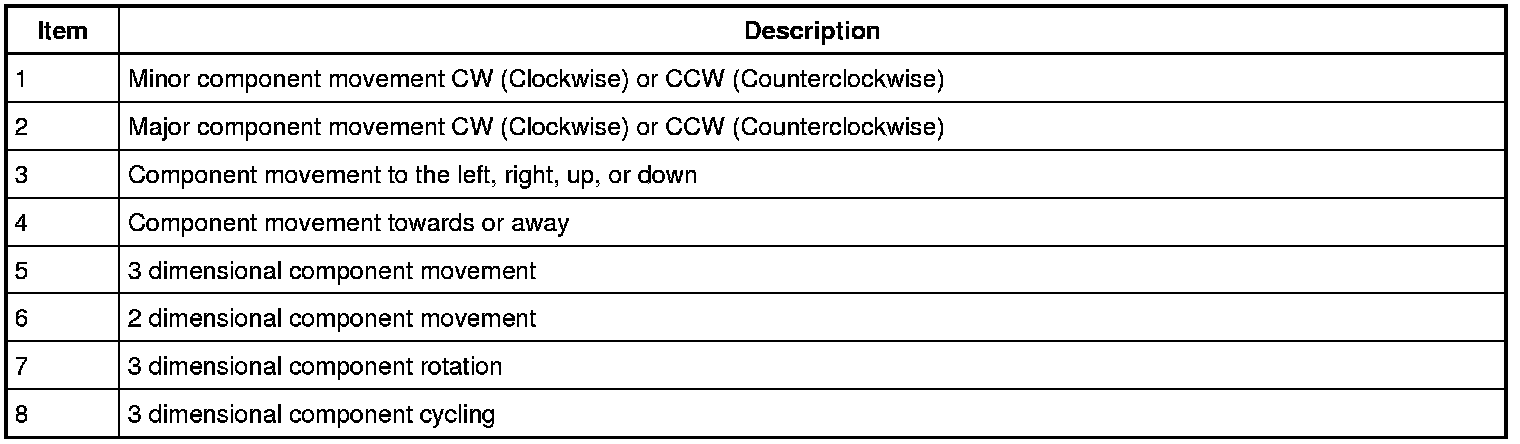

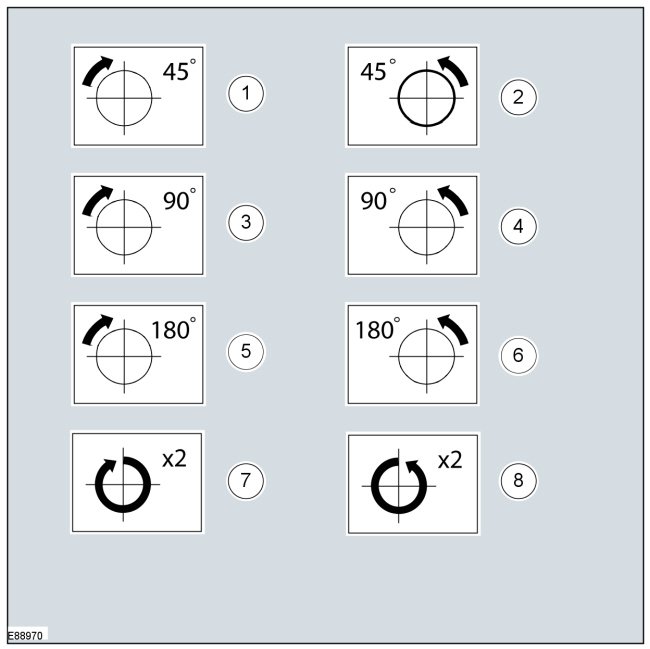

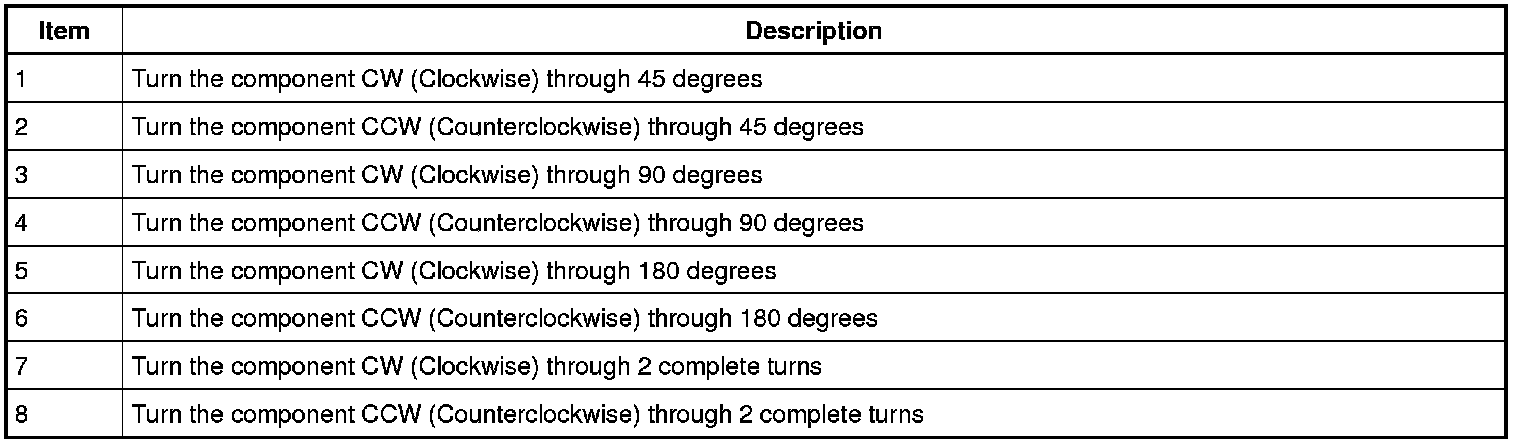

Movement Symbols

Movement symbols provide detailed information to a required component movement. These component movements can be rotational or 1-3 dimensional movements.

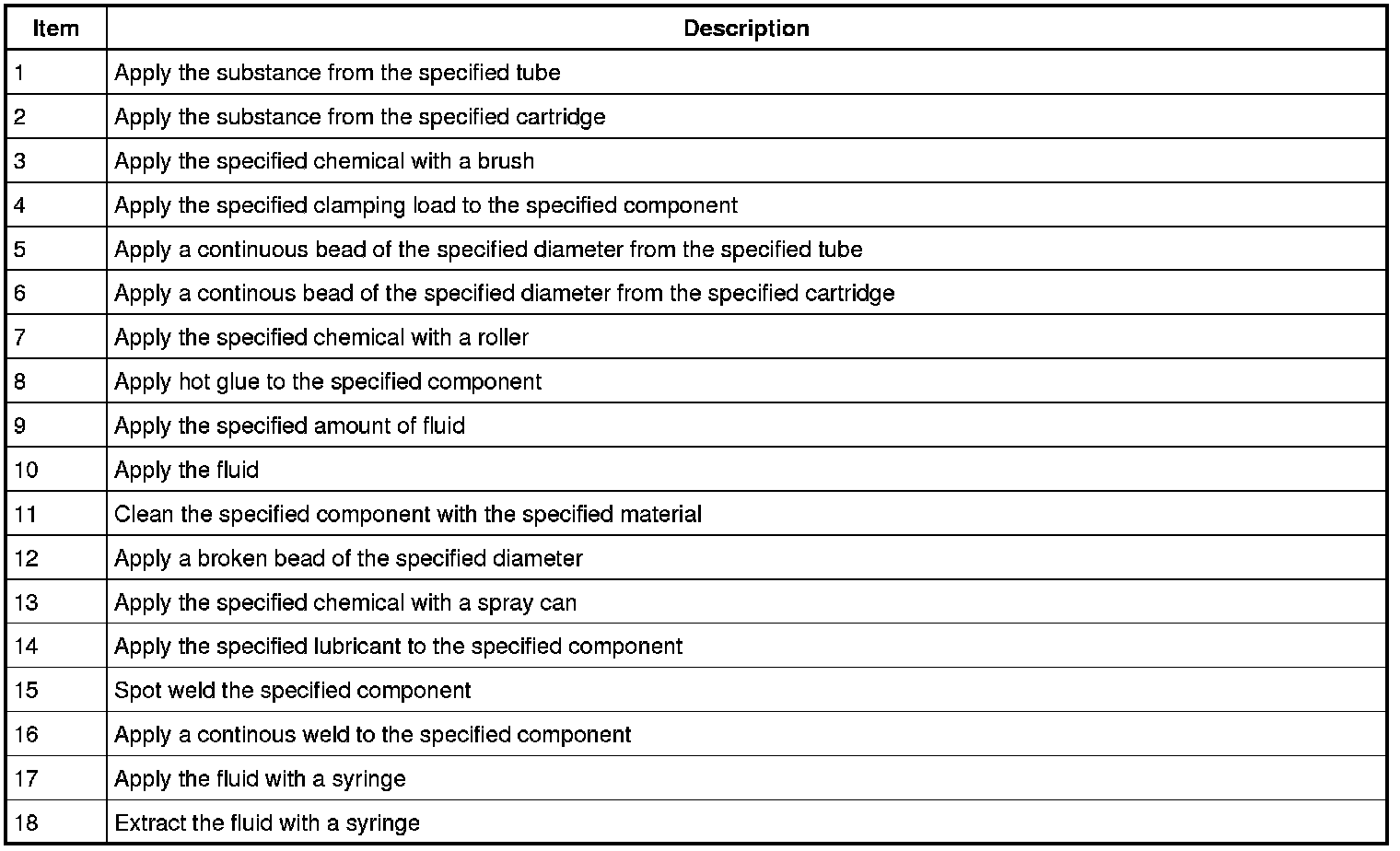

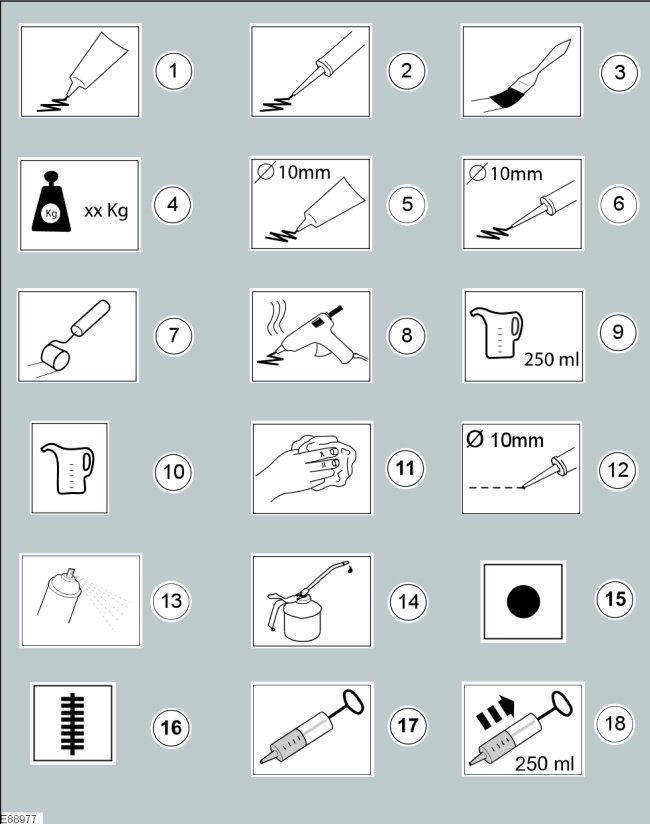

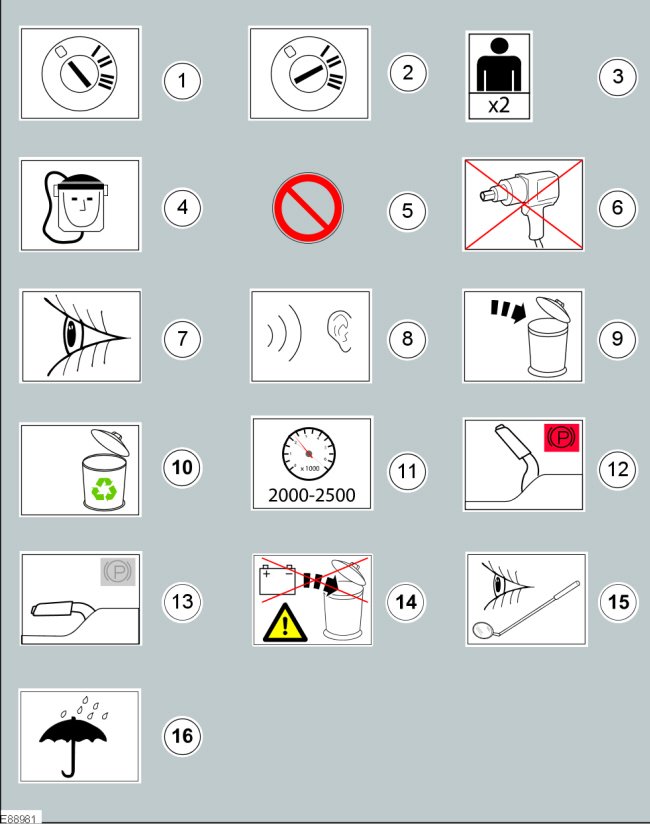

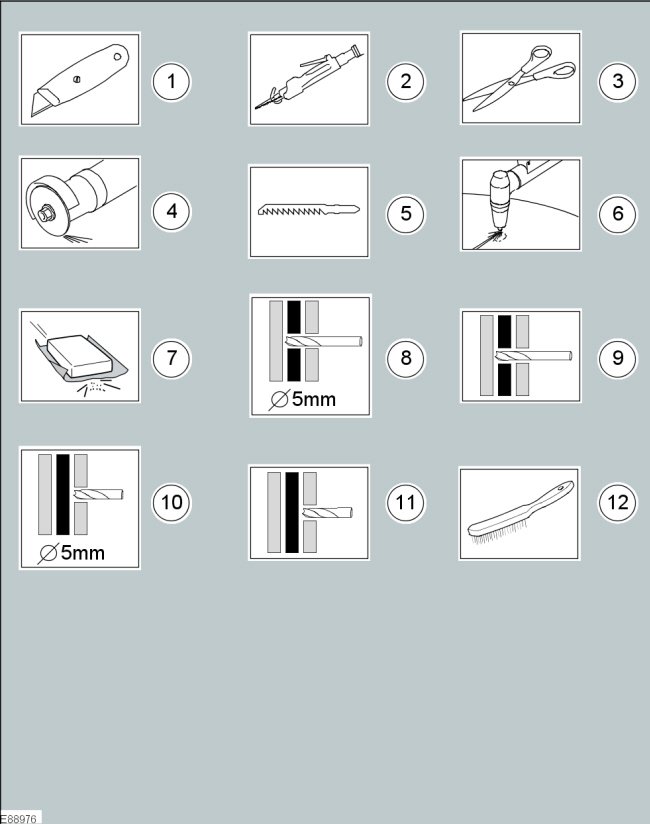

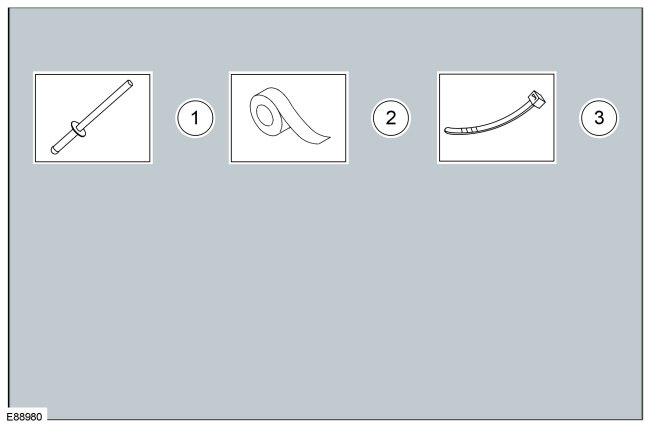

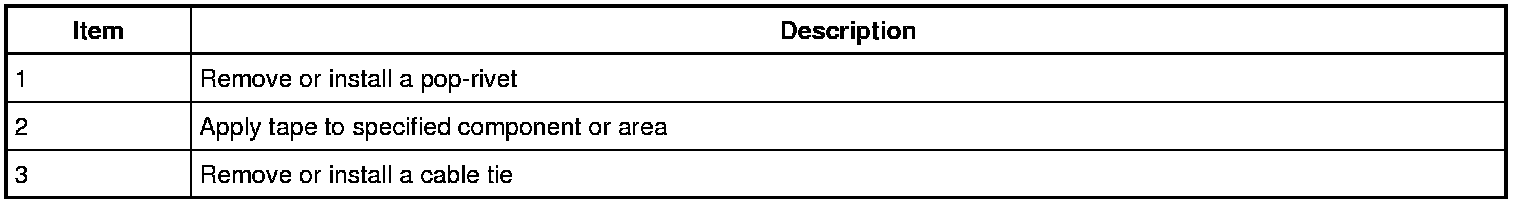

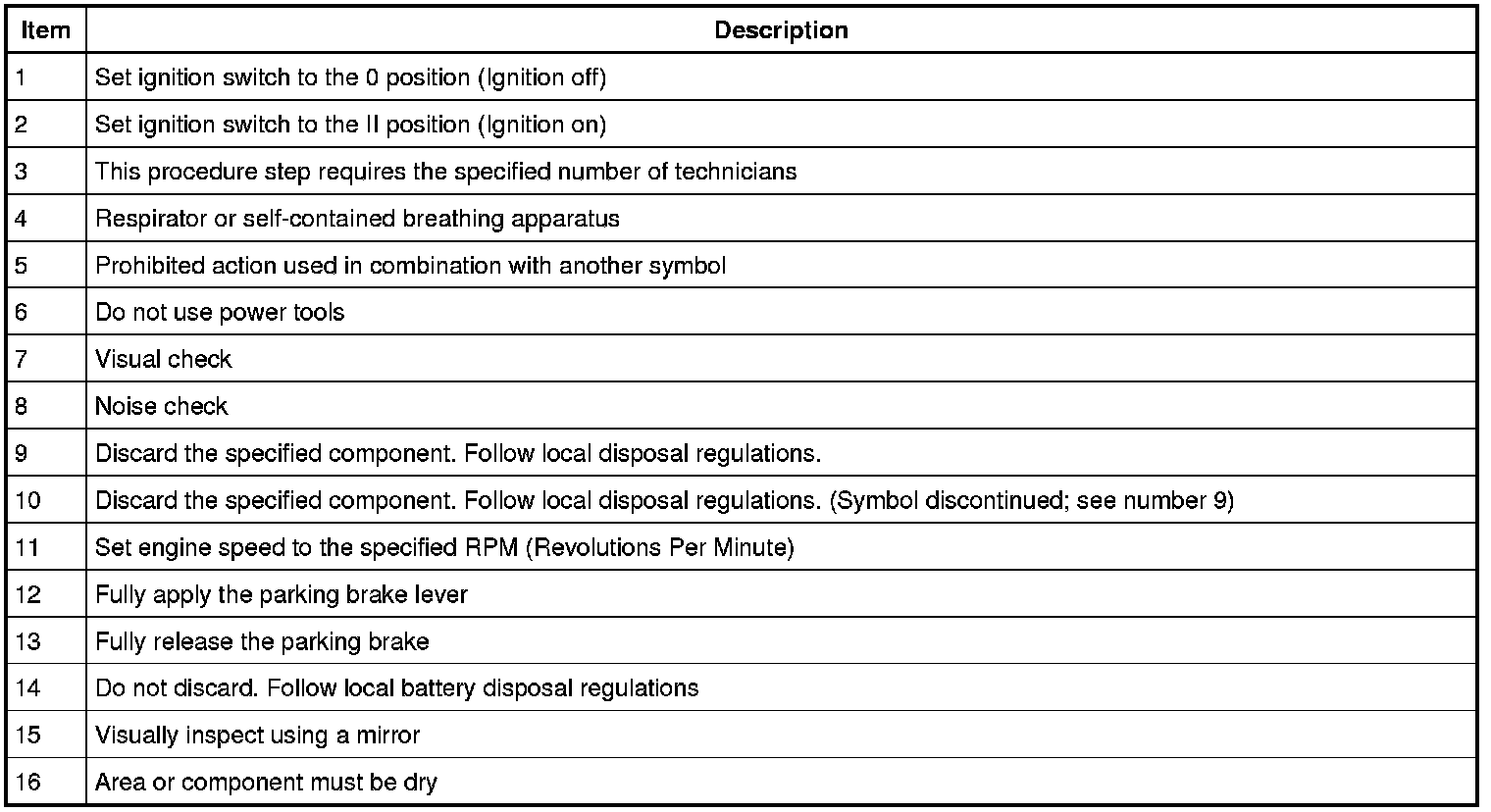

Service Action Icons

Service action icons communicate an additional action related to the step graphic (for example, discard the fastener removed in this step graphic or apply a 3 mm bead of sealer)
