Cowl: Service and Repair

Cowl Panel

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Removal

1. Remove the cowl panel grille. REFER to Cowl Panel Grille .

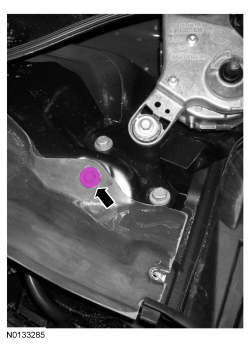

2. NOTE: LH (Left Hand) side shown, RH (Right Hand) side similar.
Remove the 2 bolts.
- 10 Nm (89 lb-in)





3. Remove the cowl panel.

Installation

1. To install, reverse the removal procedure.
