Antenna - Keyless Entry: Service and Repair

Liftgate or Luggage Compartment Intelligent Access (IA) Antenna

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

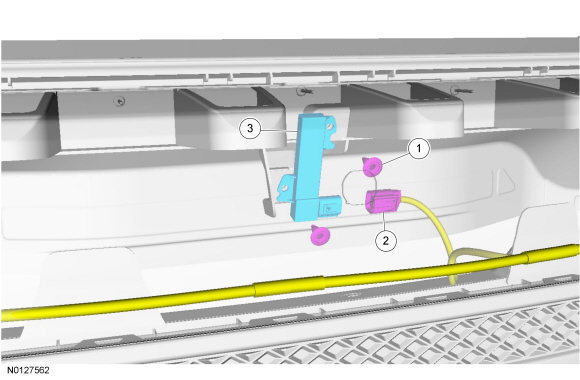

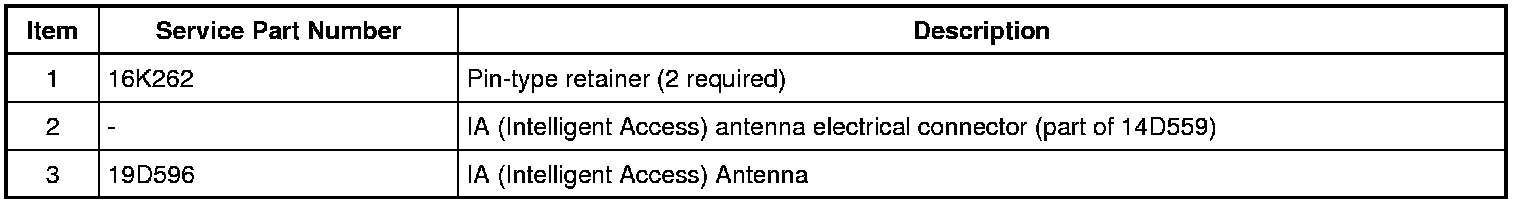

Exploded View










Removal

1. Remove the rear bumper cover. REFER to Bumper Cover - Rear .

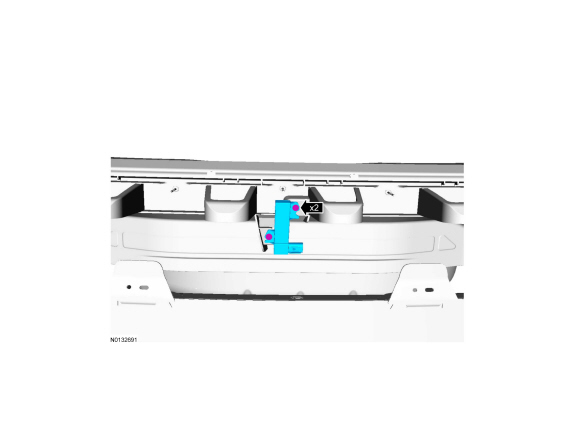

2. Remove the 2 pin-type retainers and the IA (Intelligent Access) antenna.





Installation

1. To install, reverse the removal procedure.
