Automatically Shifted Manual Transmission/Transaxle
>>
Transmission Speed Sensor, ASMT
>>
C143 Input Shaft Speed Sensor 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

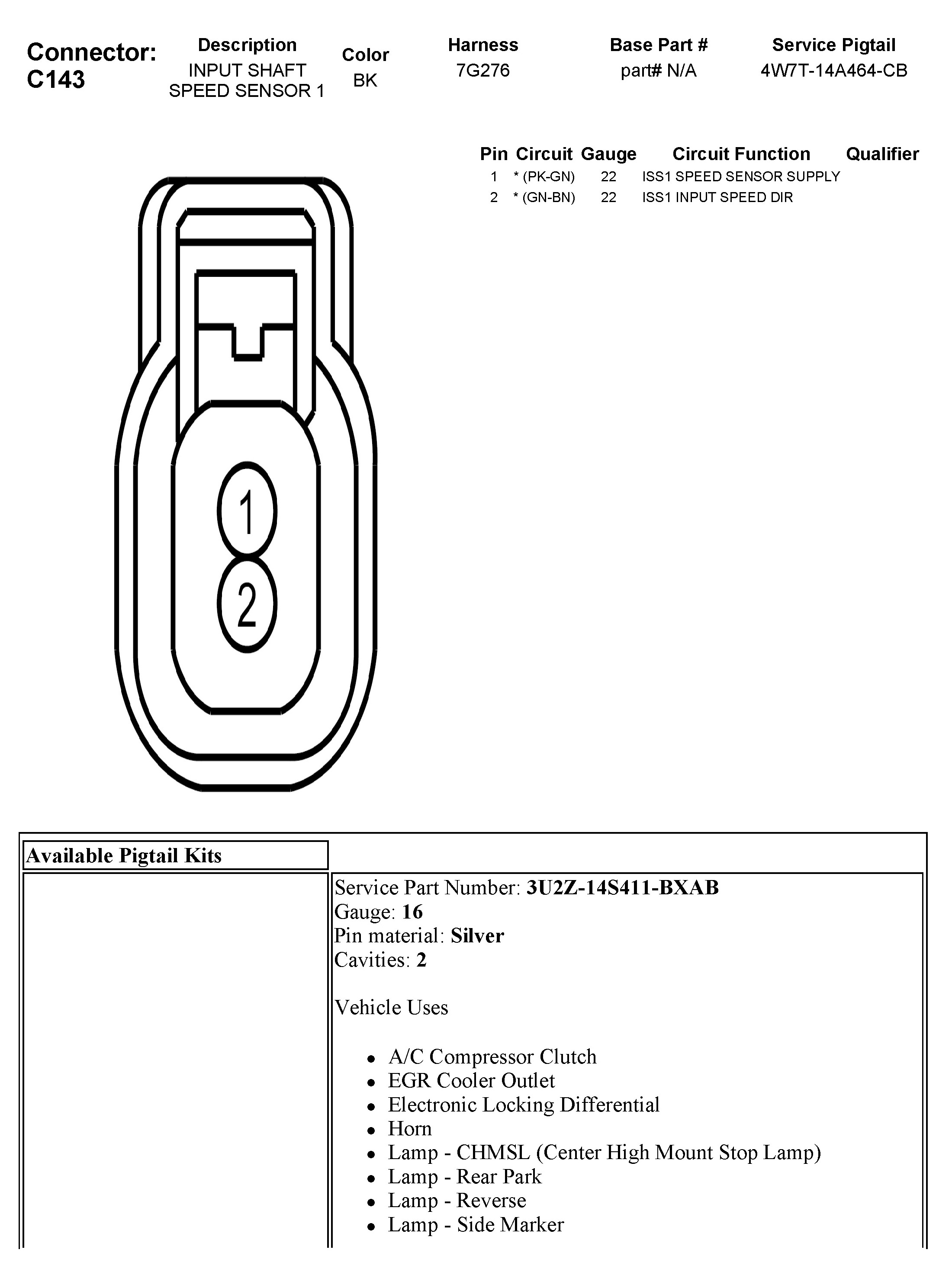

C143 Input Shaft Speed Sensor 1
