Courtesy Lamp: Service and Repair

Puddle Lamp

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

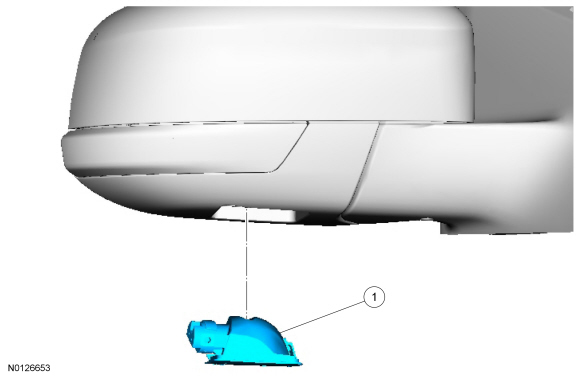

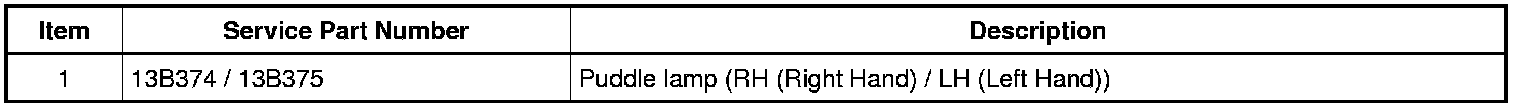

Exploded View










Removal

1. Release the tab to remove the puddle lamp from the mirror housing.

2. Disconnect the electrical connector and remove the puddle lamp.

Installation

1. Connect the puddle lamp electrical connector.

2. NOTE: An audible click can be heard when the puddle lamp is fully seated.
Install the puddle lamp into the mirror housing.
