Headlamp: Service and Repair

Headlamp Assembly

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

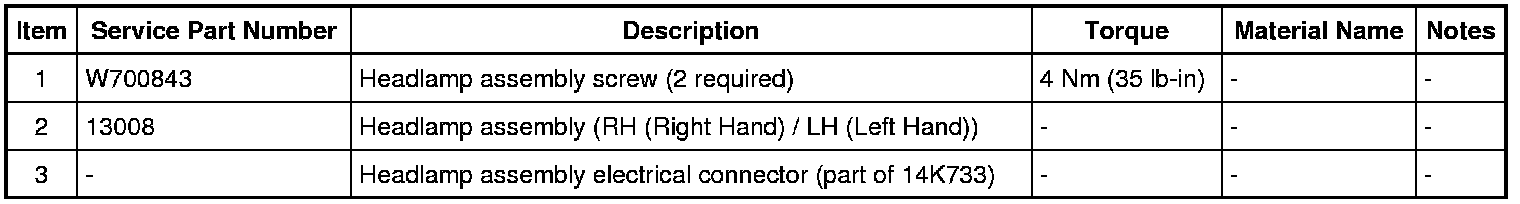

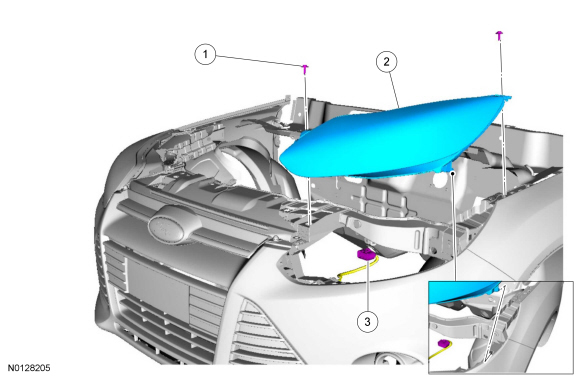

Exploded View

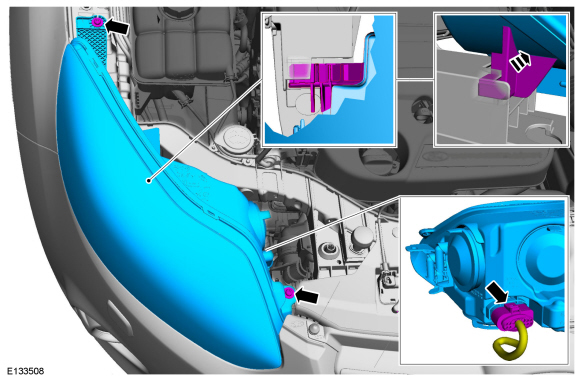

Removal

NOTE: Removal steps in this procedure may contain installation details.

1.





Installation

1. To install, reverse the removal procedure.
