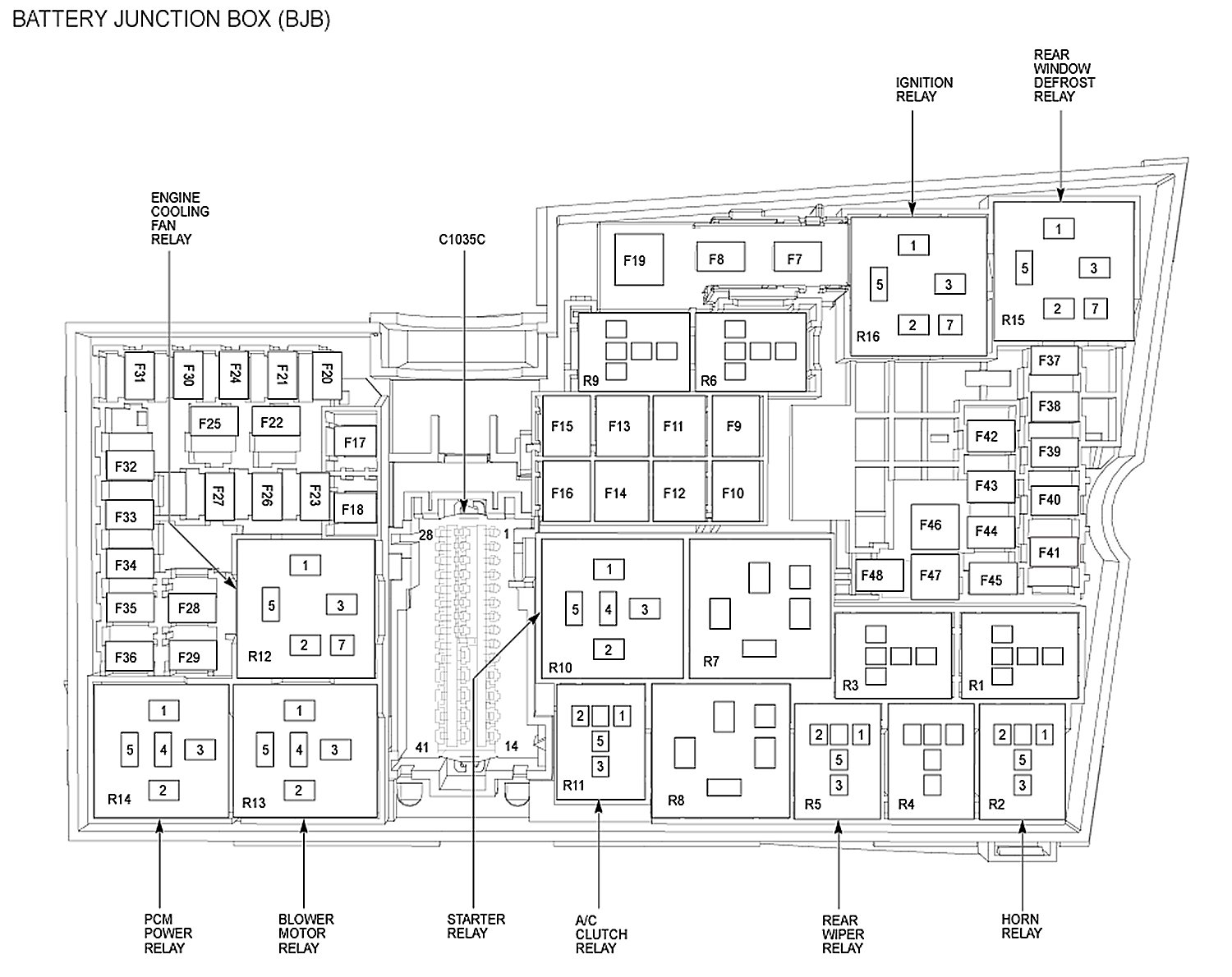

Battery Junction Box / Power Distribution Box

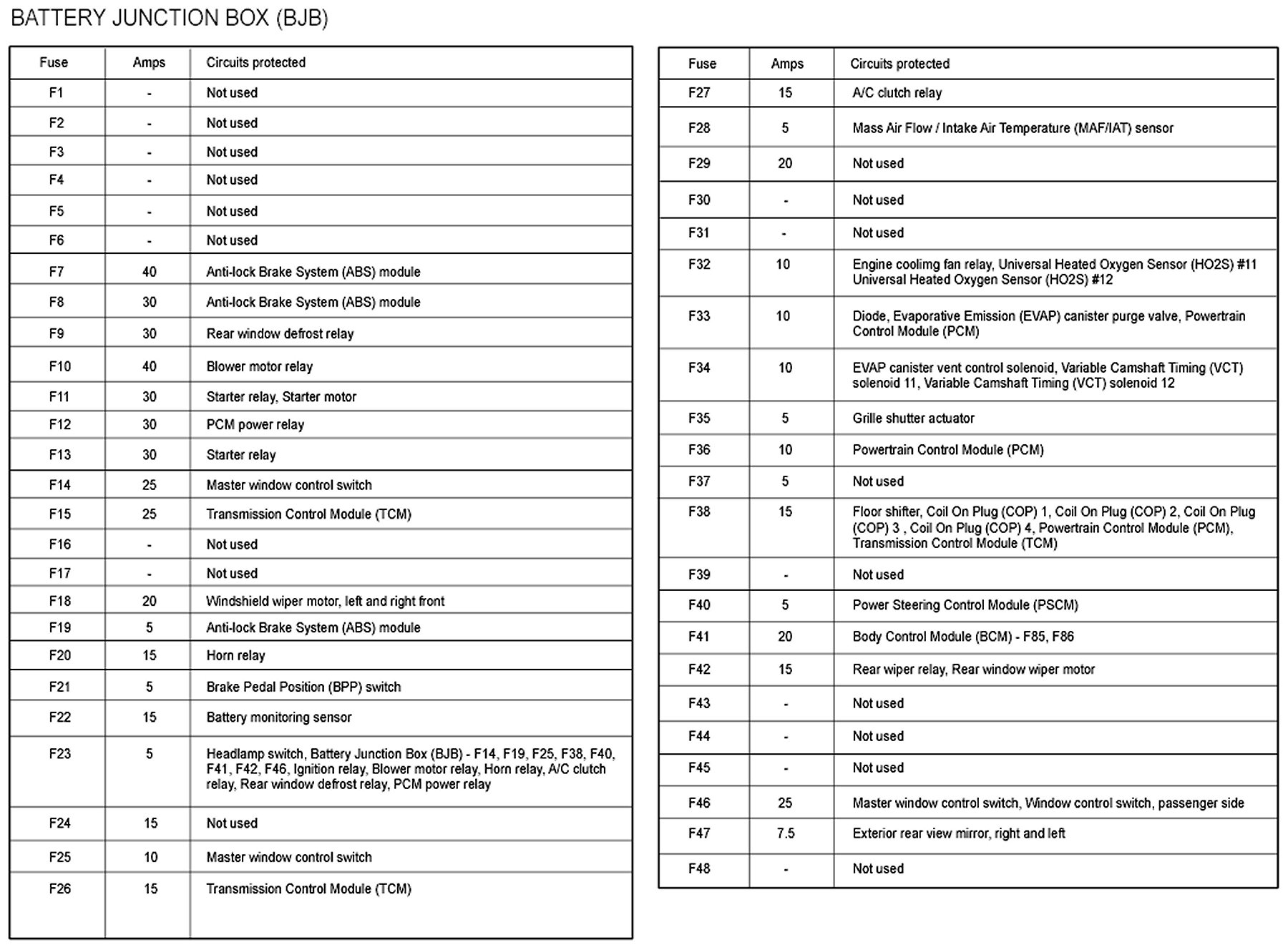

ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with the Power Distribution Box / Battery Junction Box (BJB).










Battery Junction Box/Power Distribution Box is located in the engine compartment.
