Automatic Transmission - DPS6




Automatic Transmission - DPS6

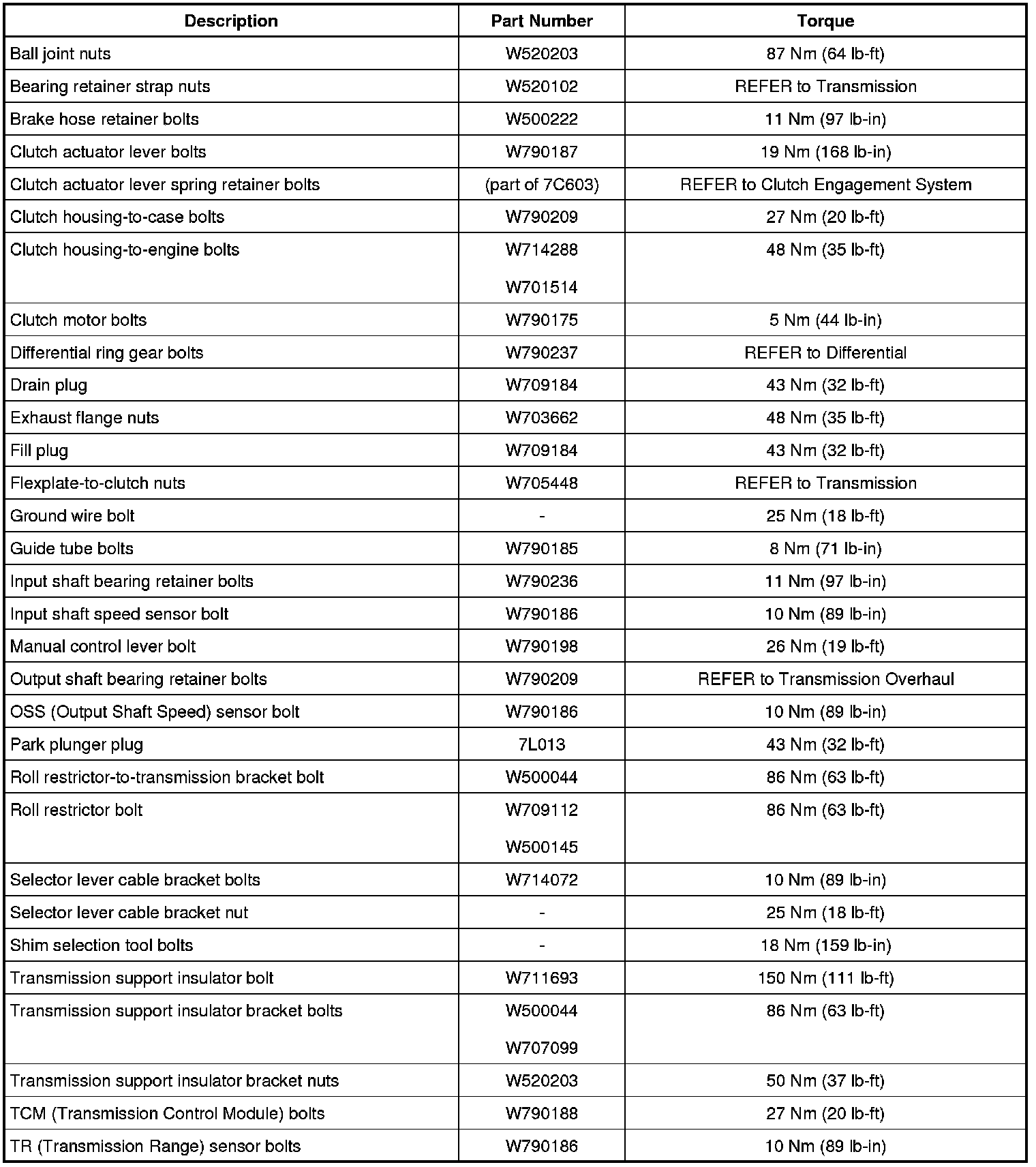

Torque Specifications

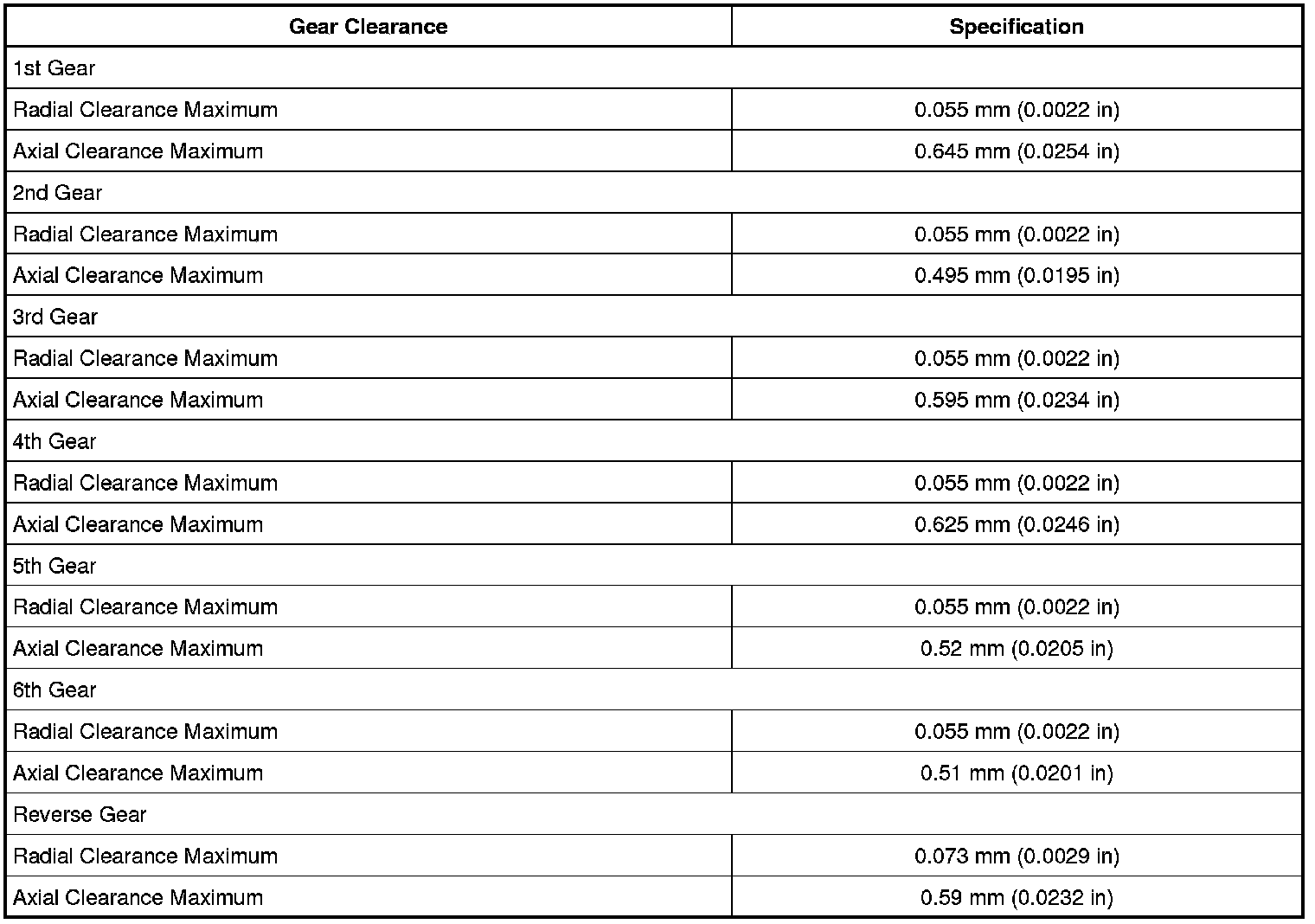

General Specifications

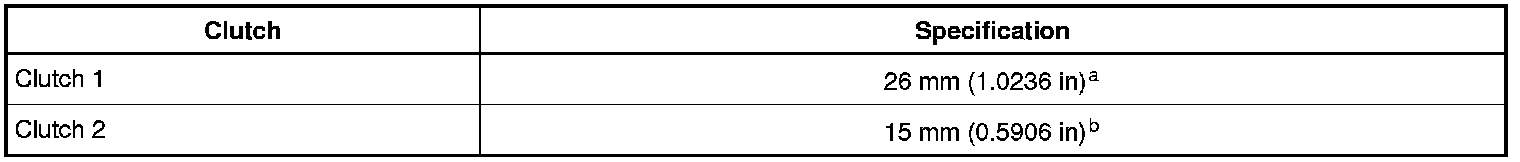

General Specifications





a Maximum after clutch reset

b Maximum after clutch reset

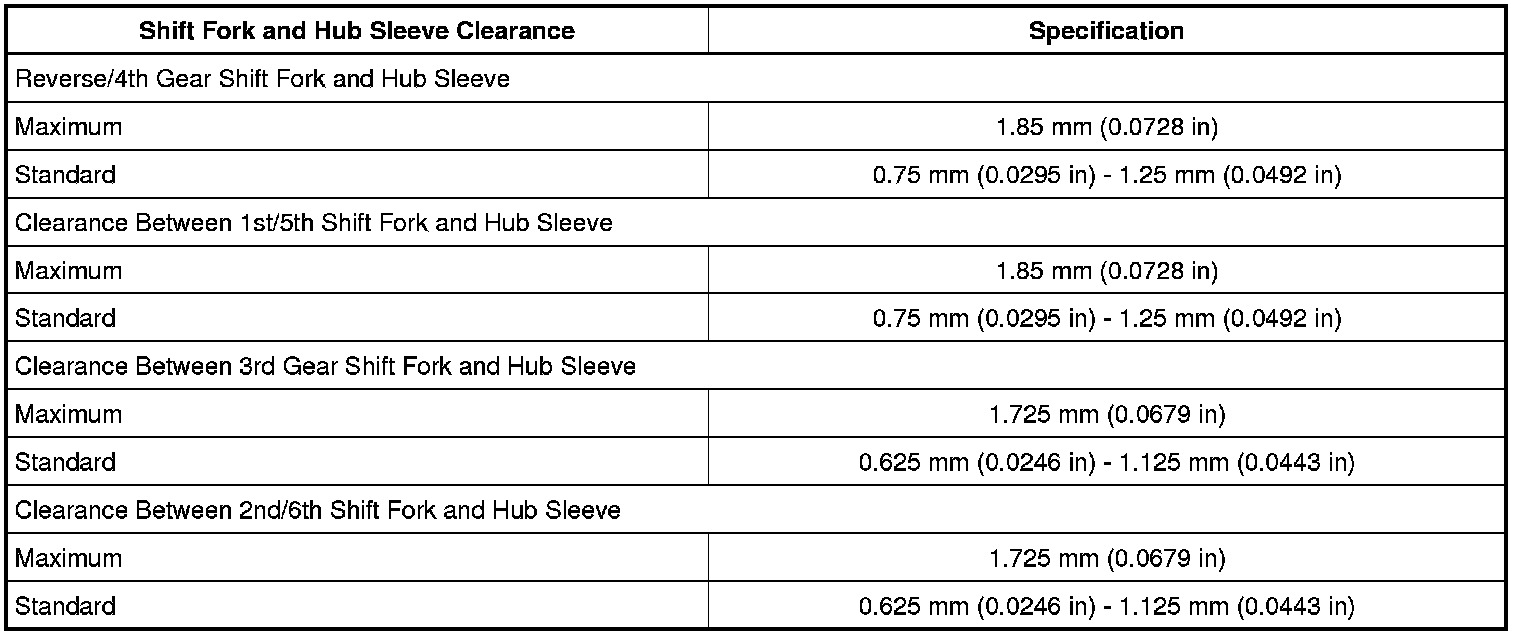

General Specifications

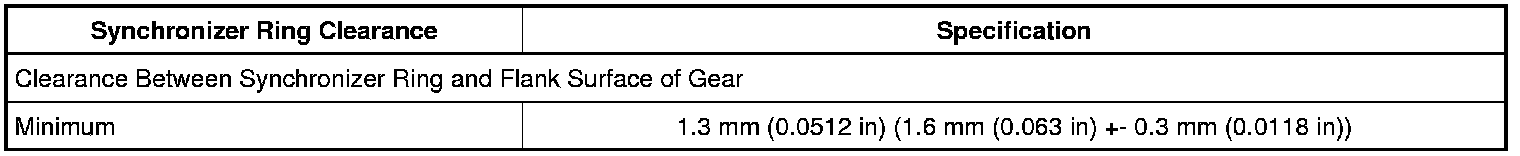

General Specifications





General Specifications

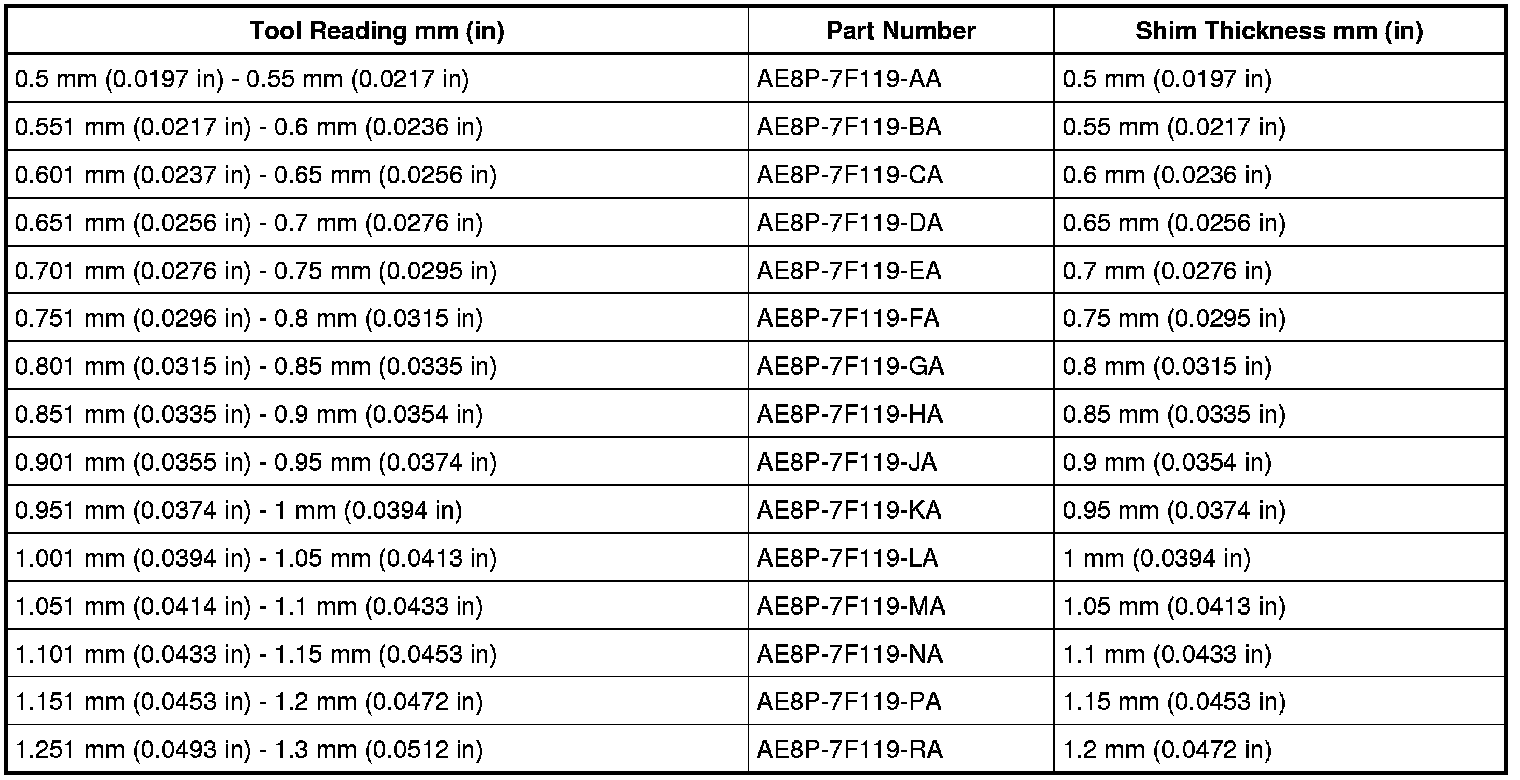

Differential Shim Selection Chart

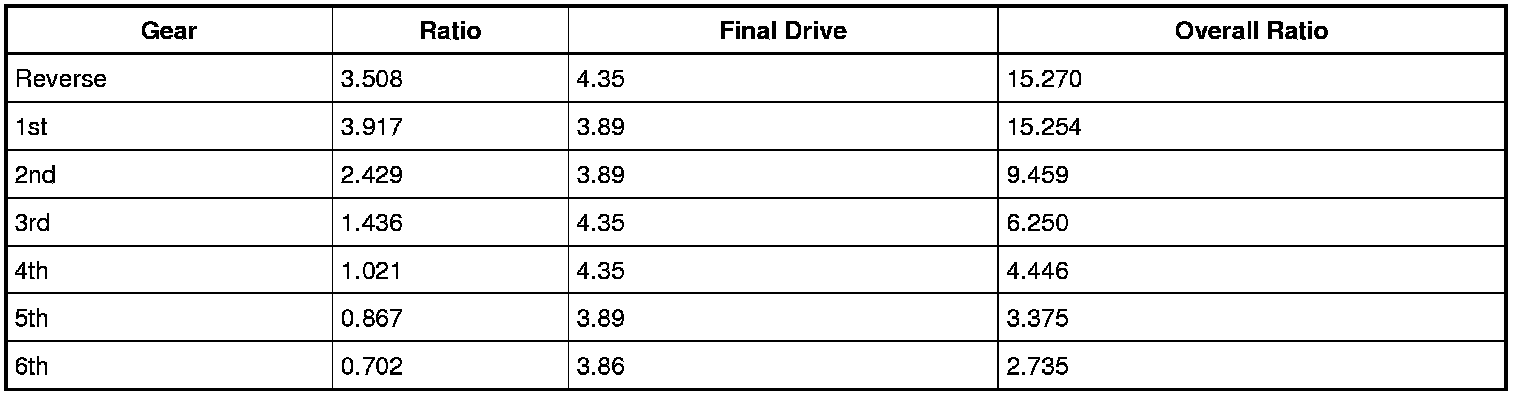

Gear Ratio Chart

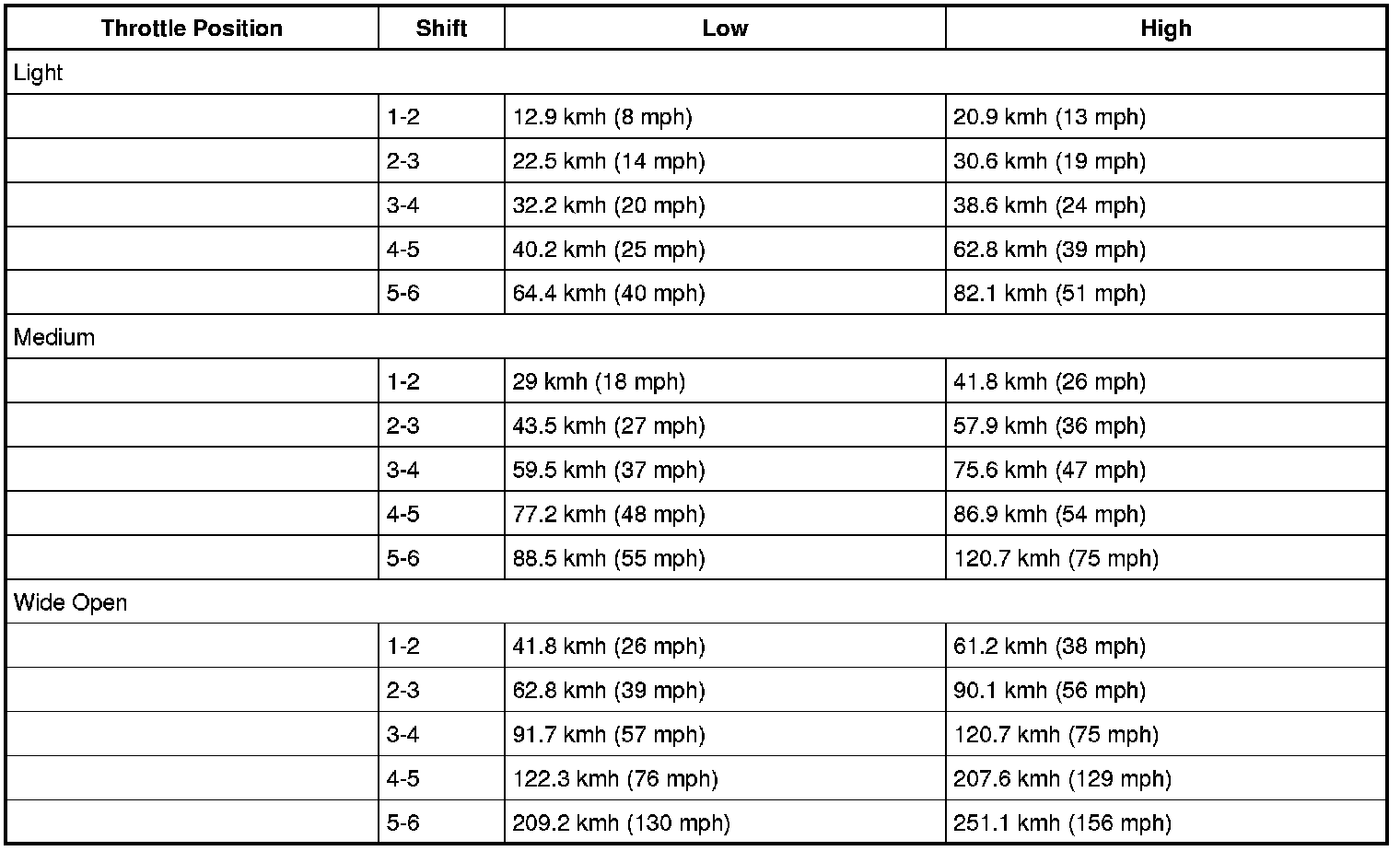

Shift Speeds Chart
