Crankshaft Main Bearing

MAIN BEARING CAP




Tighten the 10 original main bearing beam bolts in the sequence shown in 3 stages:
Stage 1: Tighten to 5 Nm (44 lb-in).
Stage 2: Tighten to 25 Nm (18 lb-ft).
Stage 3: Tighten an additional 90 degrees.

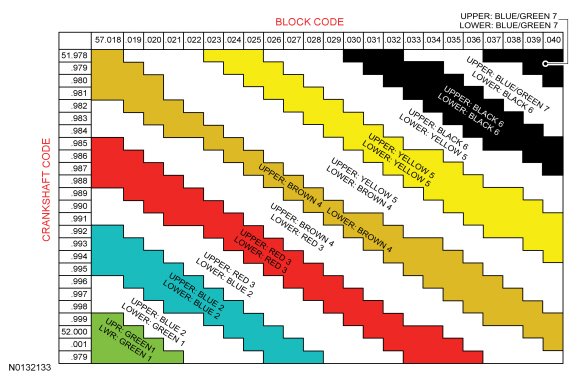

Crankshaft main bearing chart






Connecting rod bearing chart
