Start / Stop Switch: Service and Repair

Start-Stop Switch

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

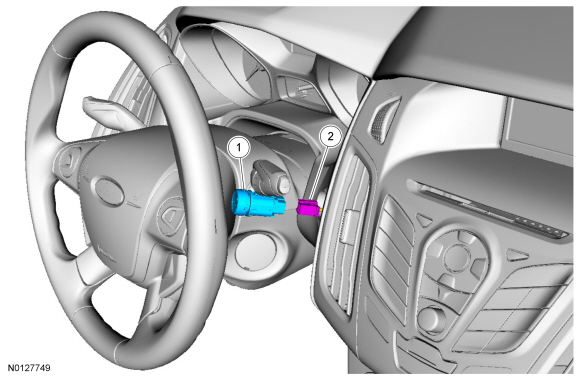

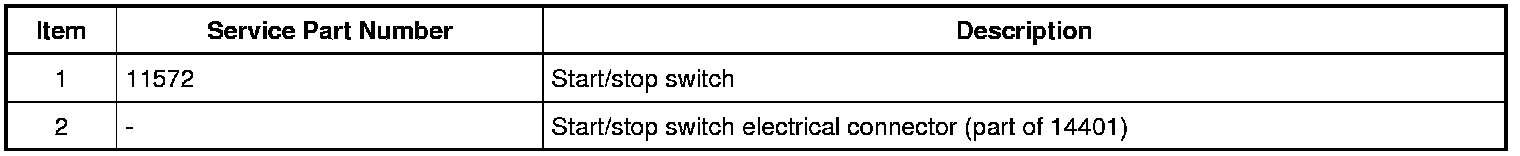

Exploded View










Removal

1. Remove the instrument panel steering column cover trim panel and the steering column cover. REFER to Instrument Panel - Exploded View .

2. From behind the instrument panel, release the 2 start/stop switch tabs and push the start/stop switch out of the instrument panel bezel.





3. Disconnect the start/stop switch electrical connector and remove the start/stop switch.

Installation

1. Connect the start/stop switch electrical connector.

2. Install the start/stop switch into the instrument panel bezel making sure that the start/stop switch tabs are fully engaged.





3. Install the instrument panel steering column cover trim panel and the steering column cover. REFER to Instrument Panel - Exploded View .
