without Door Modules (without Window One-touch Up)

Window Control Switch

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

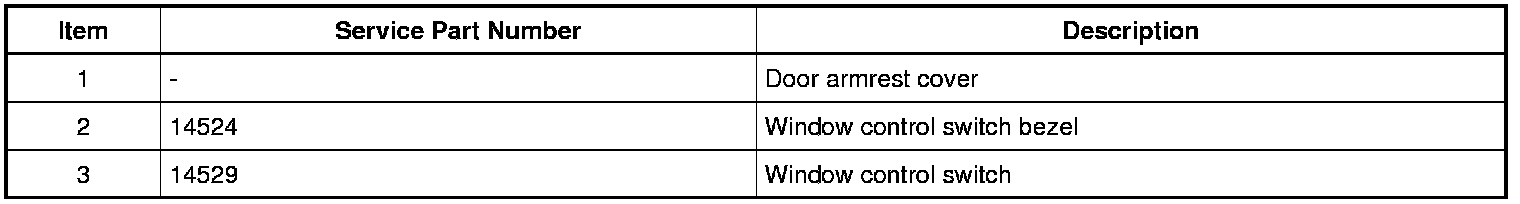

Exploded View

Master window control switch shown, all others similar.










Removal

1. NOTE: Removal steps in this procedure may contain installation details.

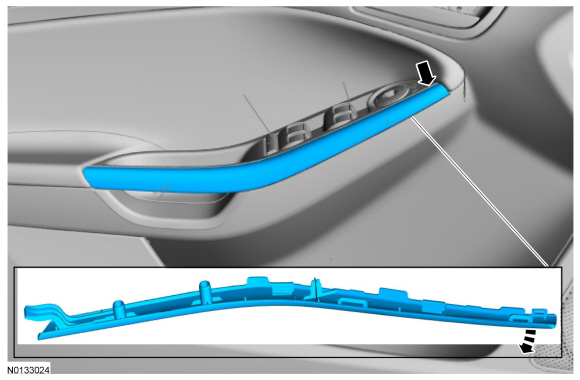

NOTICE: Use a plastic tool to remove the door armrest cover. Metal tools may damage the trim panel.

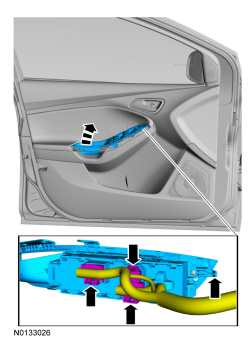

2. NOTICE: Use a plastic tool to remove the window switch. Metal tools may damage the trim panel.

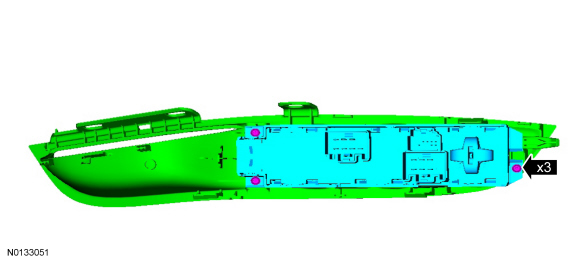

3.





Installation

1. 1.To install, reverse the removal procedure.
