Battery and Battery Tray - Exploded View




Battery and Battery Tray - Exploded View

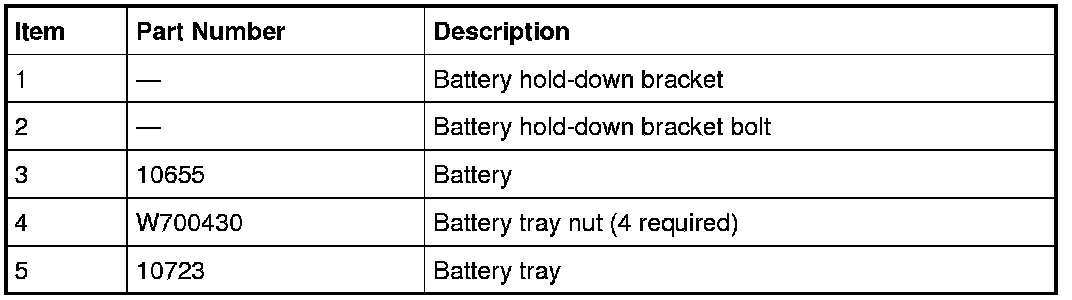

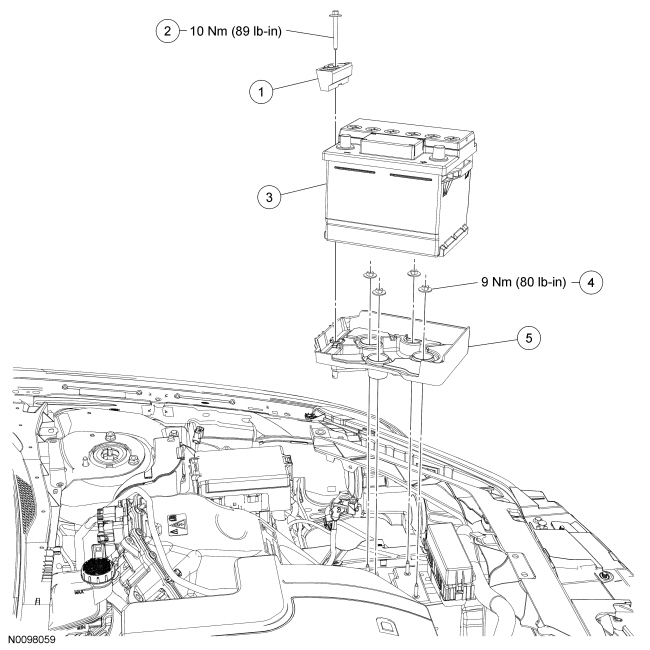

Battery and Battery Tray, Hybrid Vehicles

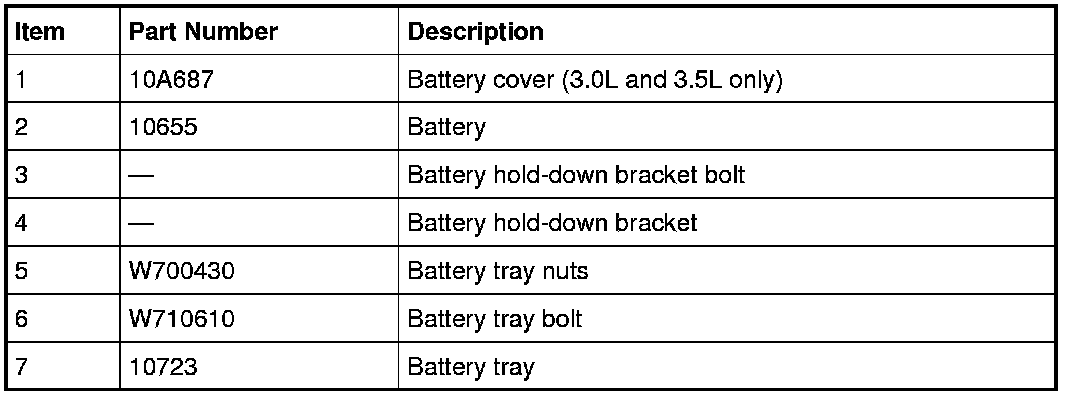

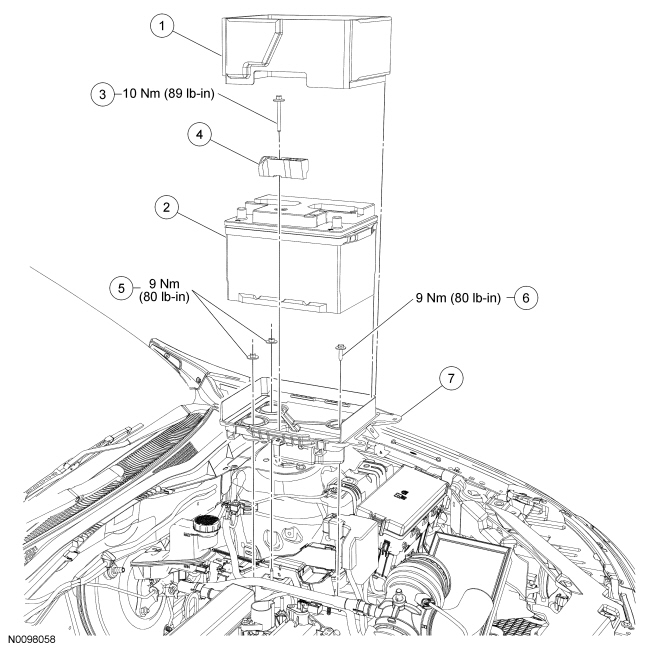

Battery and Battery Tray, All Other Vehicles

NOTE: 3.0L and 3.5L engine shown, 2.5L similar.
