Humidity Sensor: Service and Repair

In-Vehicle Temperature and Humidity Sensor - Hybrid









Removal and Installation

1. Remove the instrument cluster finish panel.

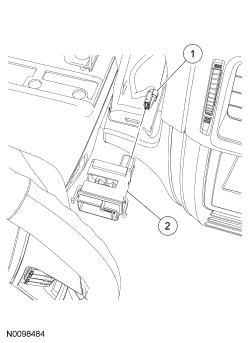

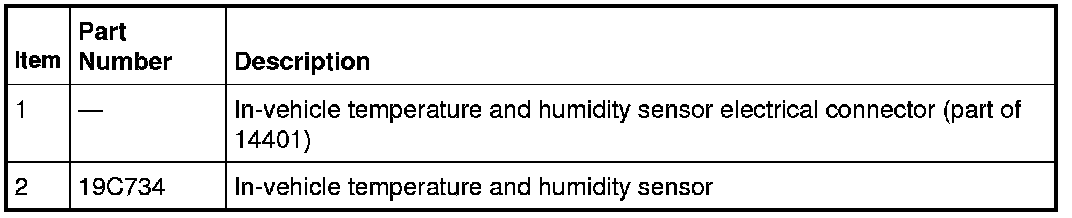

2. Disconnect the in-vehicle temperature and humidity sensor electrical connector.

3. Remove the in-vehicle temperature and humidity sensor.

4. To install, reverse the removal procedure.
