Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor

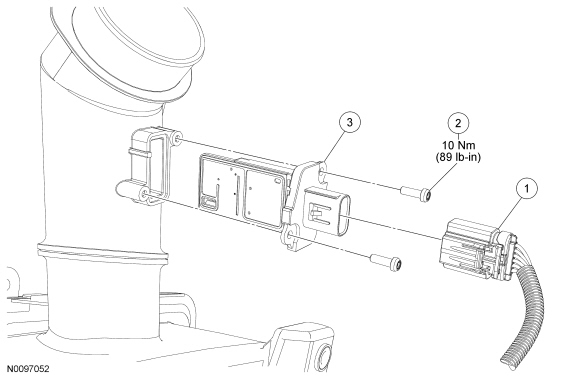

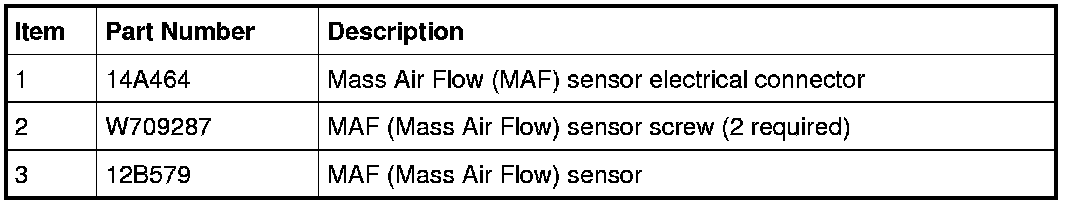

Removal and Installation

1. Remove the Air Cleaner (ACL) outlet pipe.

2. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

3. Remove the 2 screws and the MAF (Mass Air Flow) sensor.
- To install, tighten to 10 Nm (89 lb-in).


4. To install, reverse the removal procedure.
