Continuously Variable Transmission/Transaxle, CVT
Specifications

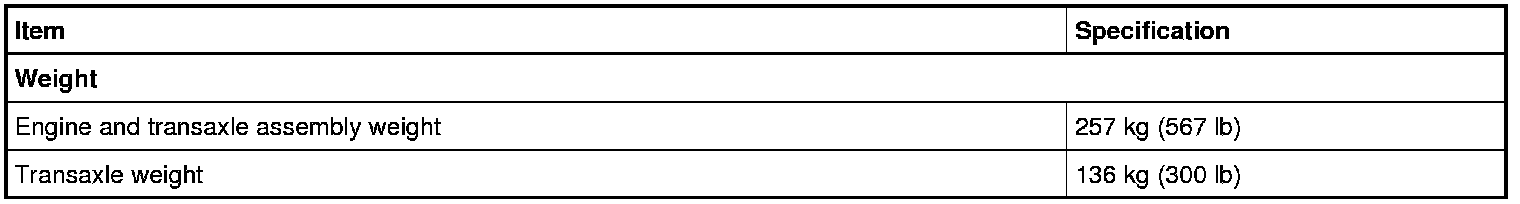

General Specifications

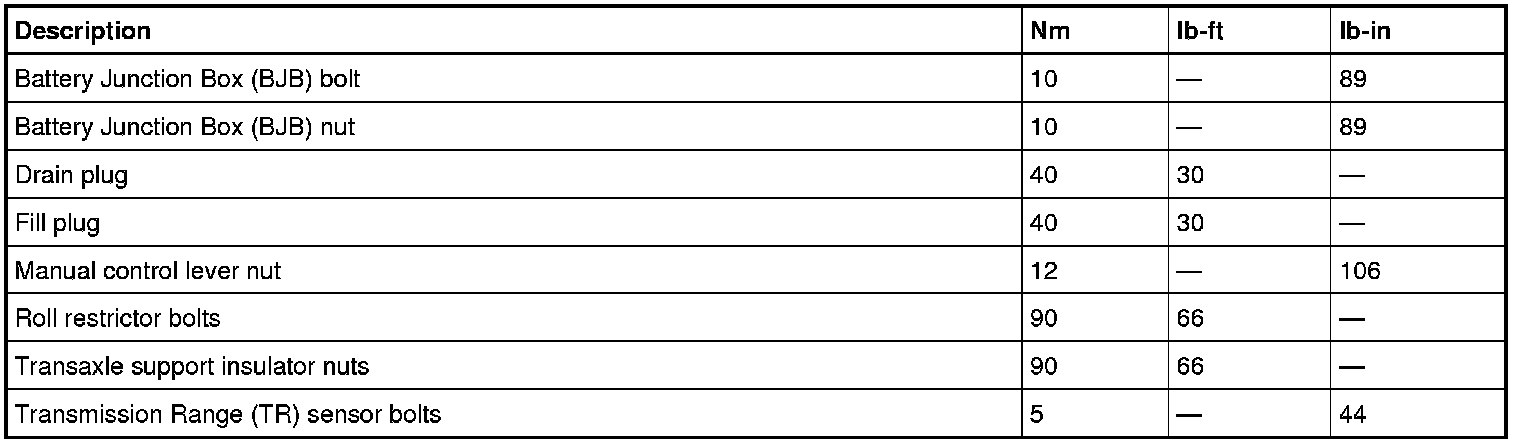

Torque Specifications
