Connector Locations

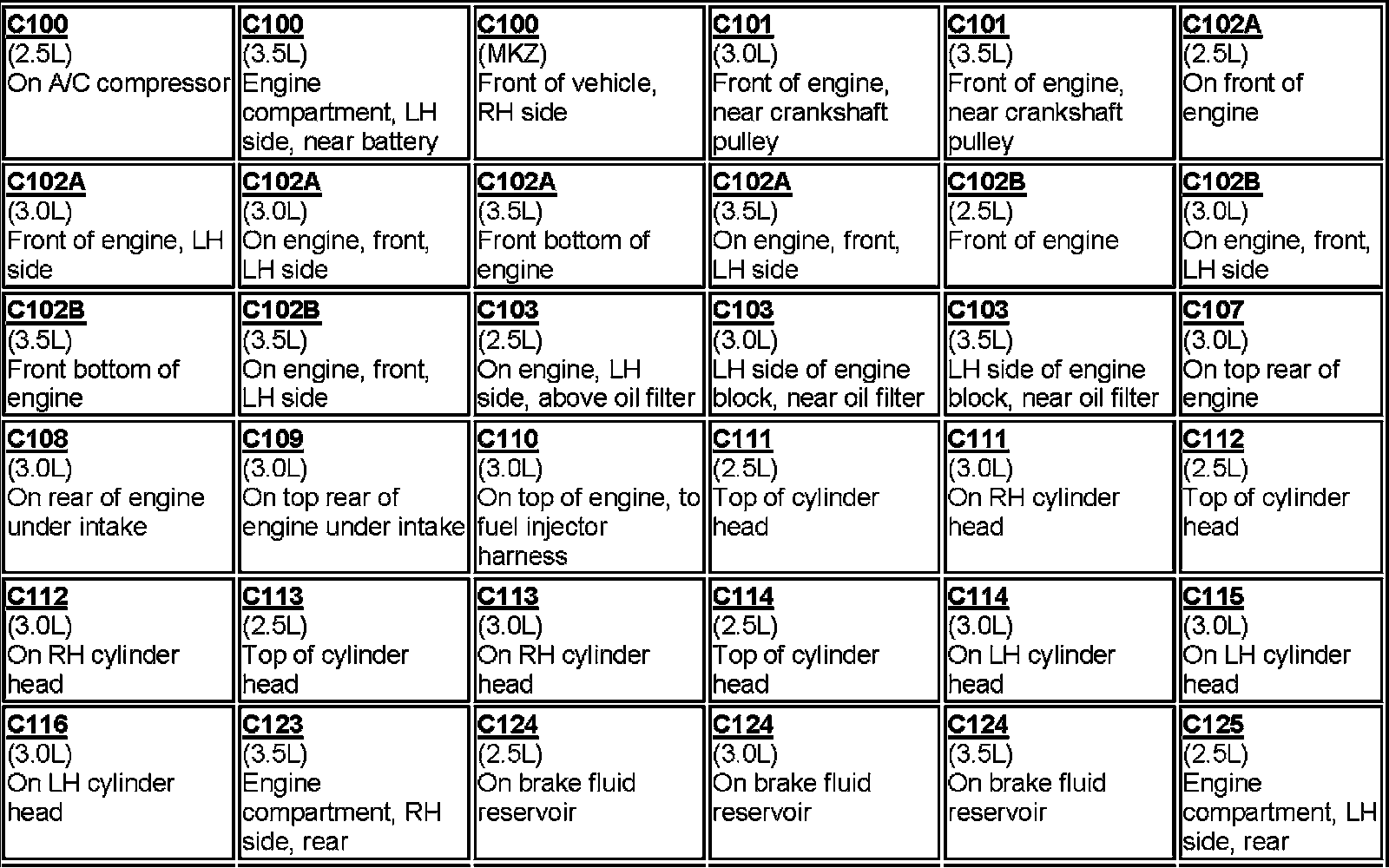

C100-C125:

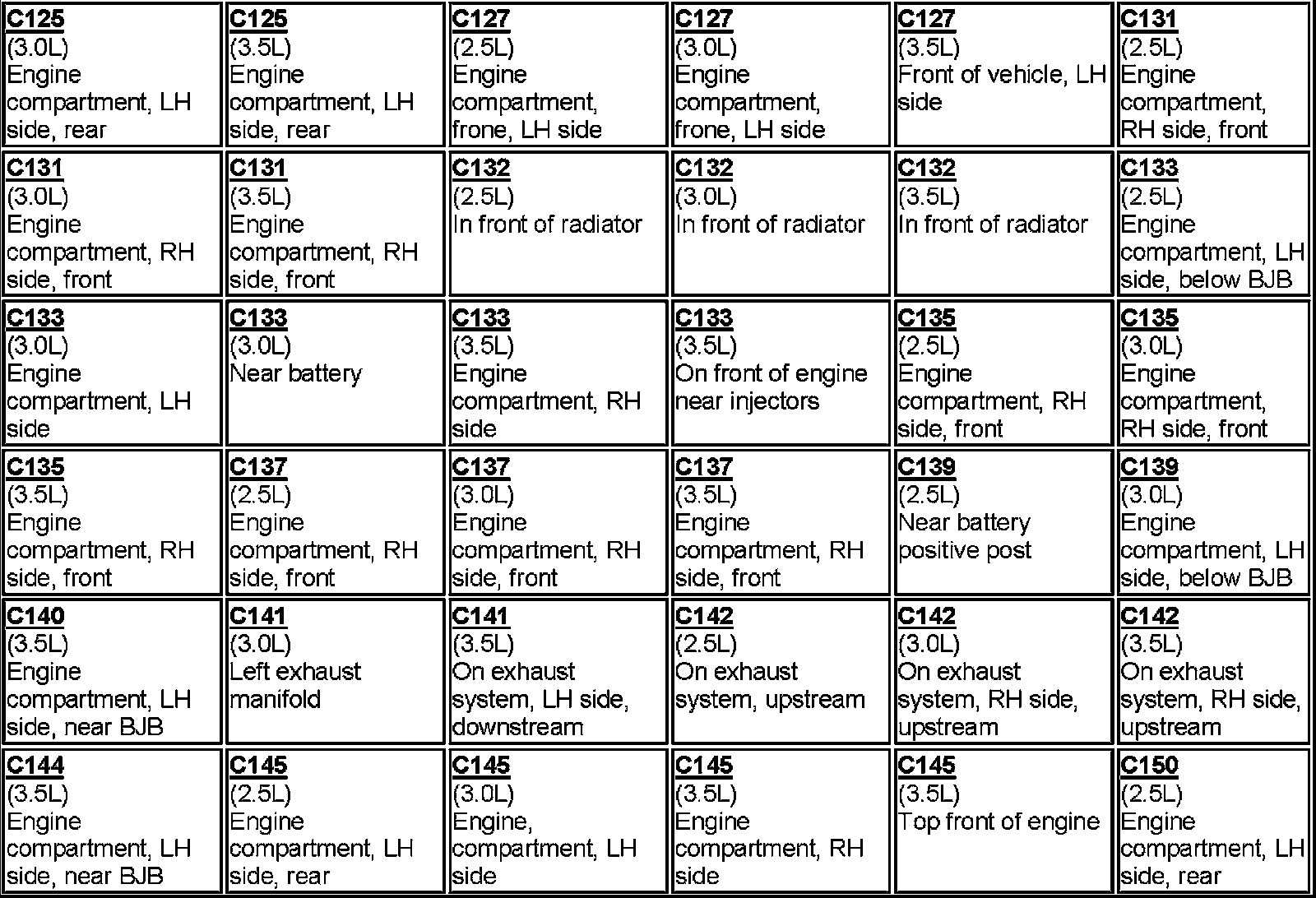

C125-C150:

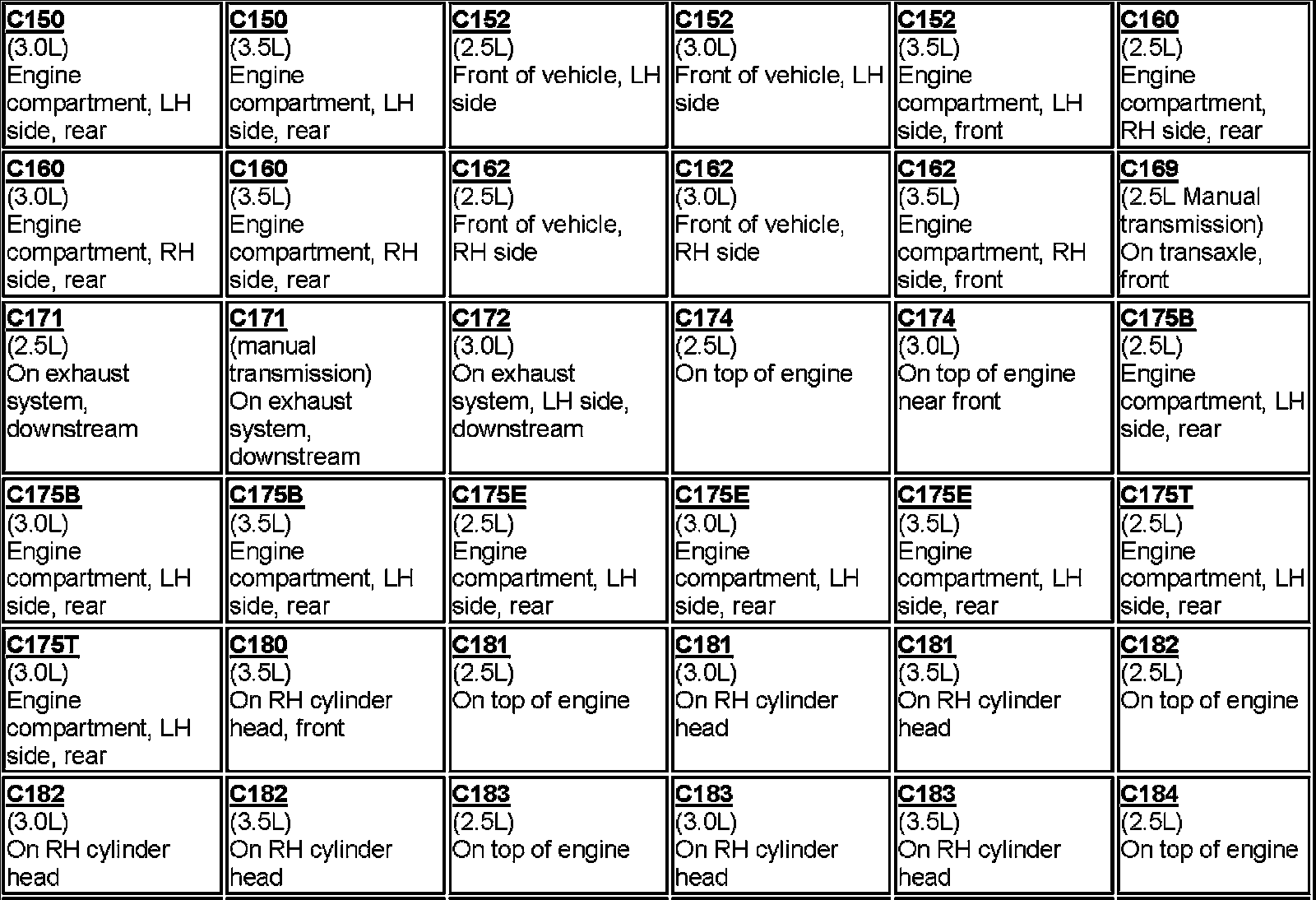

C150-C184:

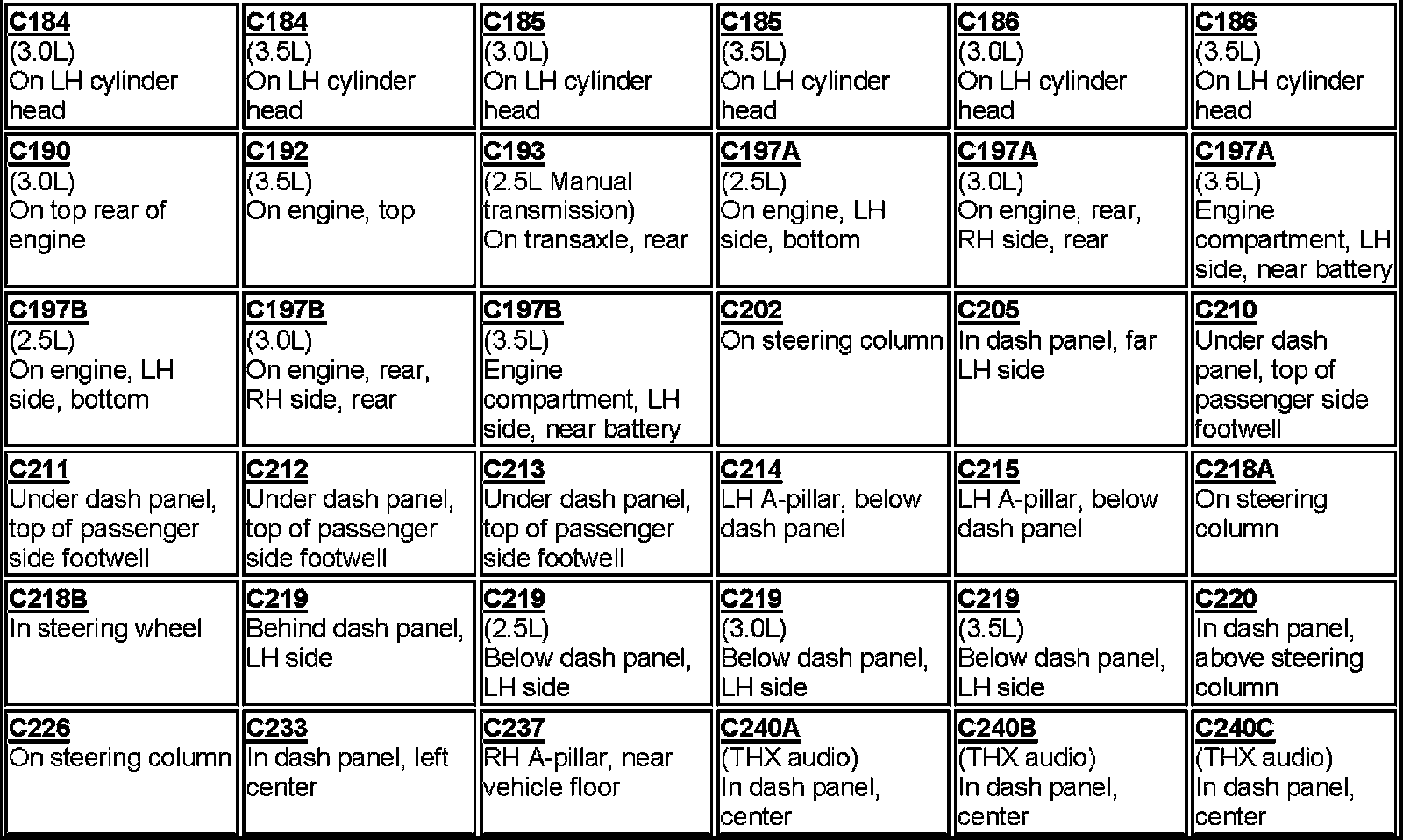

C184-C240C:

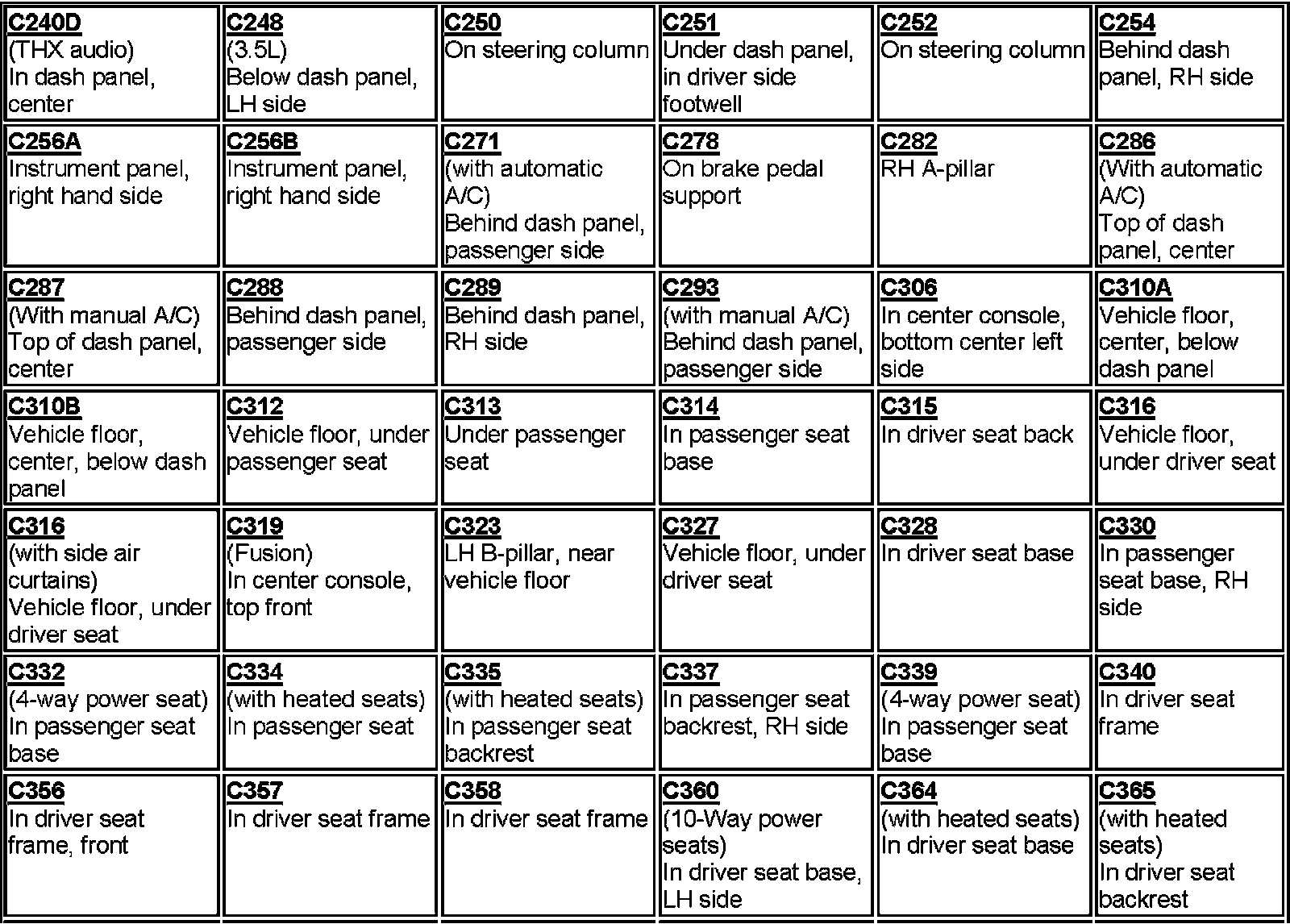

C240D-C365:

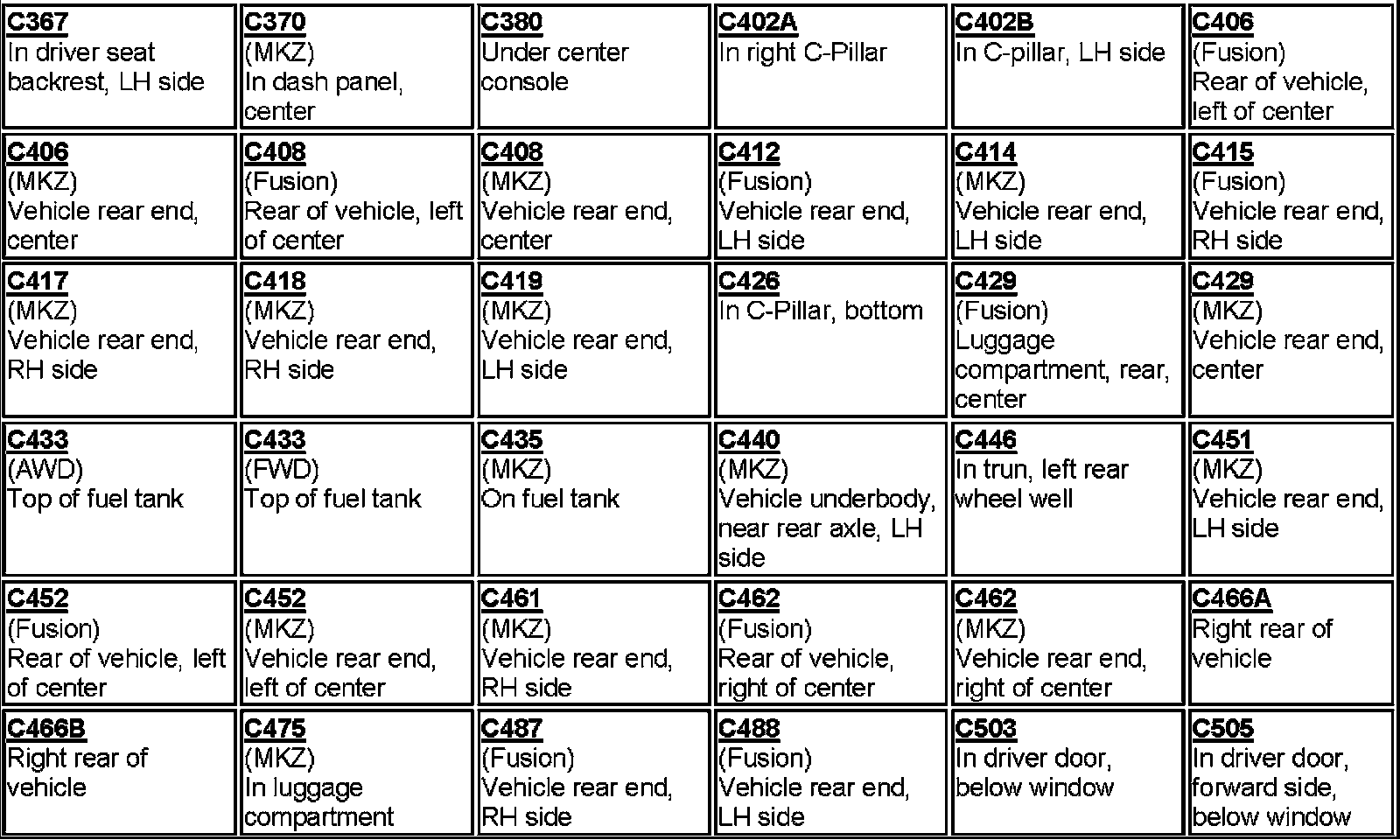

C367-C505:

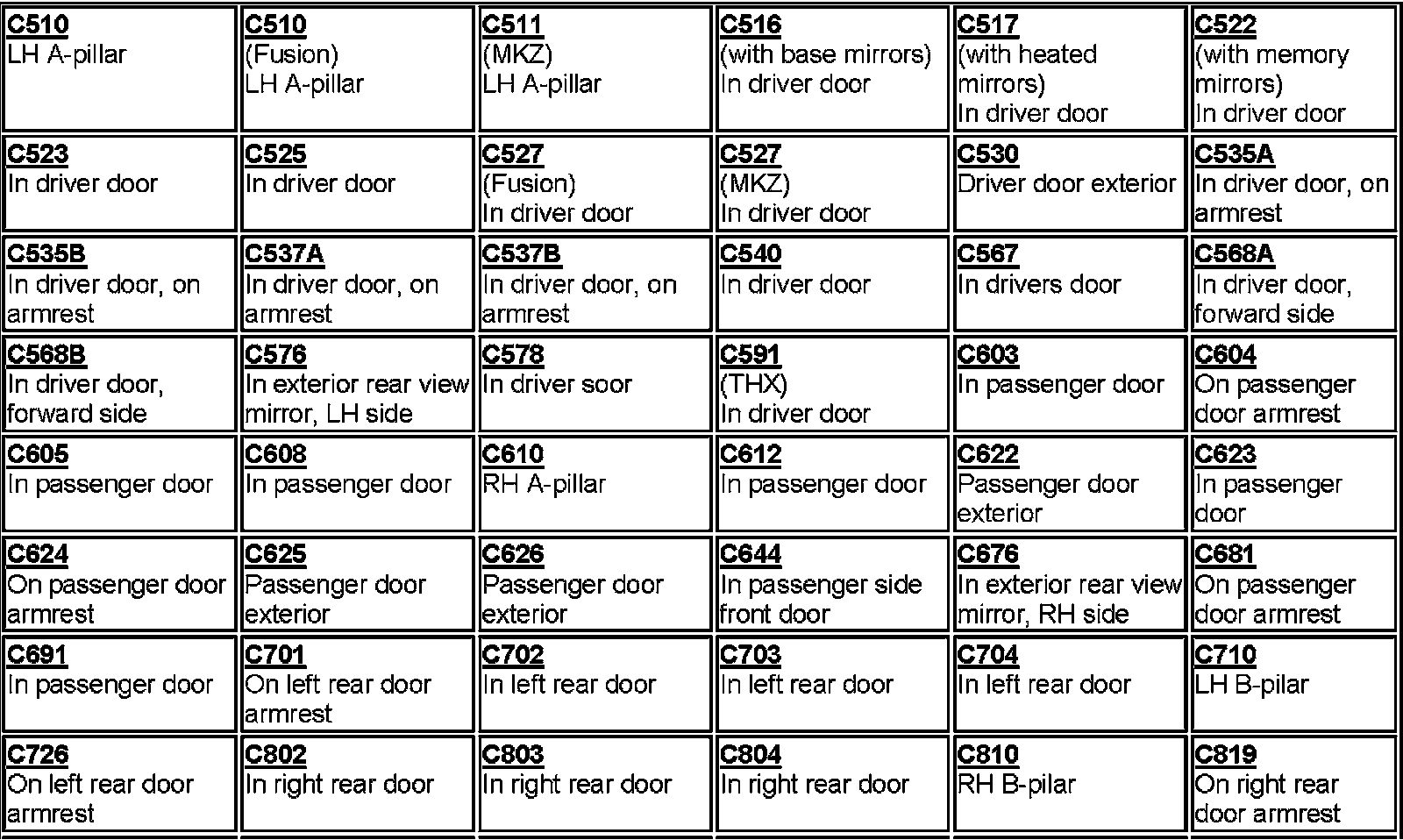

C510-C819:

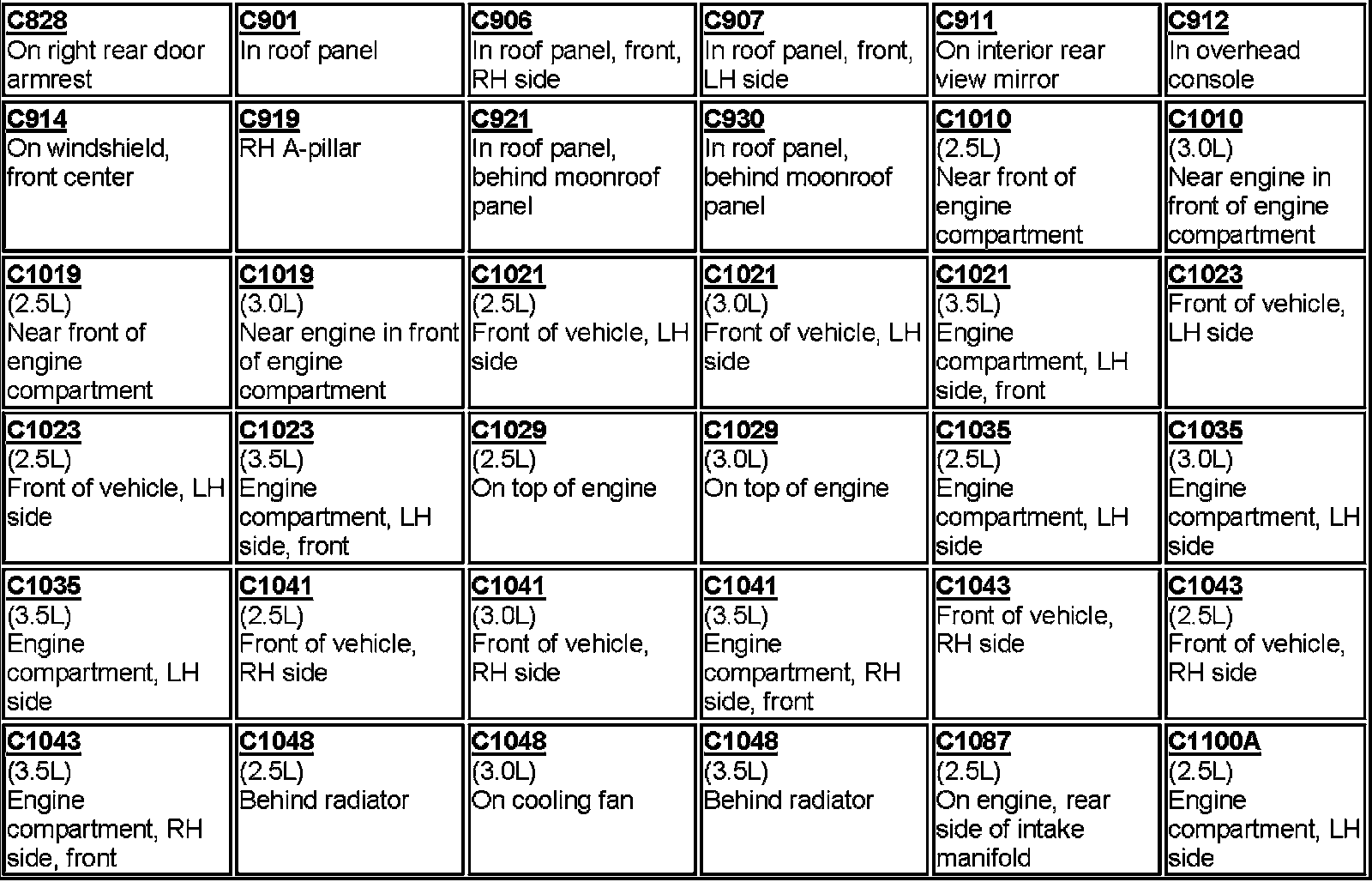

C828-C1100A:





C1100A-C1452:

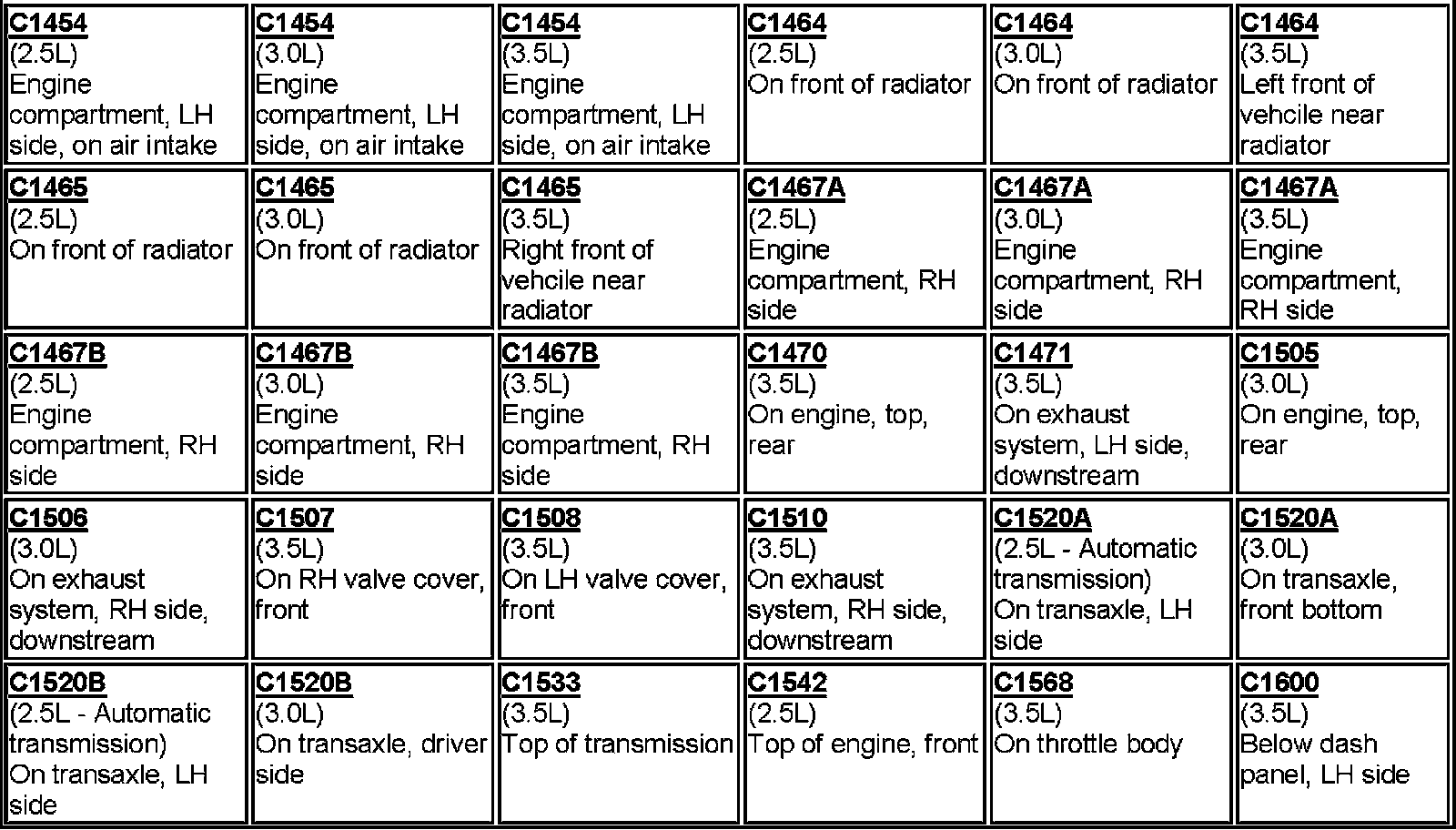

C1454-C1600:

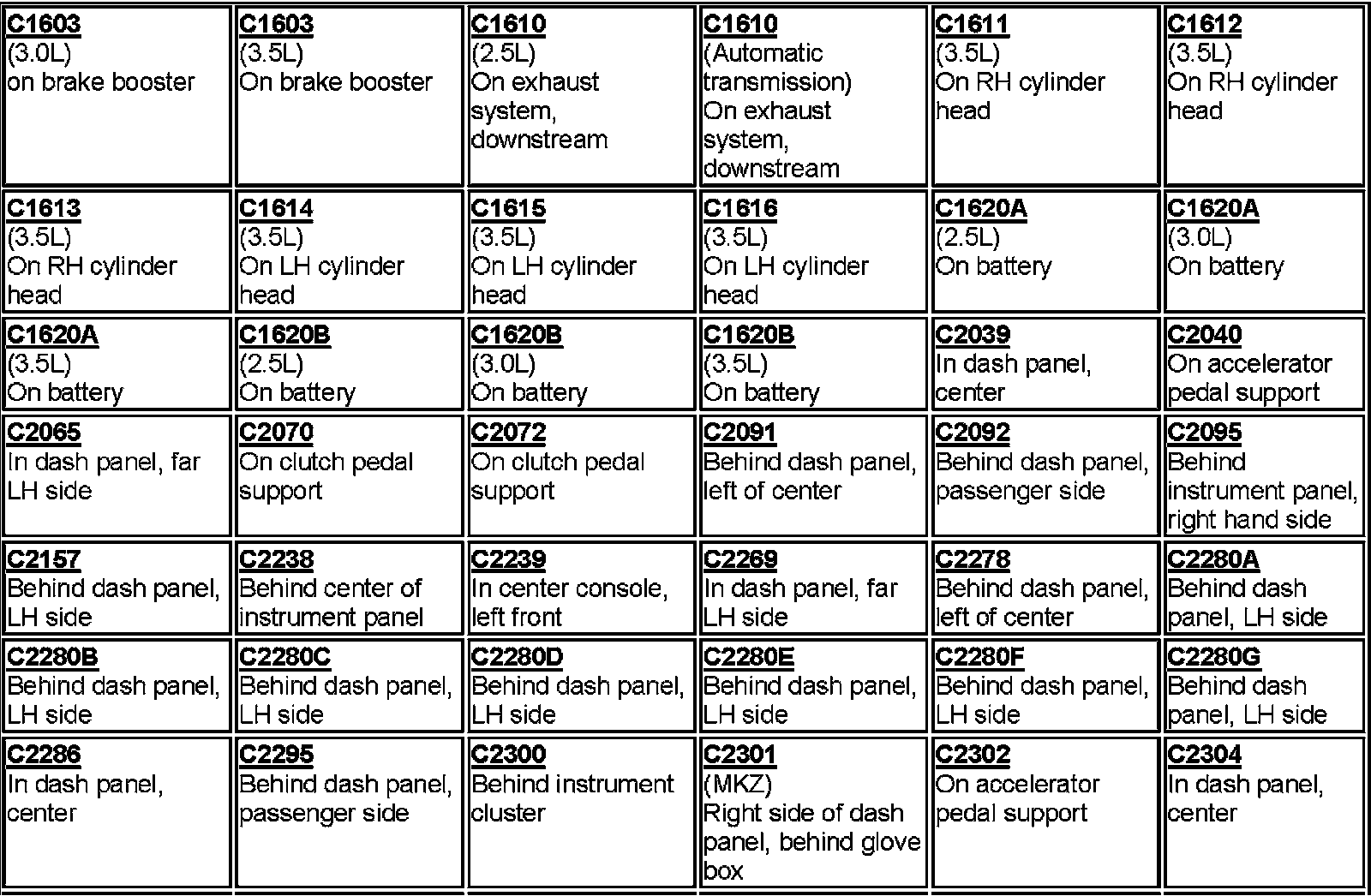

C1603-C2304:

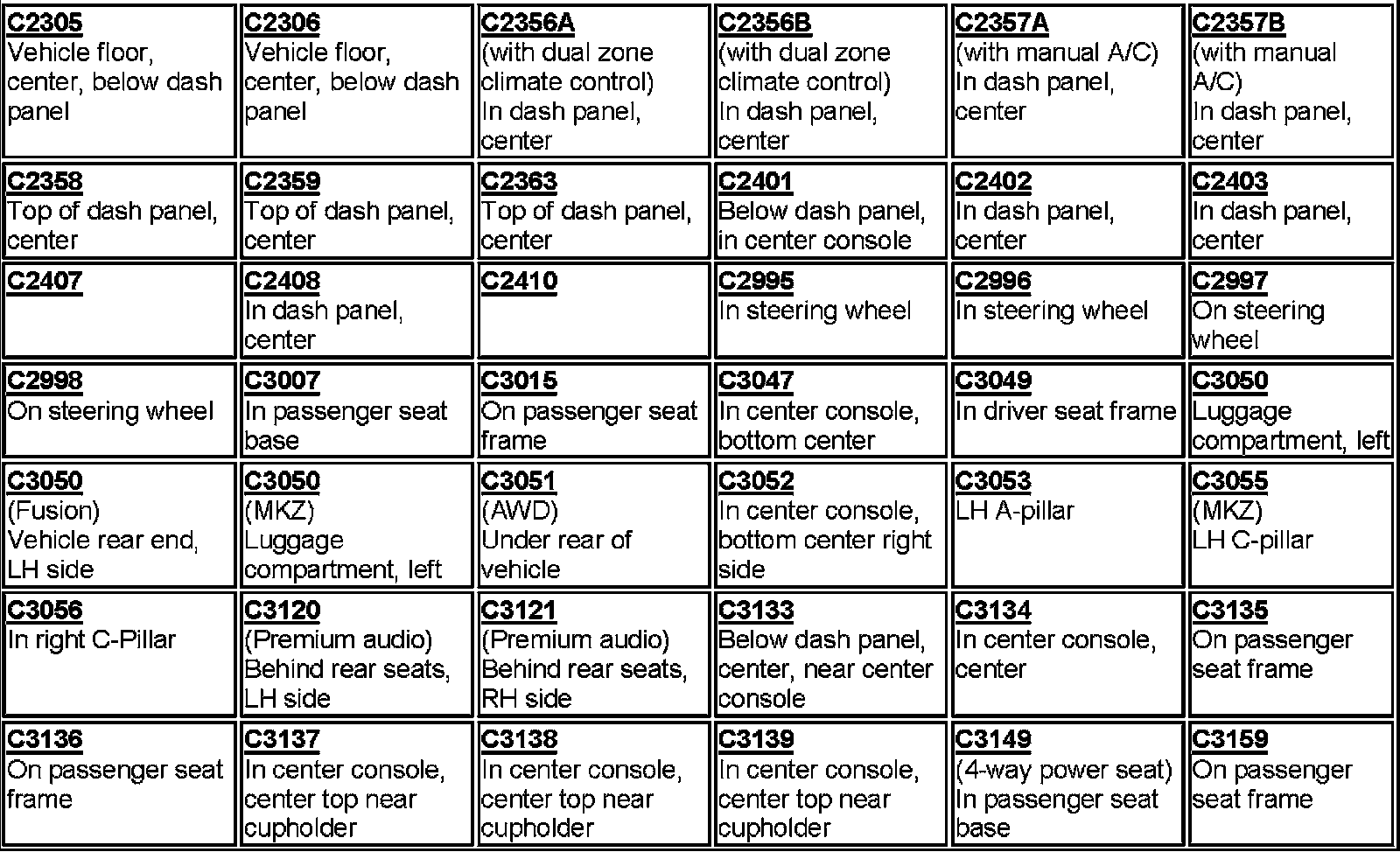

C2305-C3159:

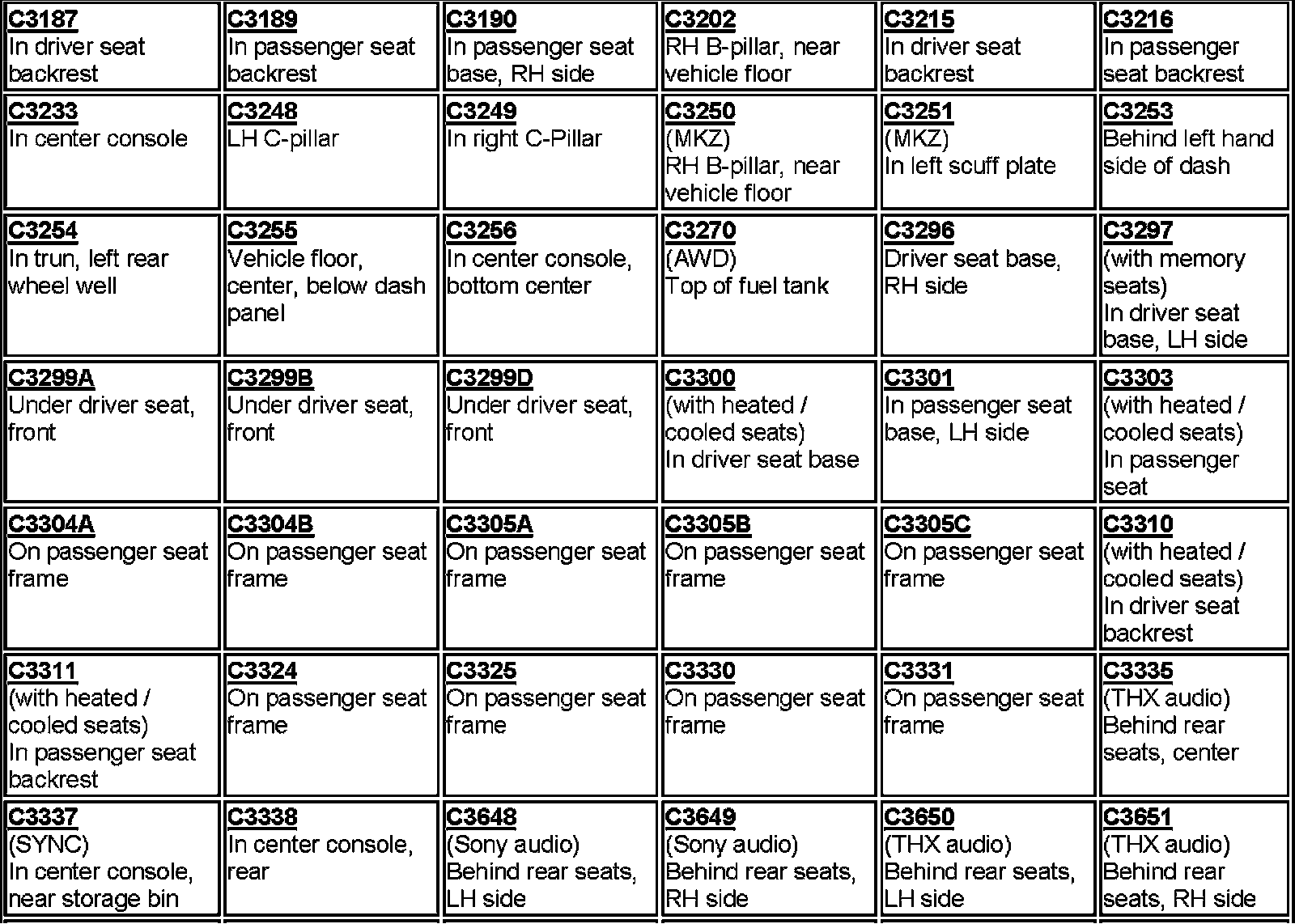

C3187-C3651:

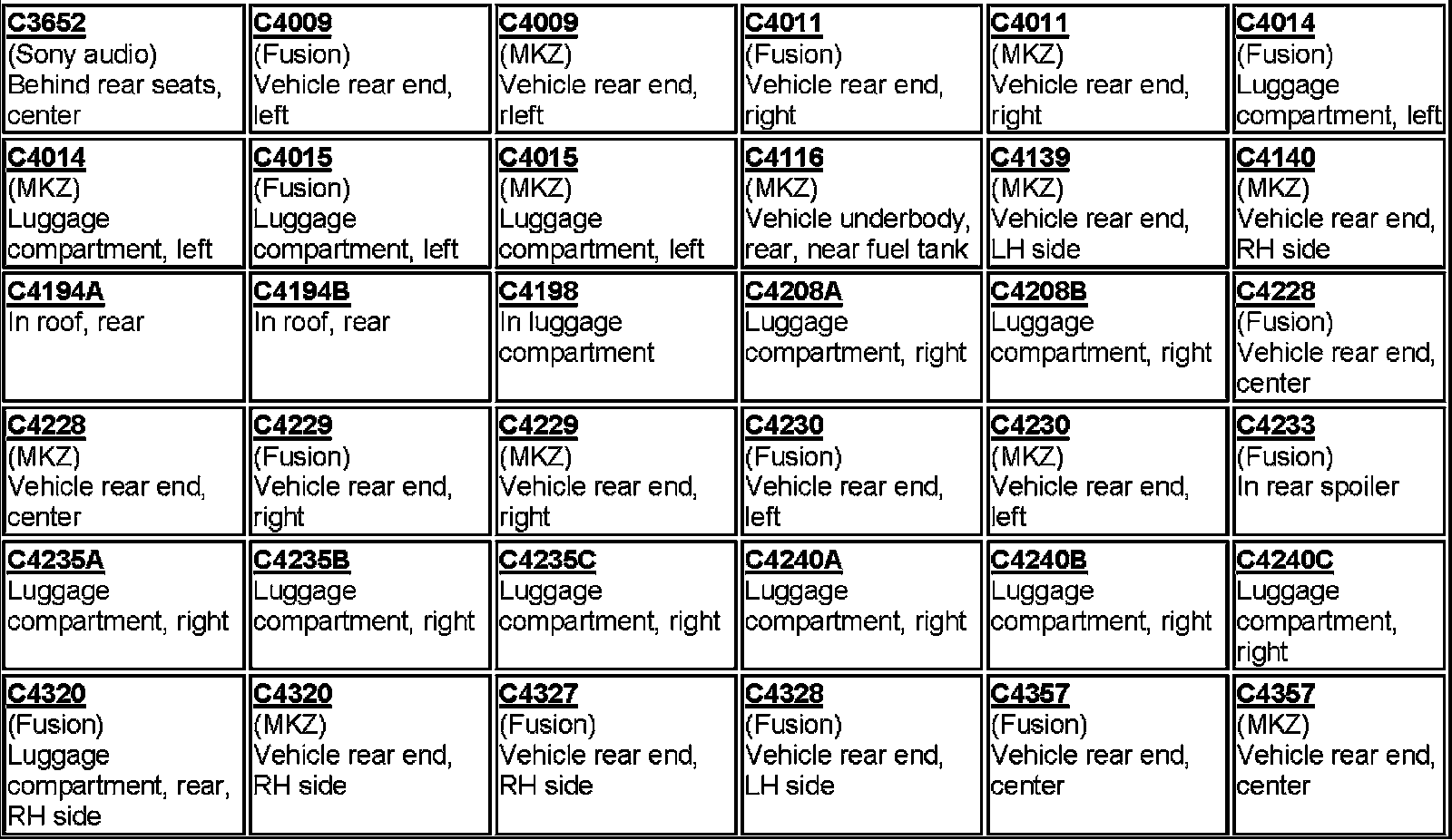

C3652-C4357:

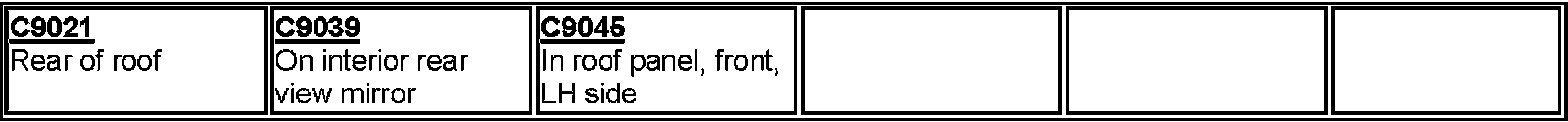

C9021-C9045:
