Fusion




Specifications

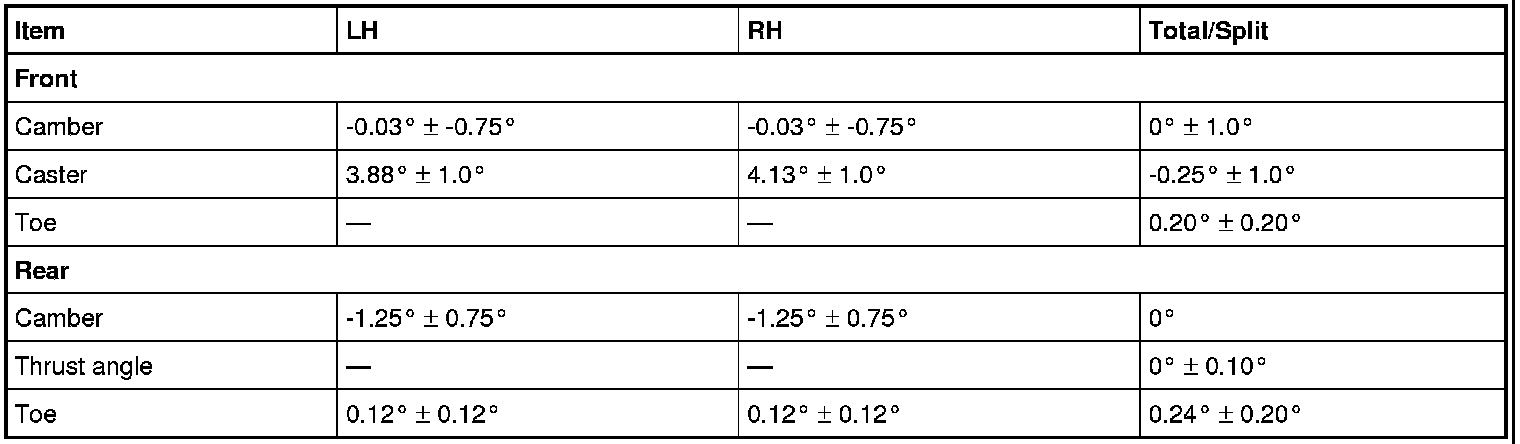

Alignment Specifications

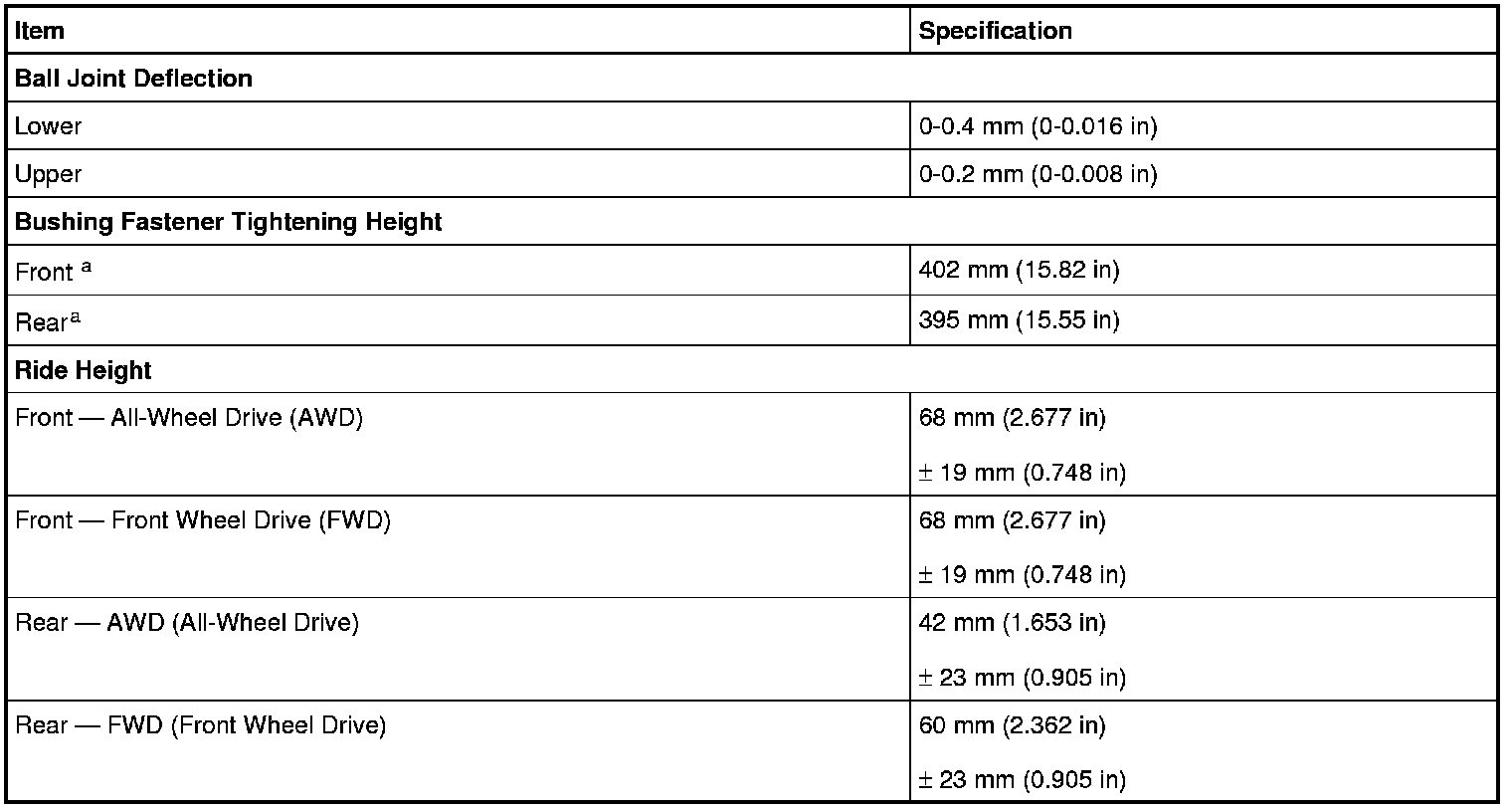

General Specifications





a Curb conditioning, full fluids (including fuel).

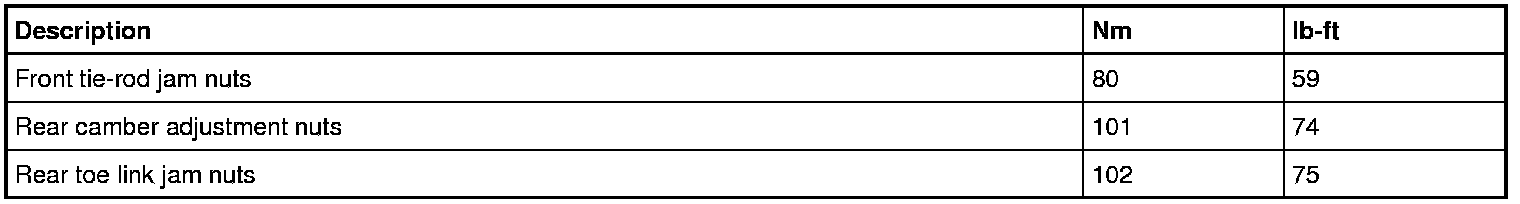

Torque Specifications
