Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure (MAP) Sensor













Removal and Installation

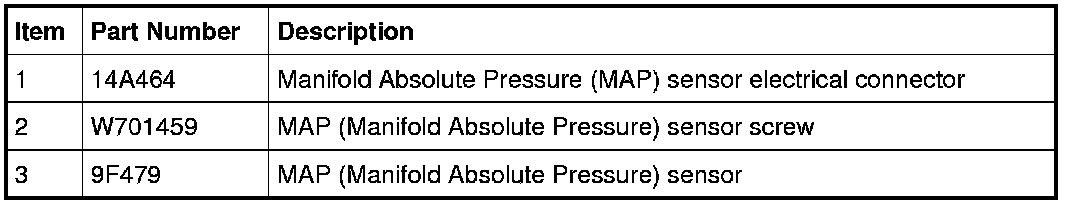

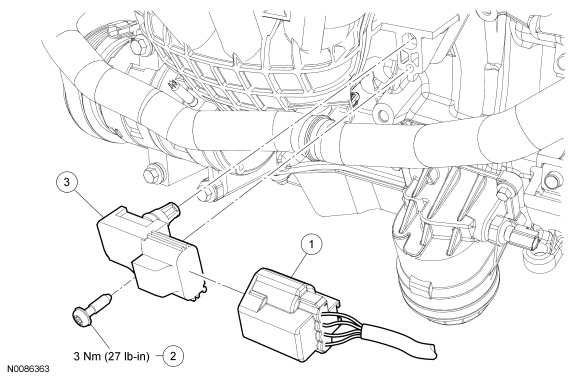

1. Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.

2. Remove the screw and the MAP (Manifold Absolute Pressure) sensor.
- To install, tighten to 3 Nm (27 lb-in).

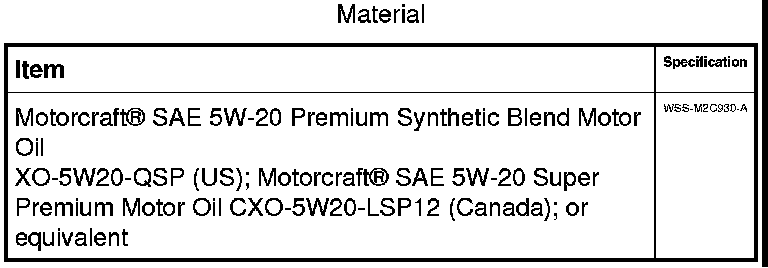

3. NOTE: Lubricate the MAP (Manifold Absolute Pressure) sensor O-ring seal with clean engine oil.
To install, reverse the removal procedure.
