Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View




Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

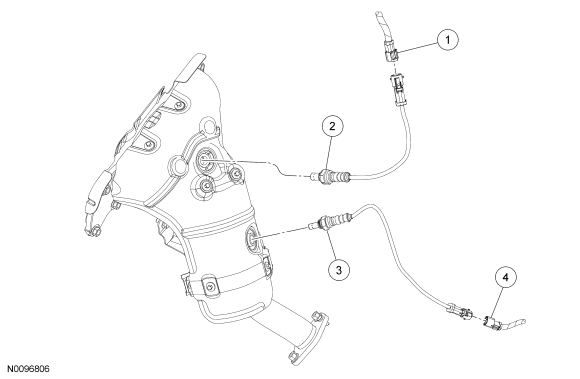

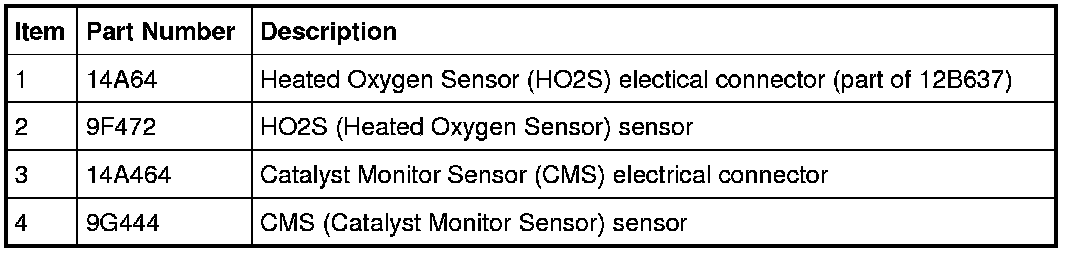

Non-Partial Zero Emissions Vehicle (PZEV)

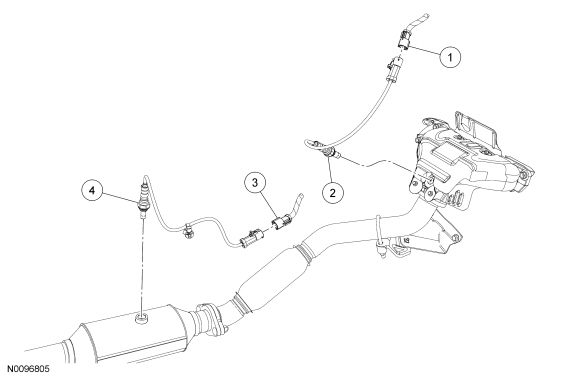

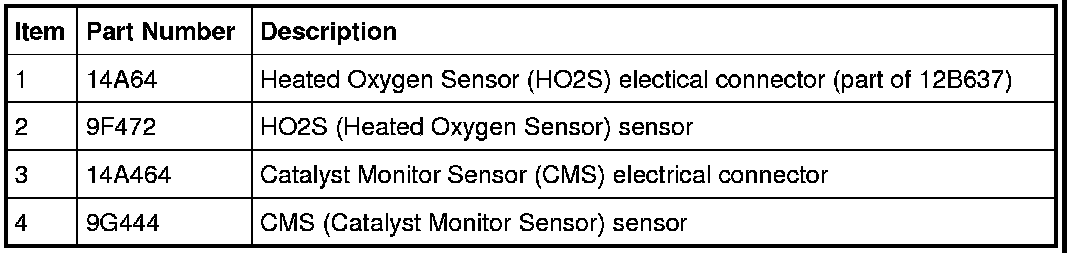

Partial Zero Emissions Vehicle (PZEV)
