All Others

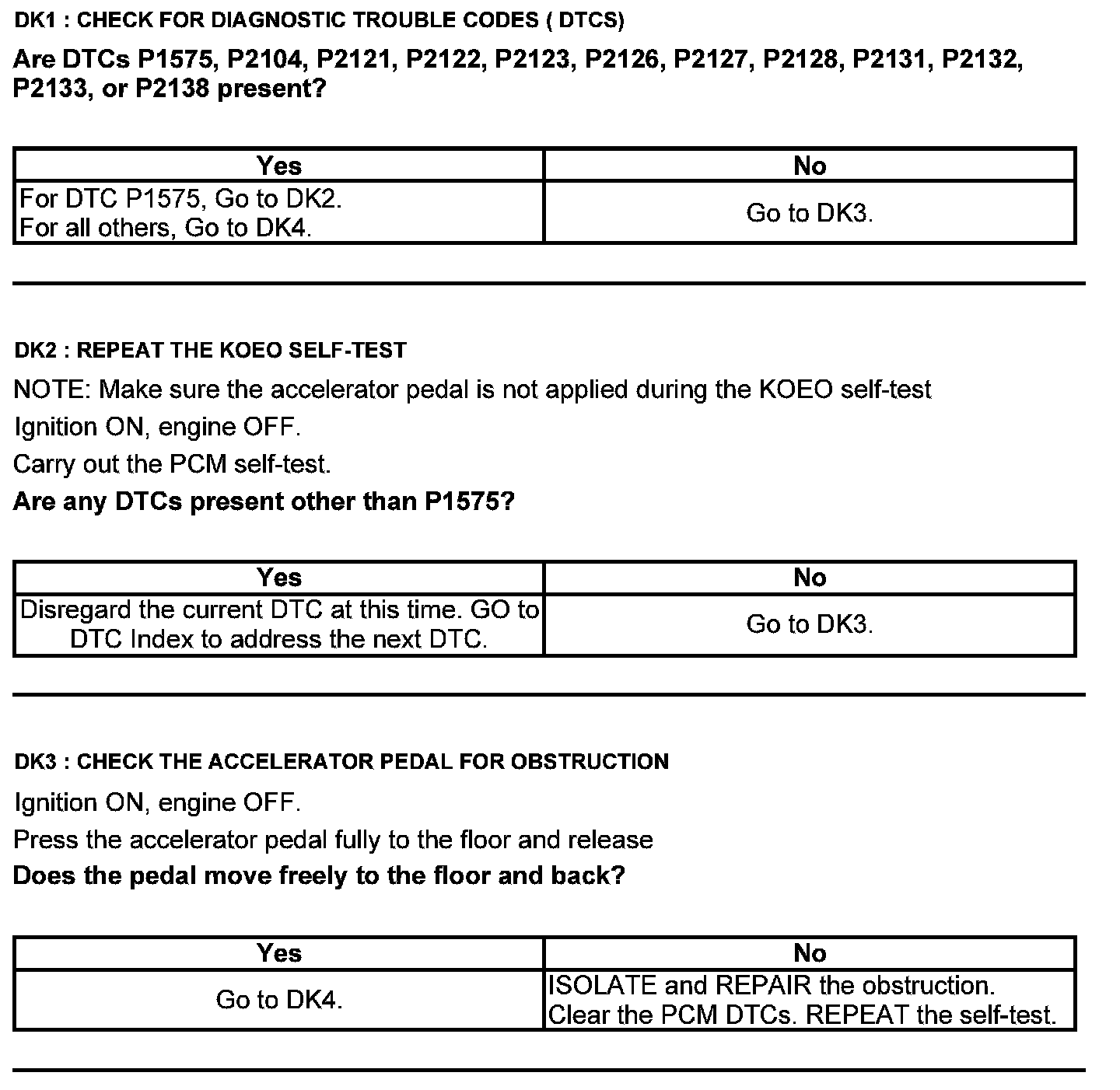

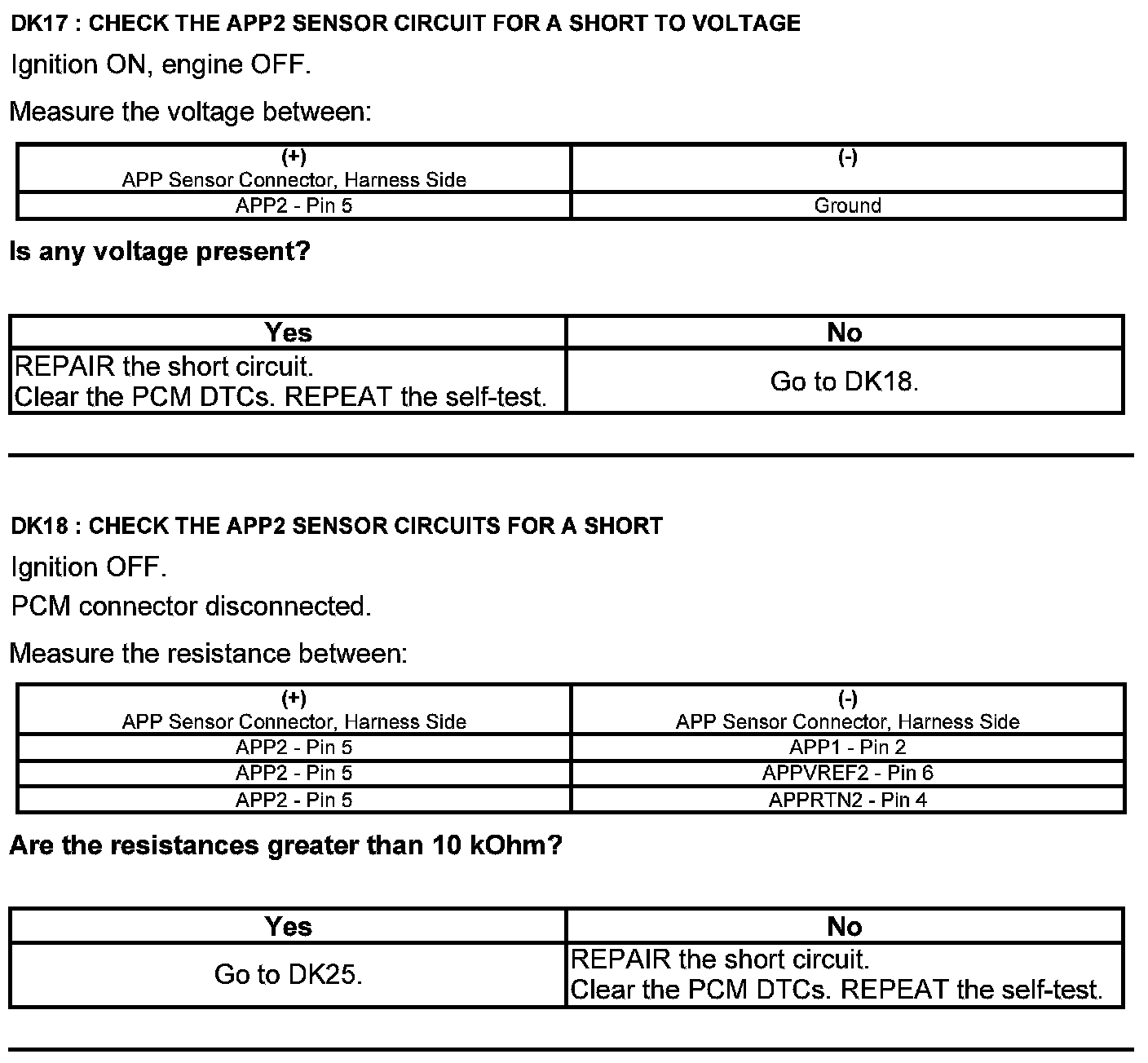

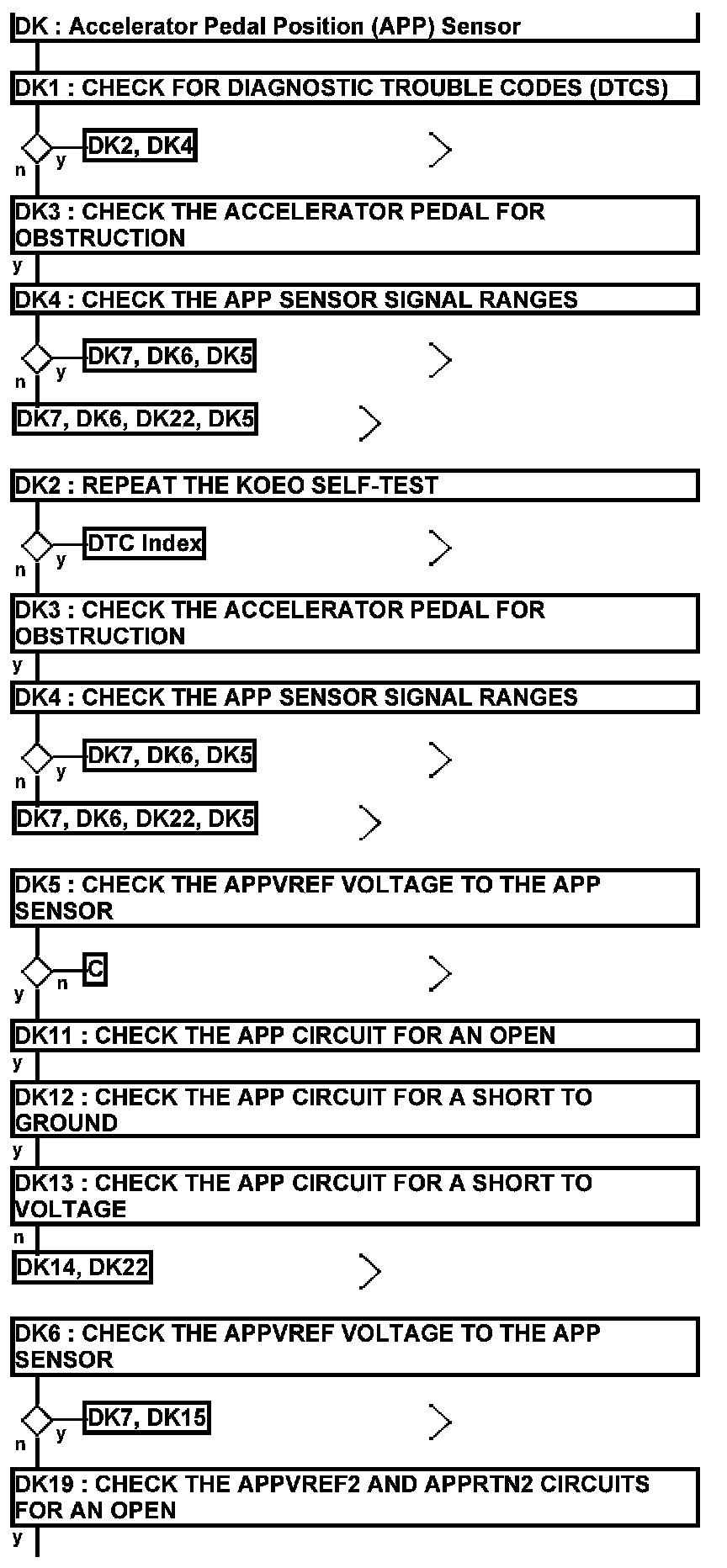

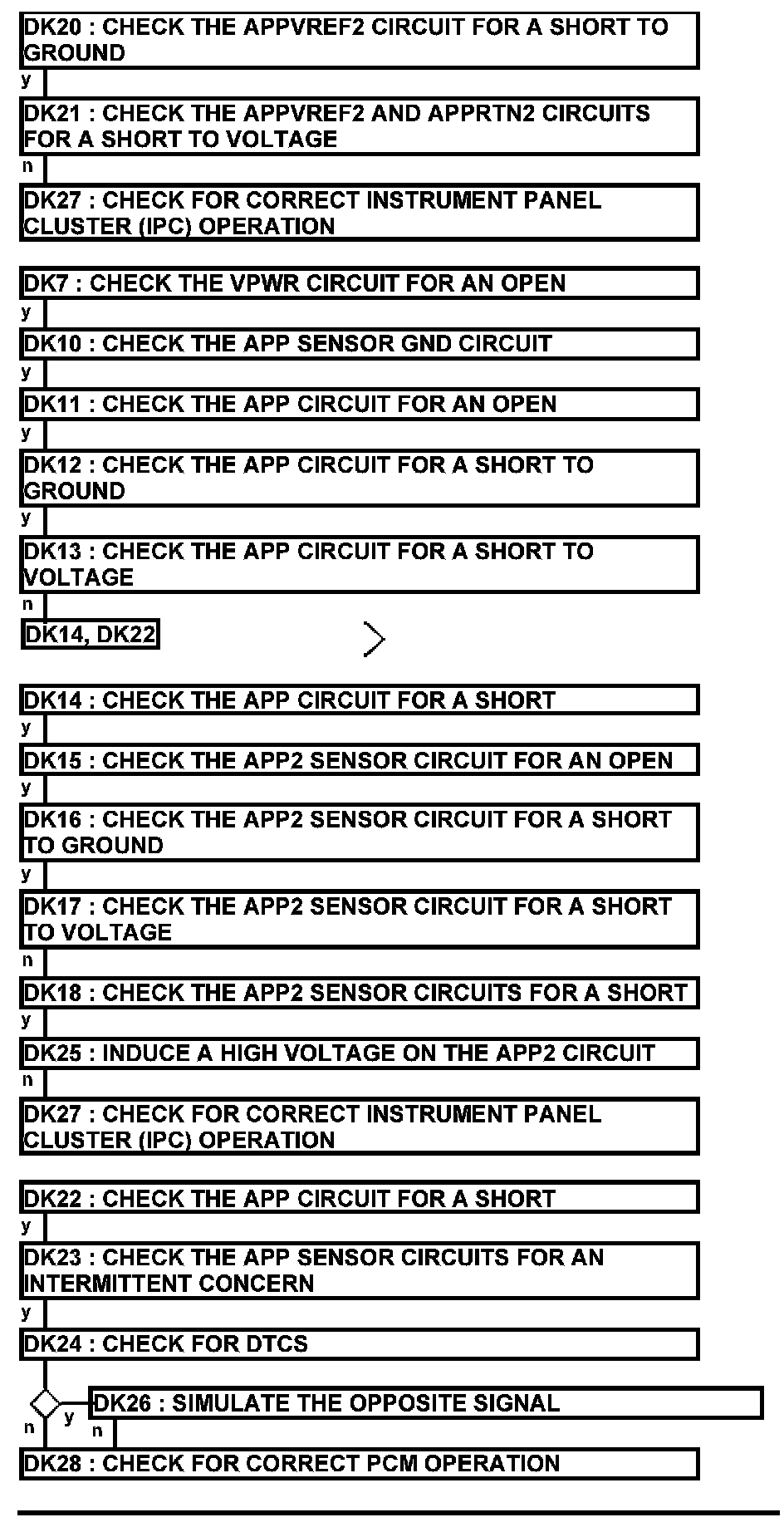

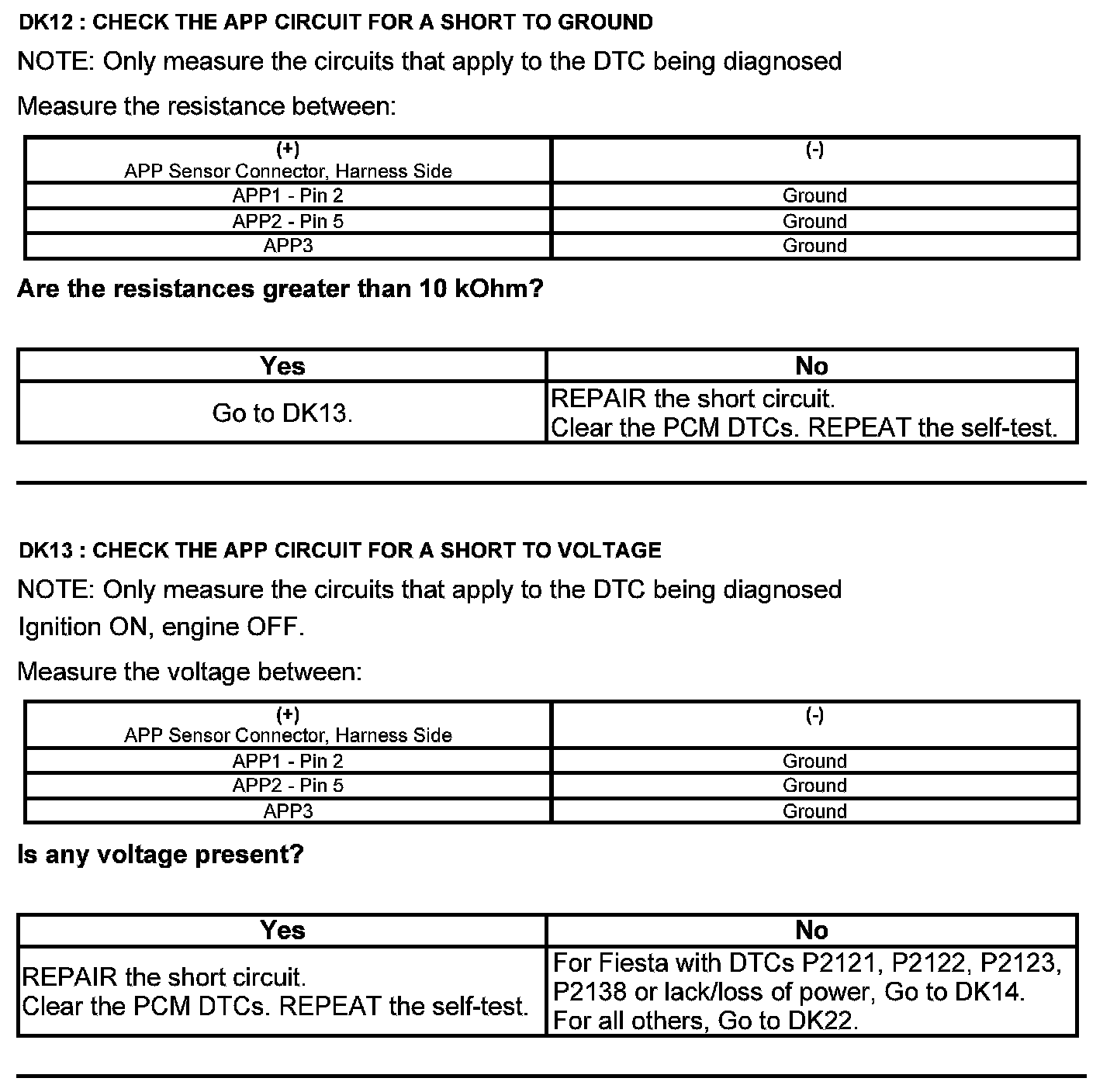

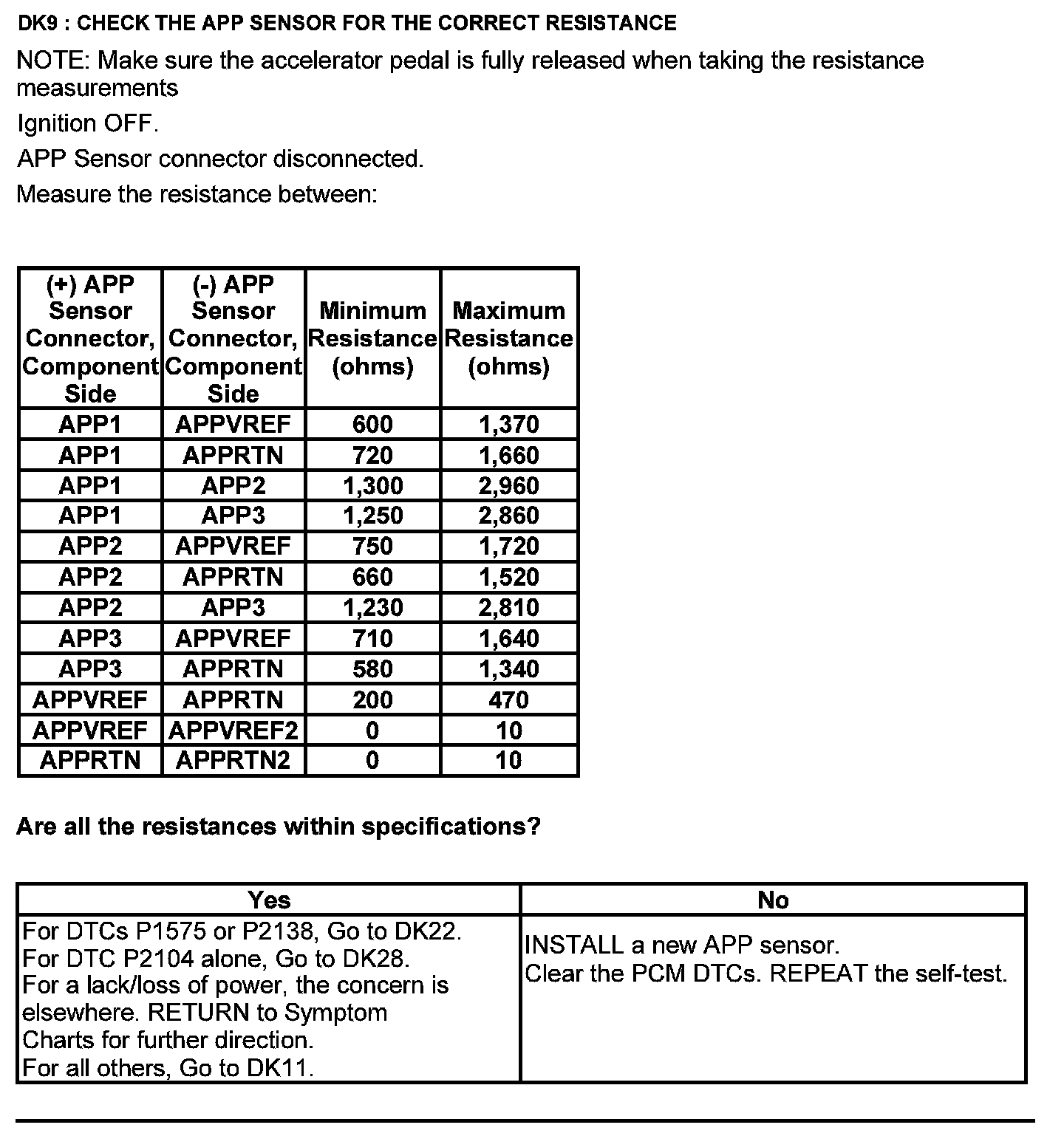

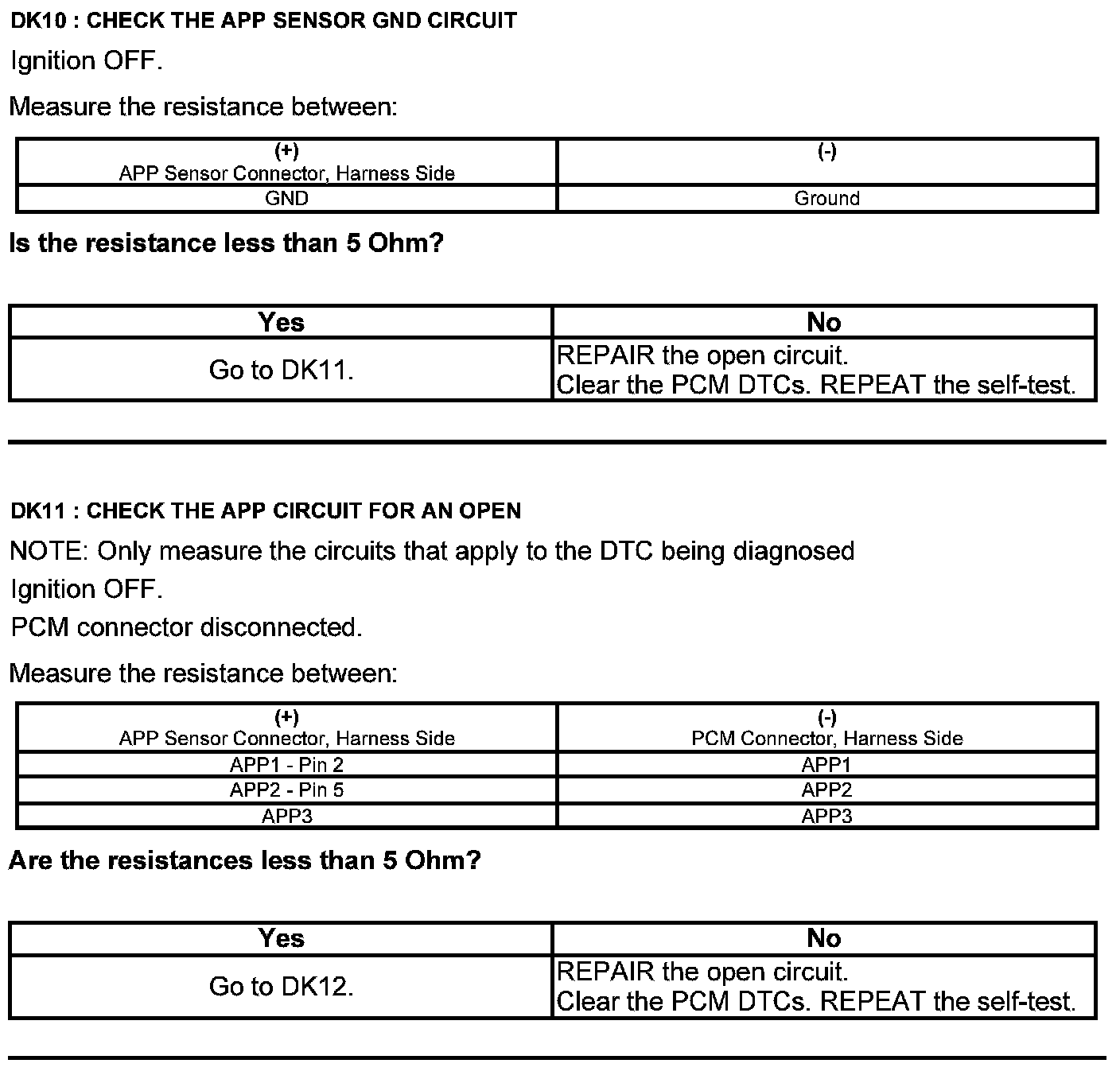

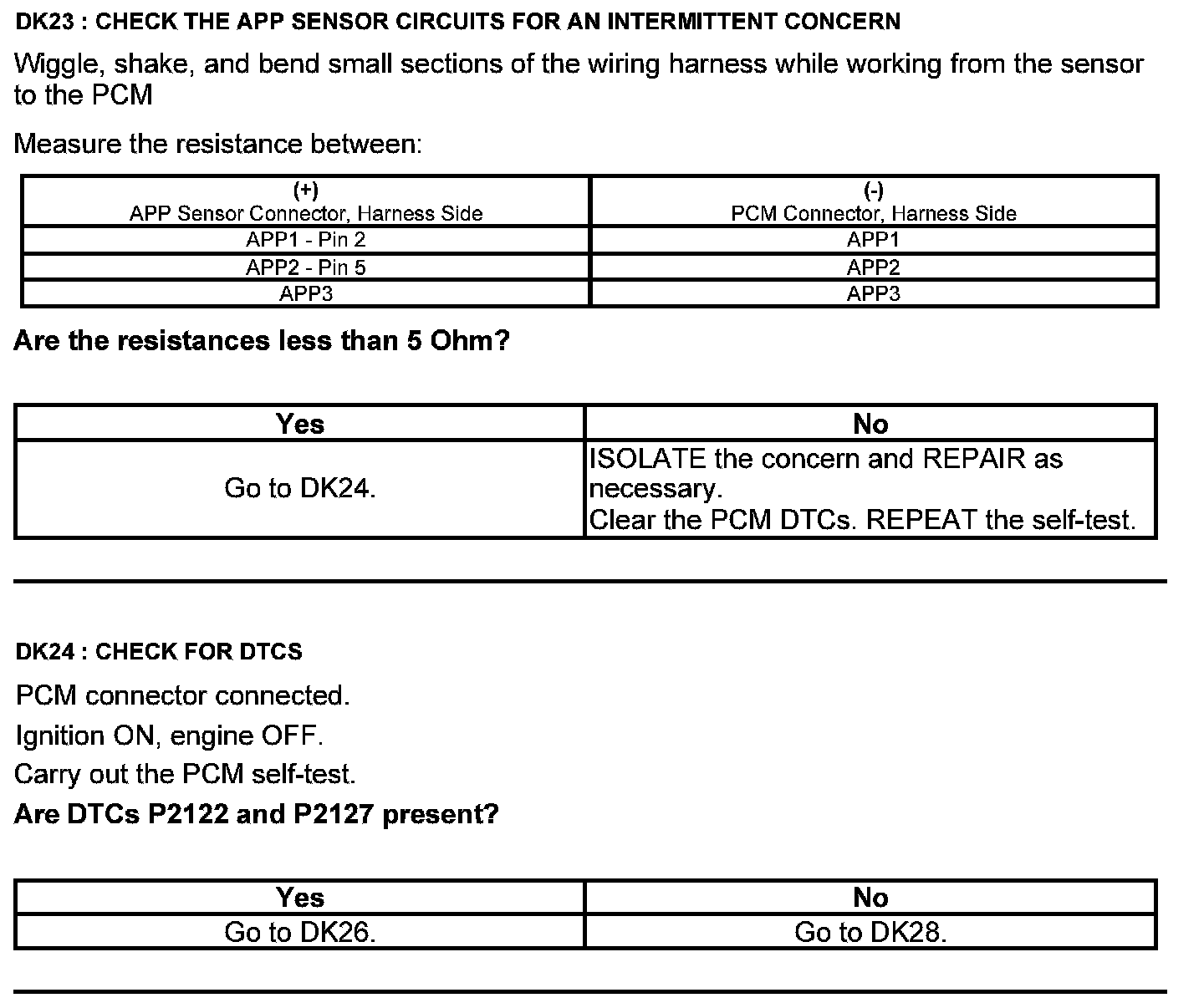

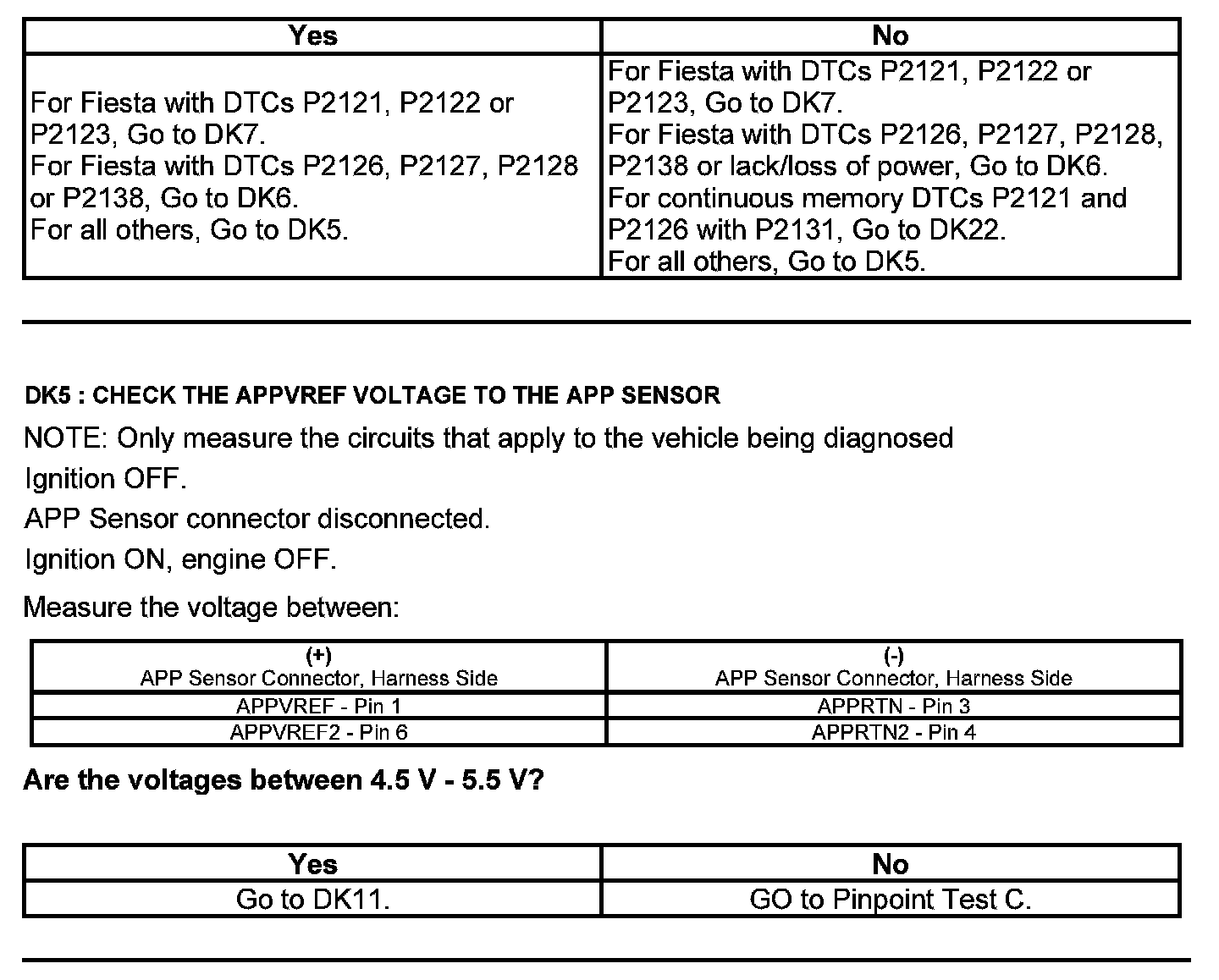

Accelerator Pedal Position (APP) Sensor - All Others

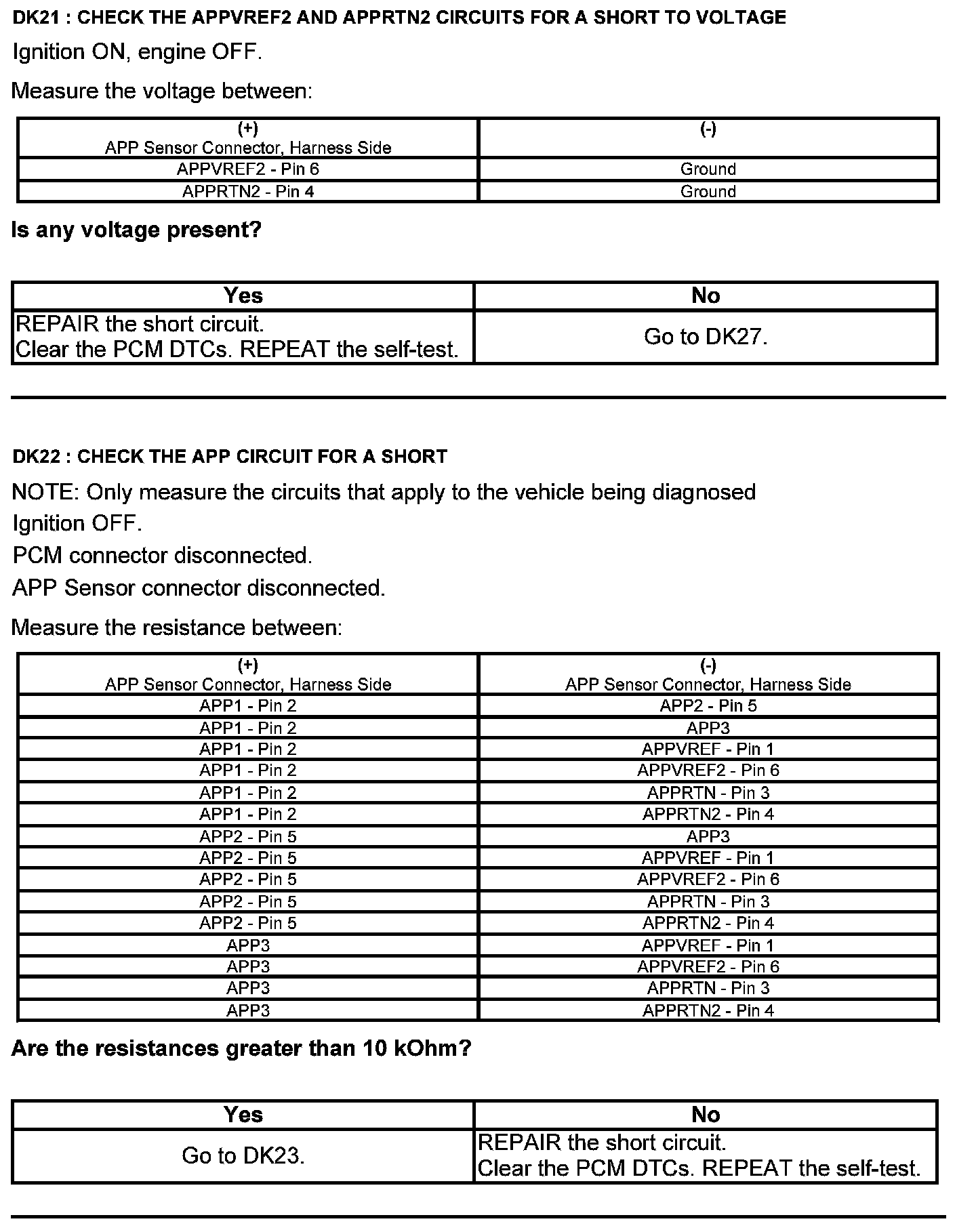

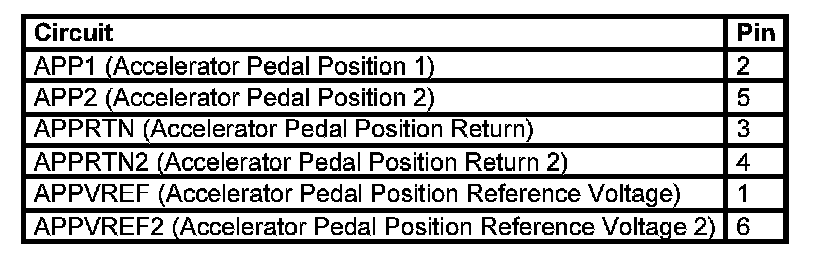

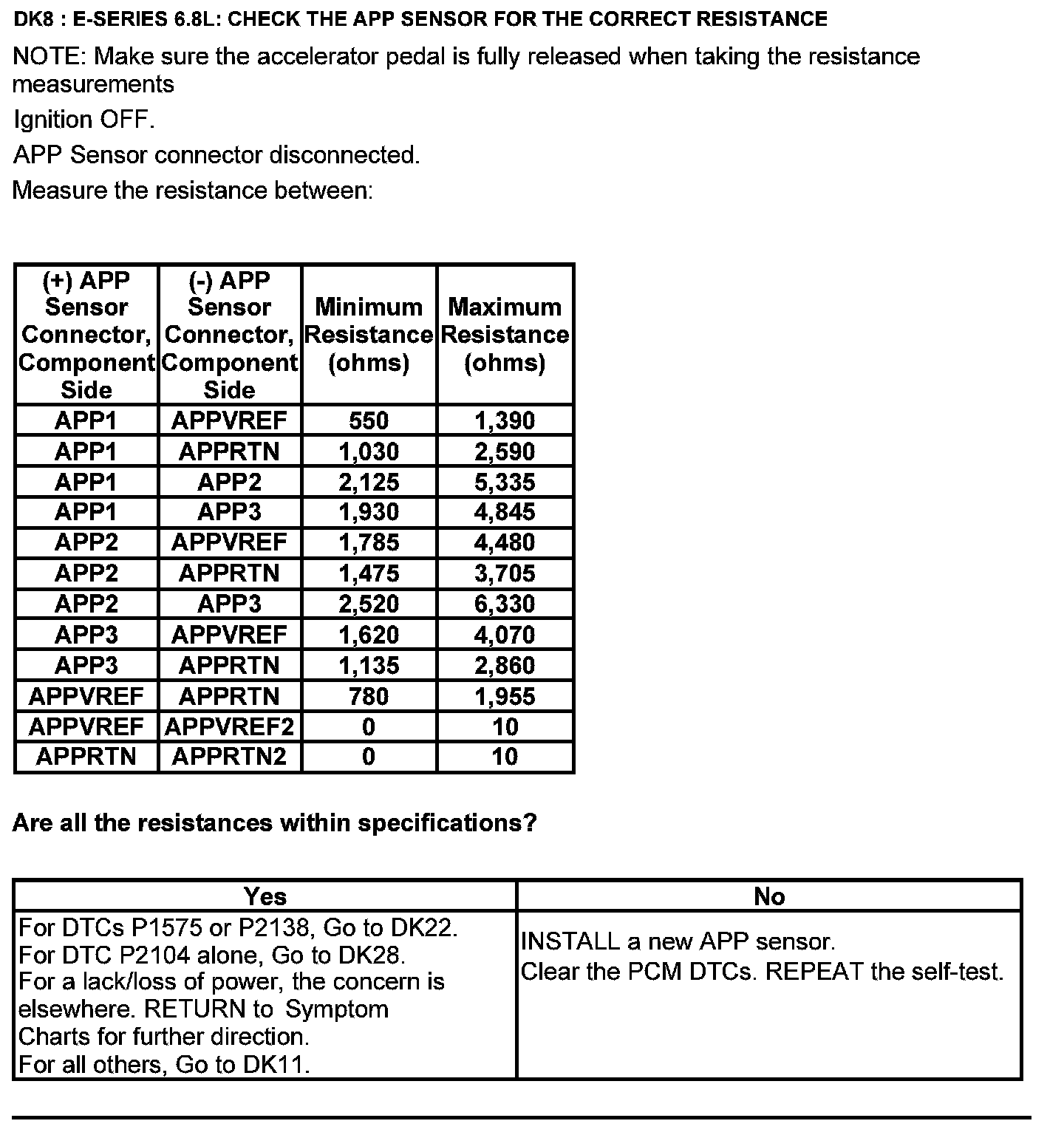

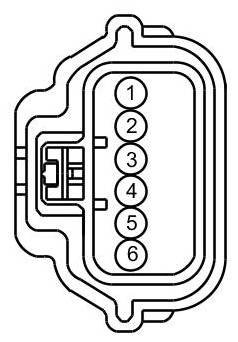

Accelerator Pedal Position (APP) Sensor Connector





Harness Side

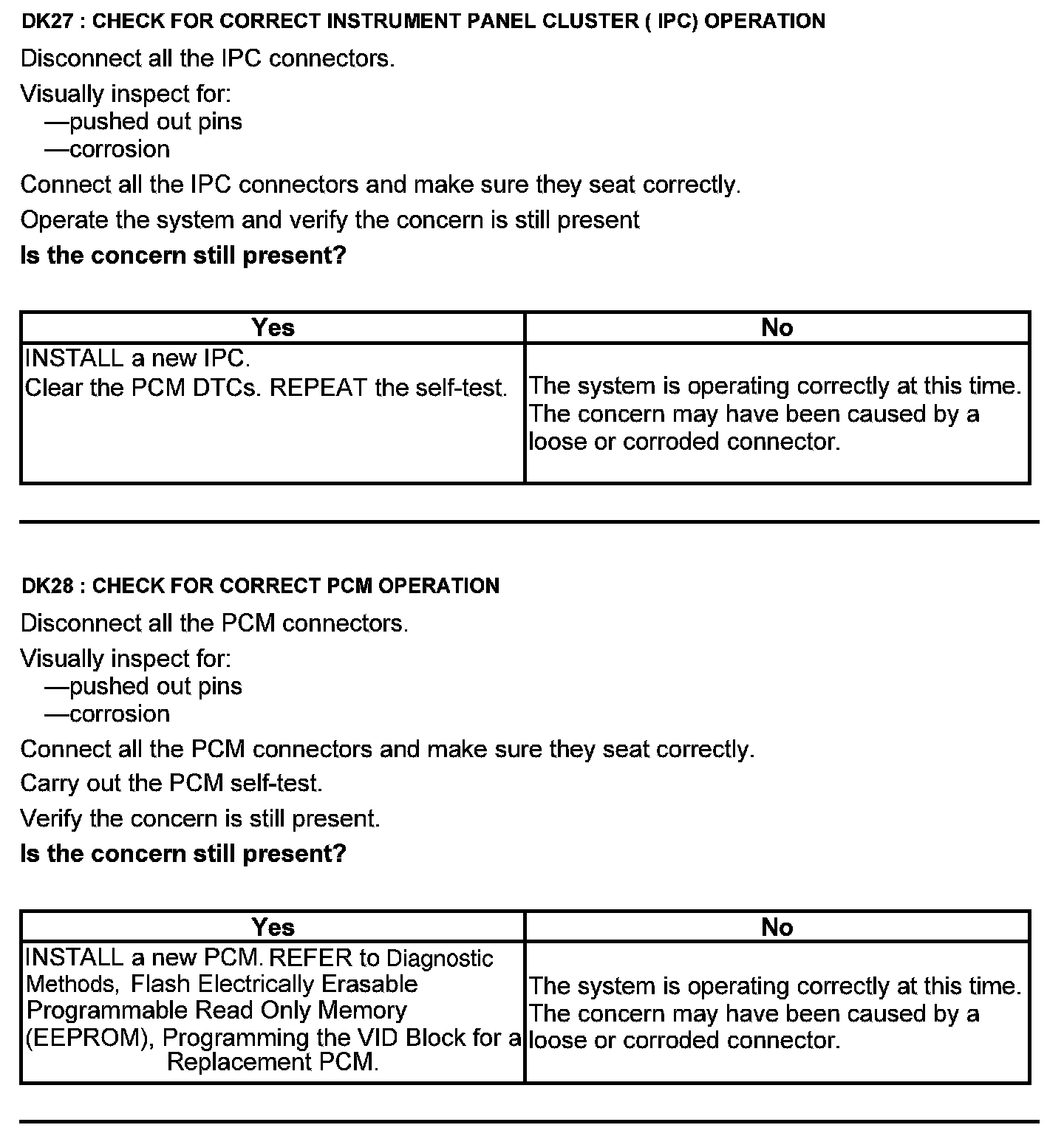

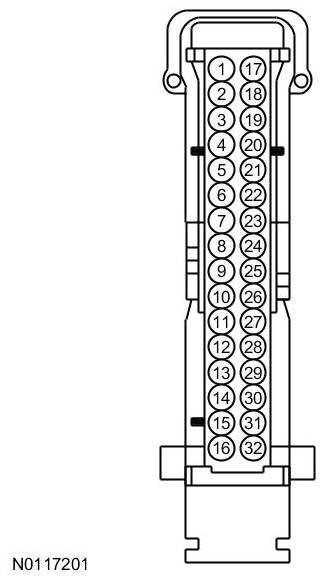

Instrument Panel Cluster (IPC) Connector





Harness Side
