Vehicles That Don't Start.

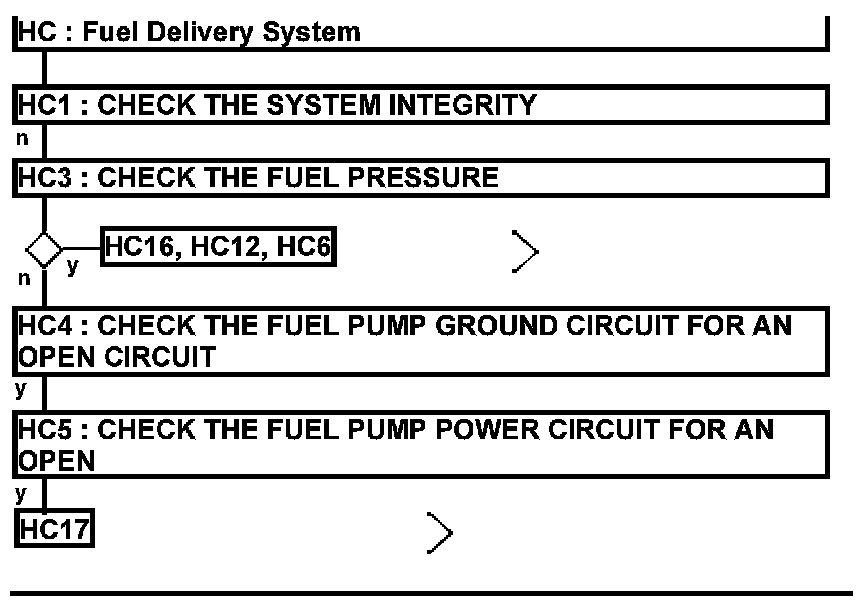

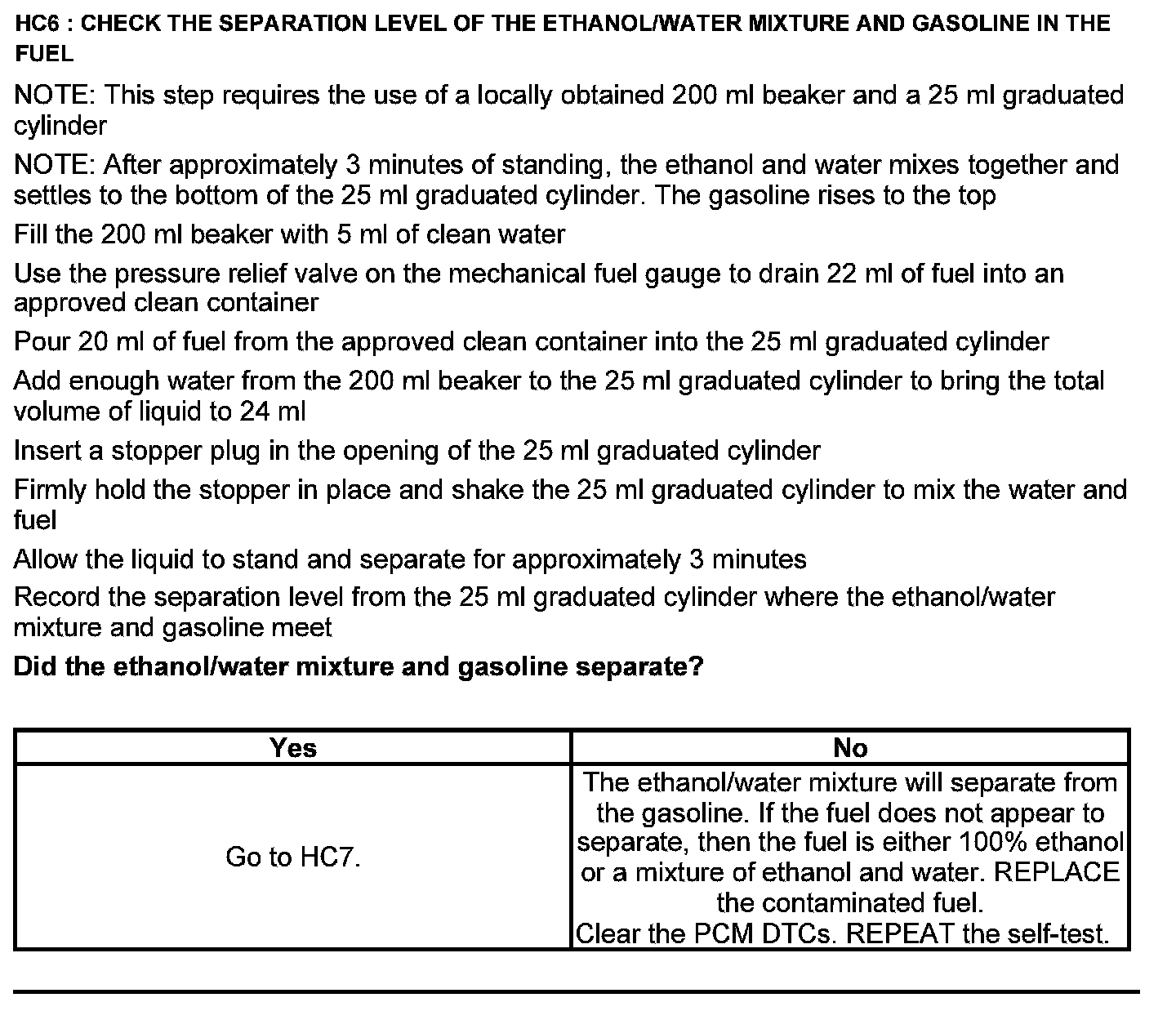

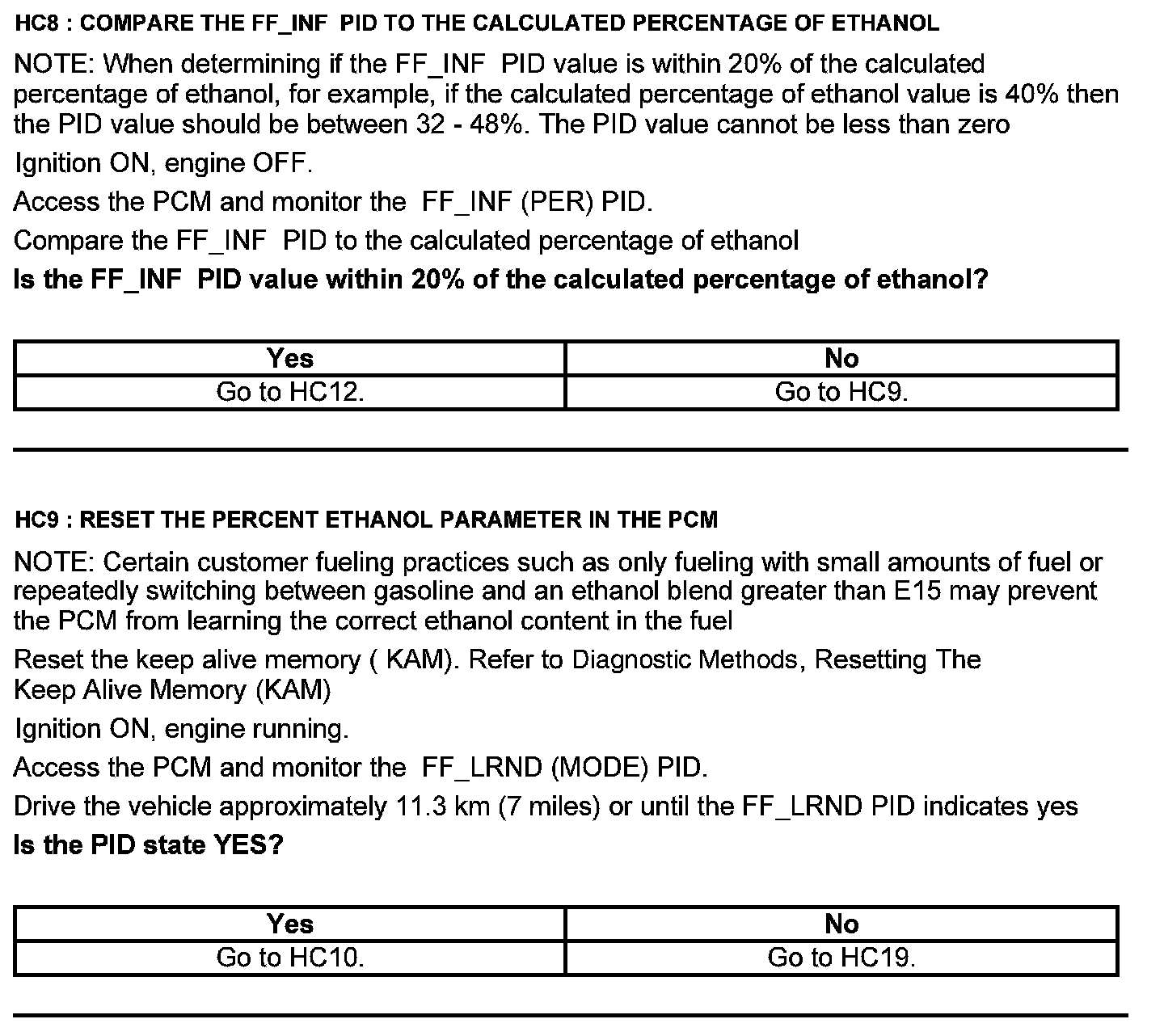

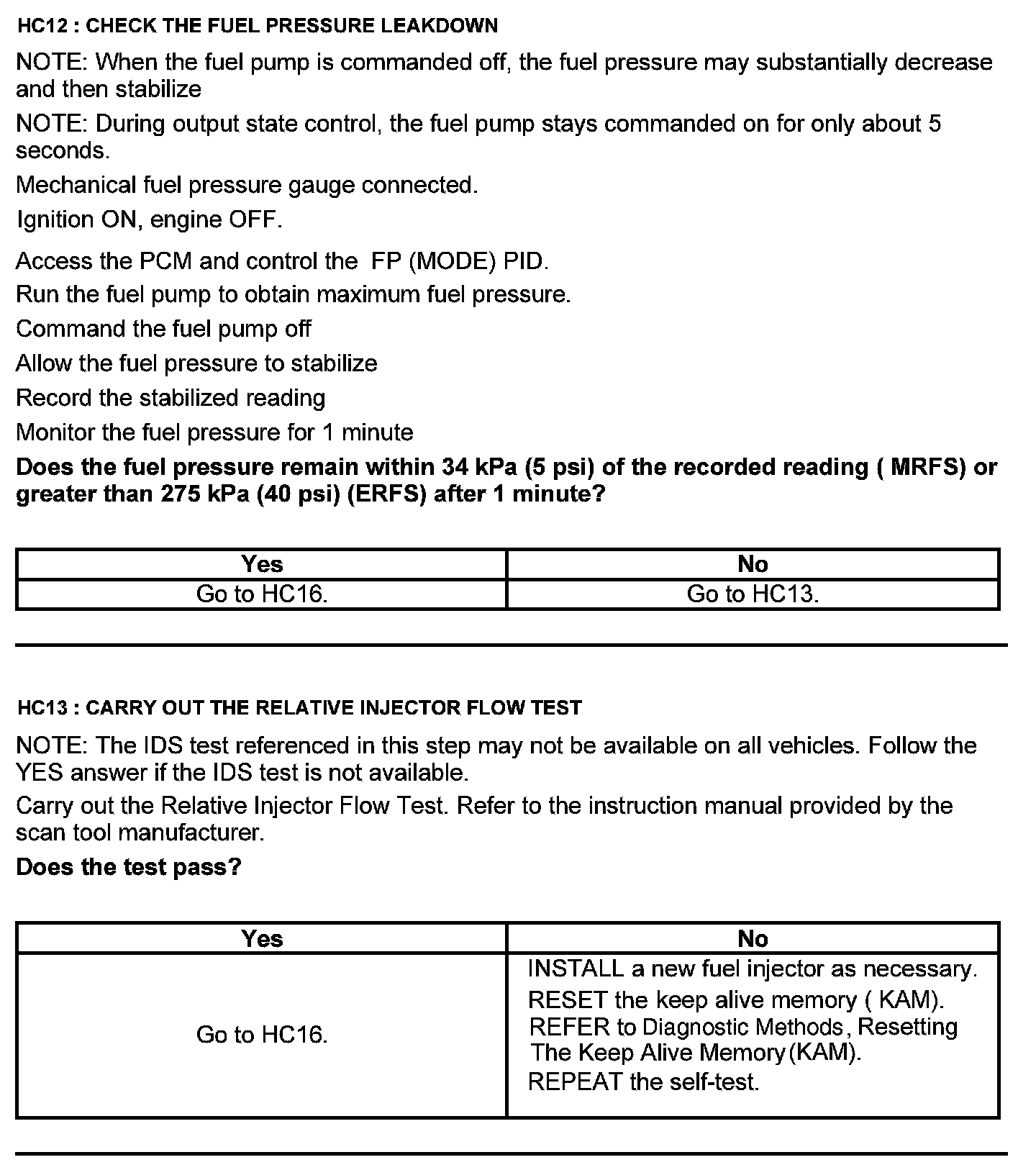

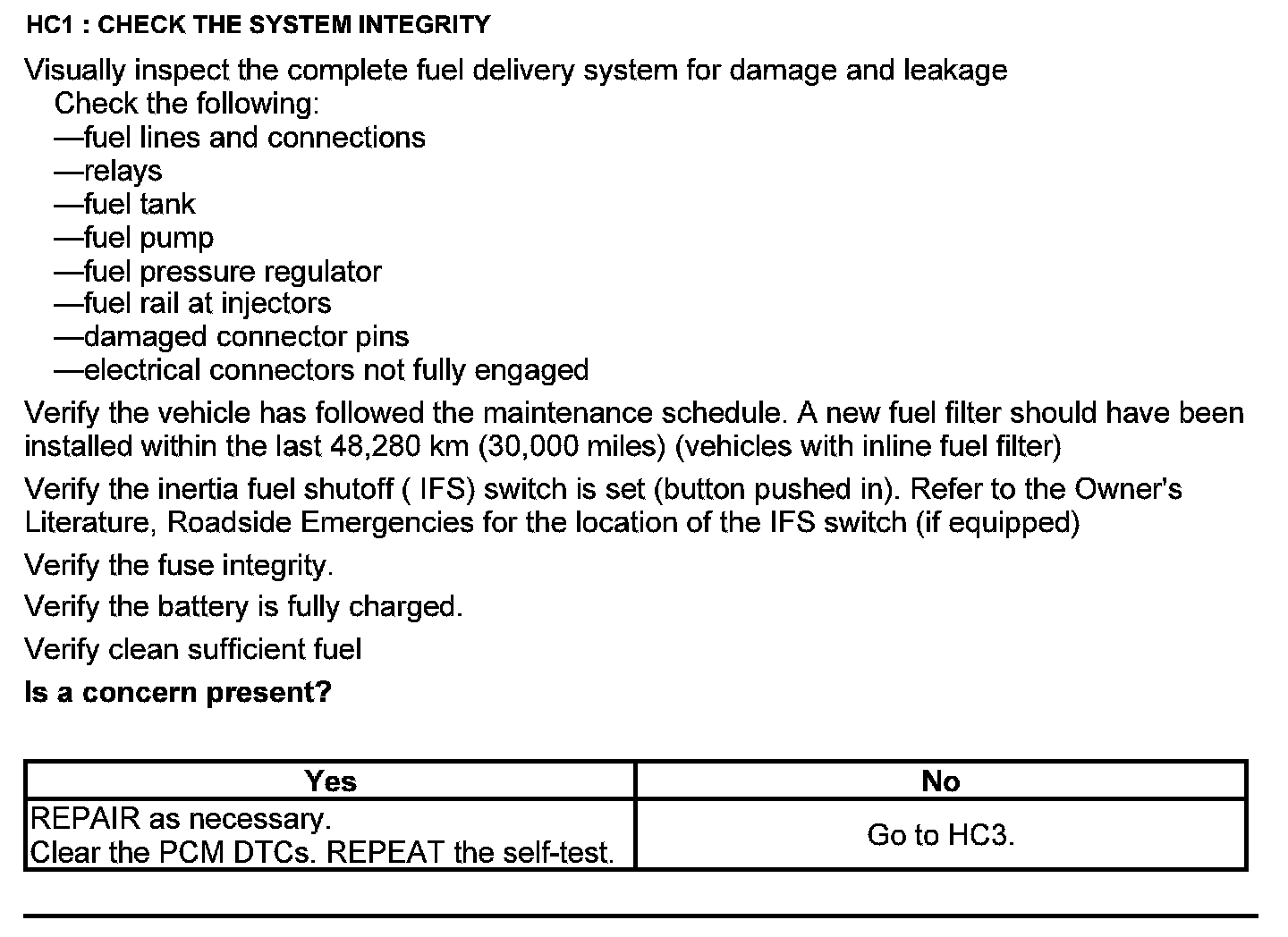

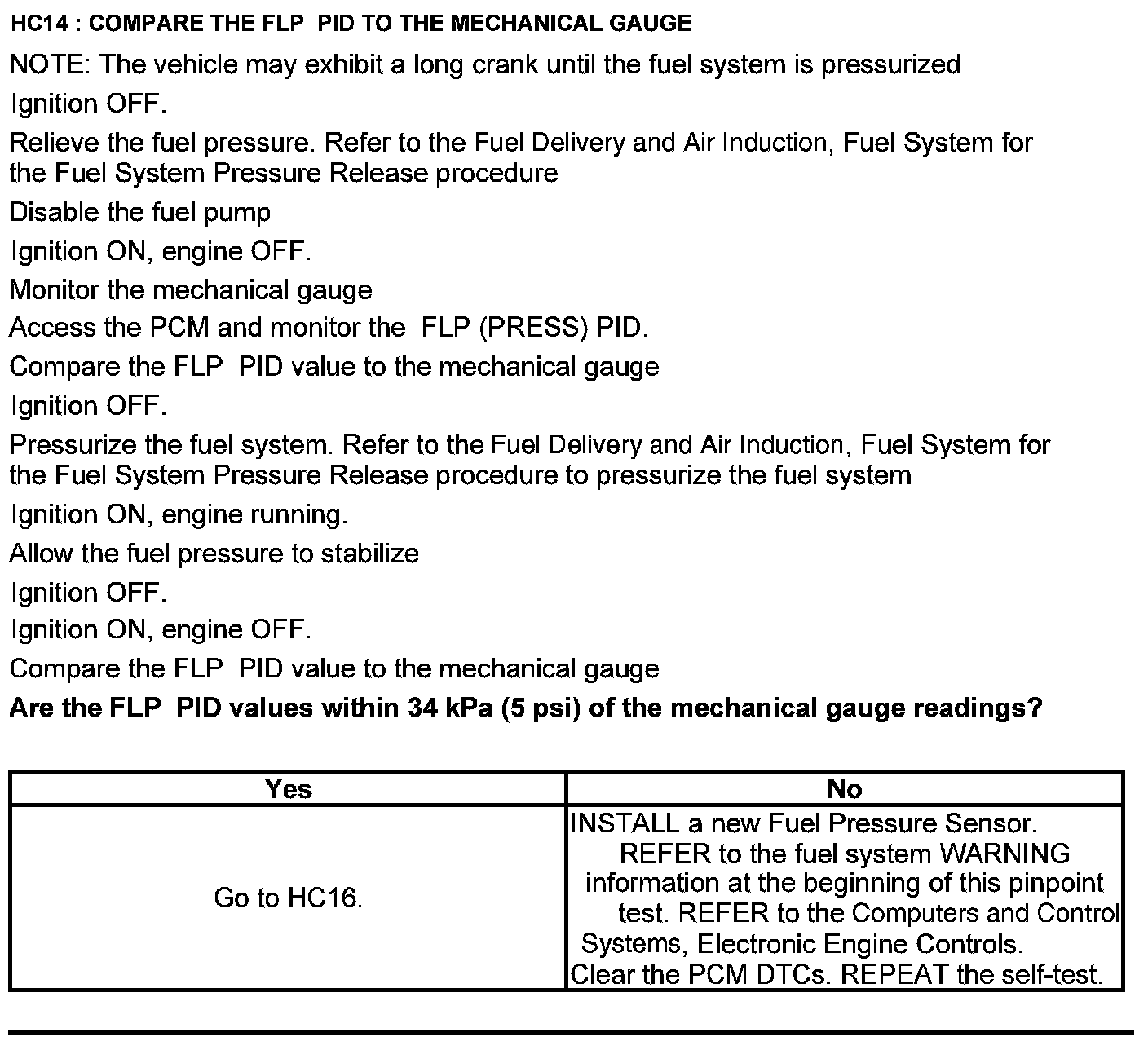

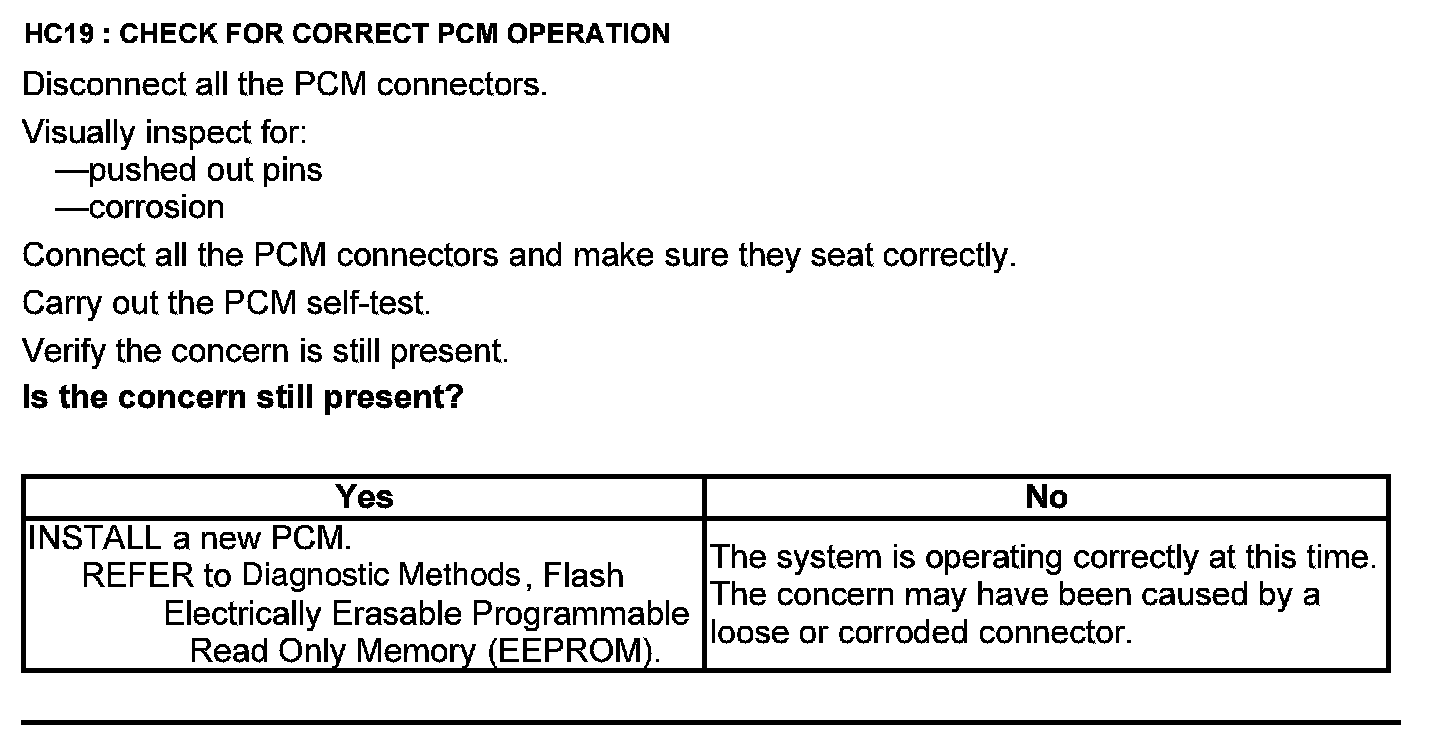

Fuel Delivery System - Vehicles That Don't Start

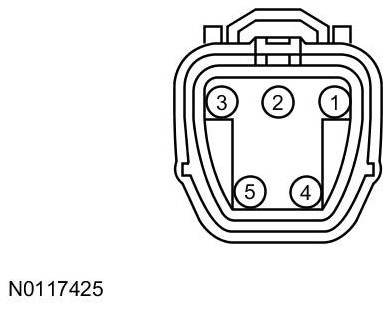

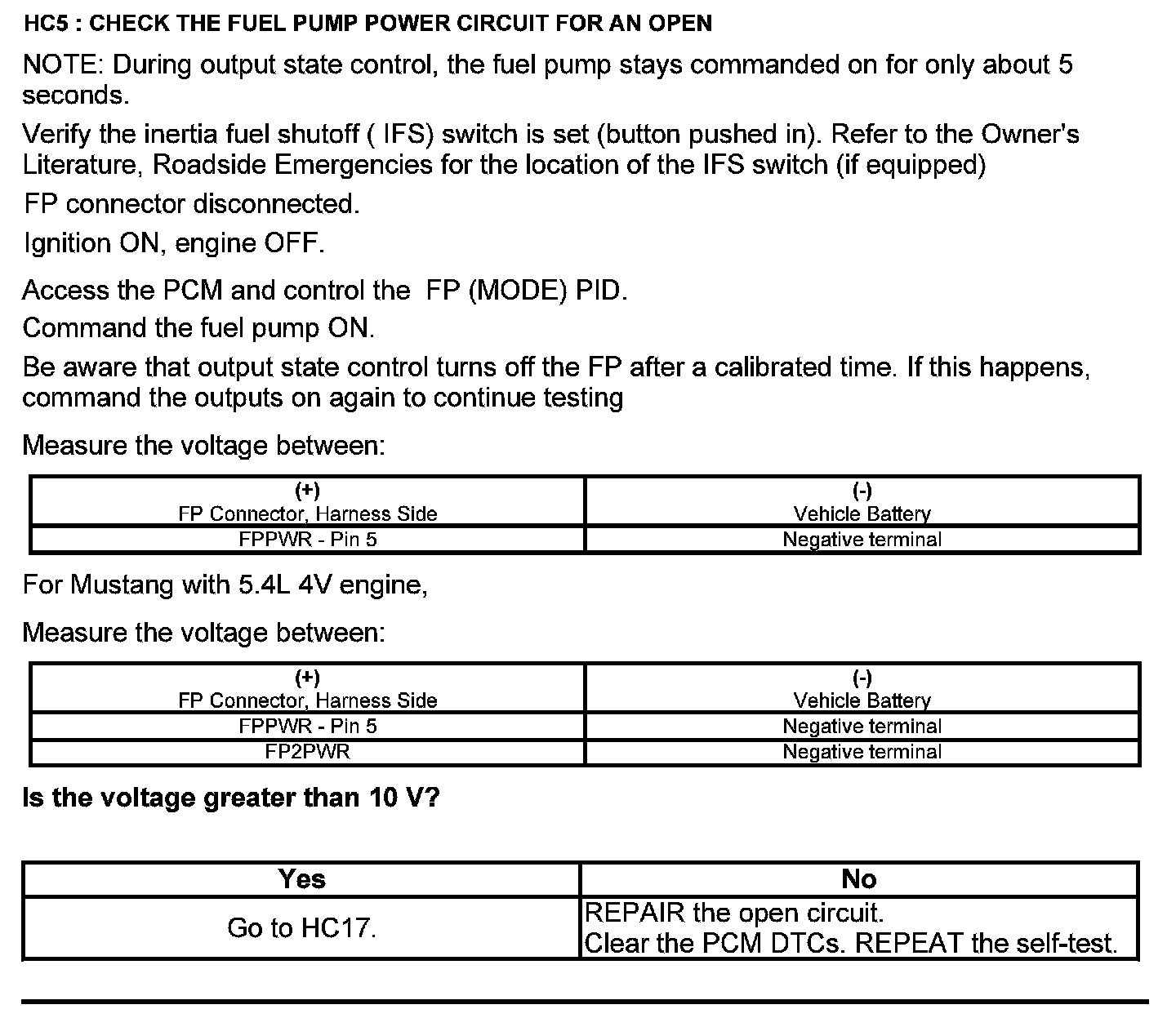

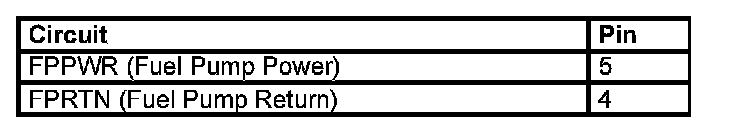

Fuel Pump (FP) Connector





Harness Side
