Vehicles That Start

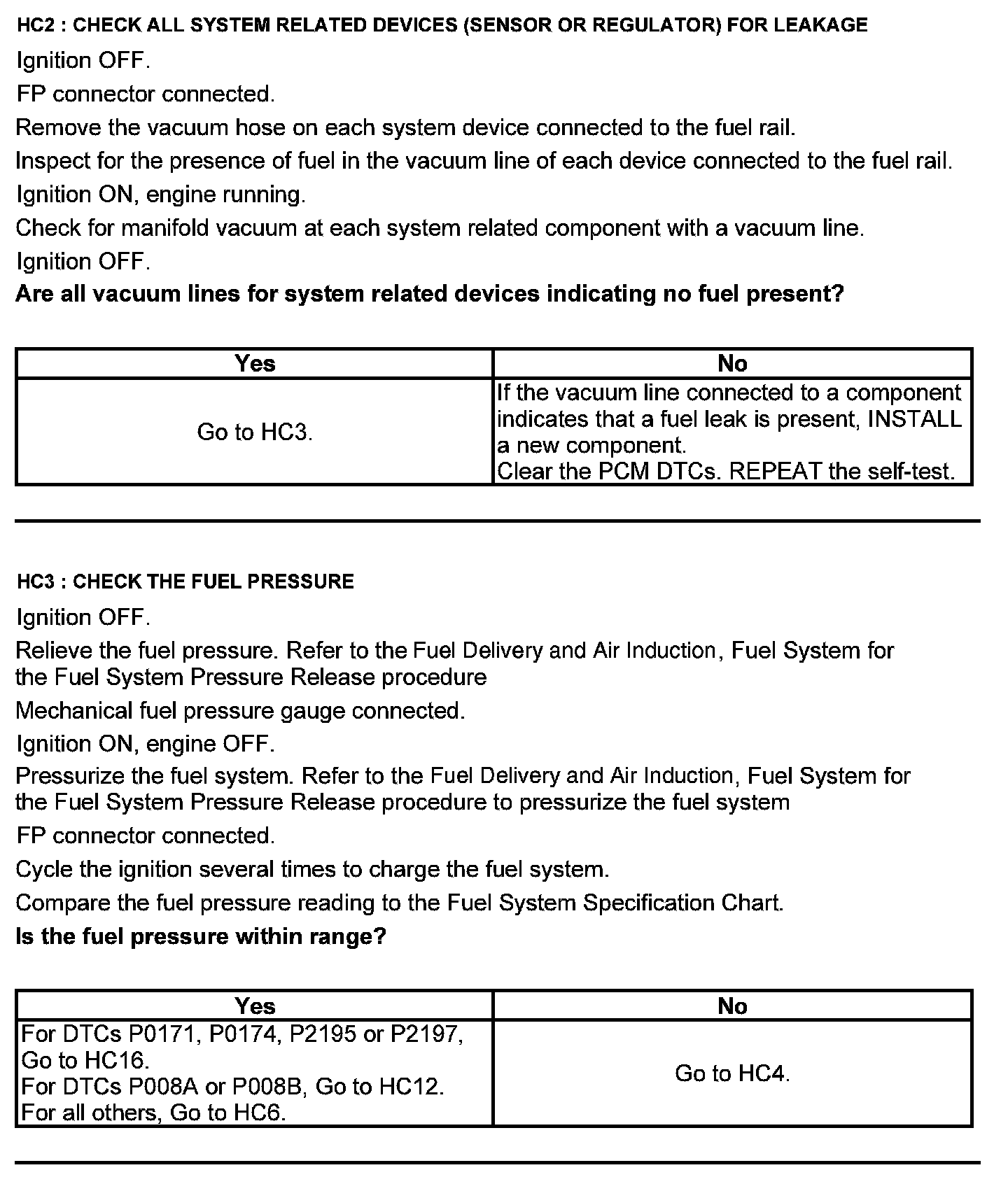

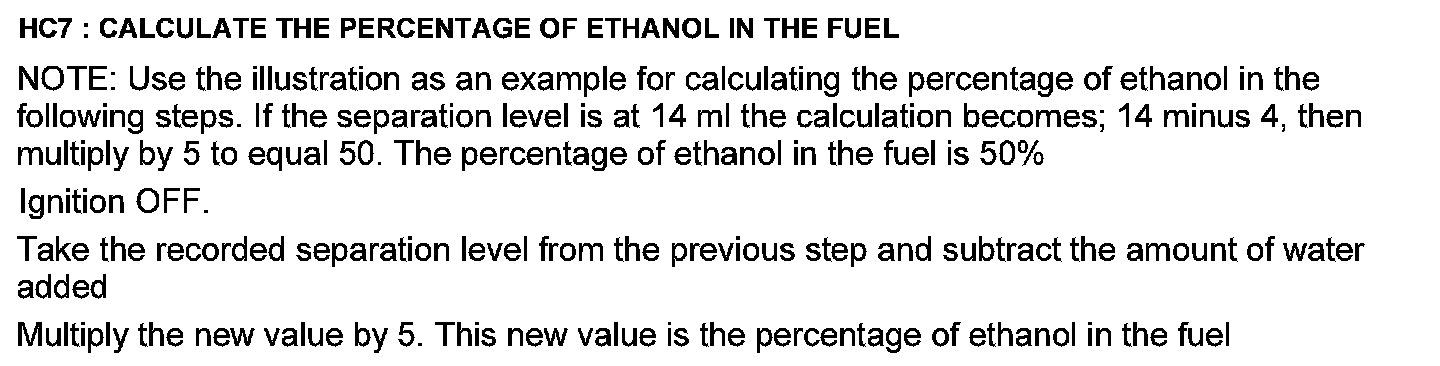

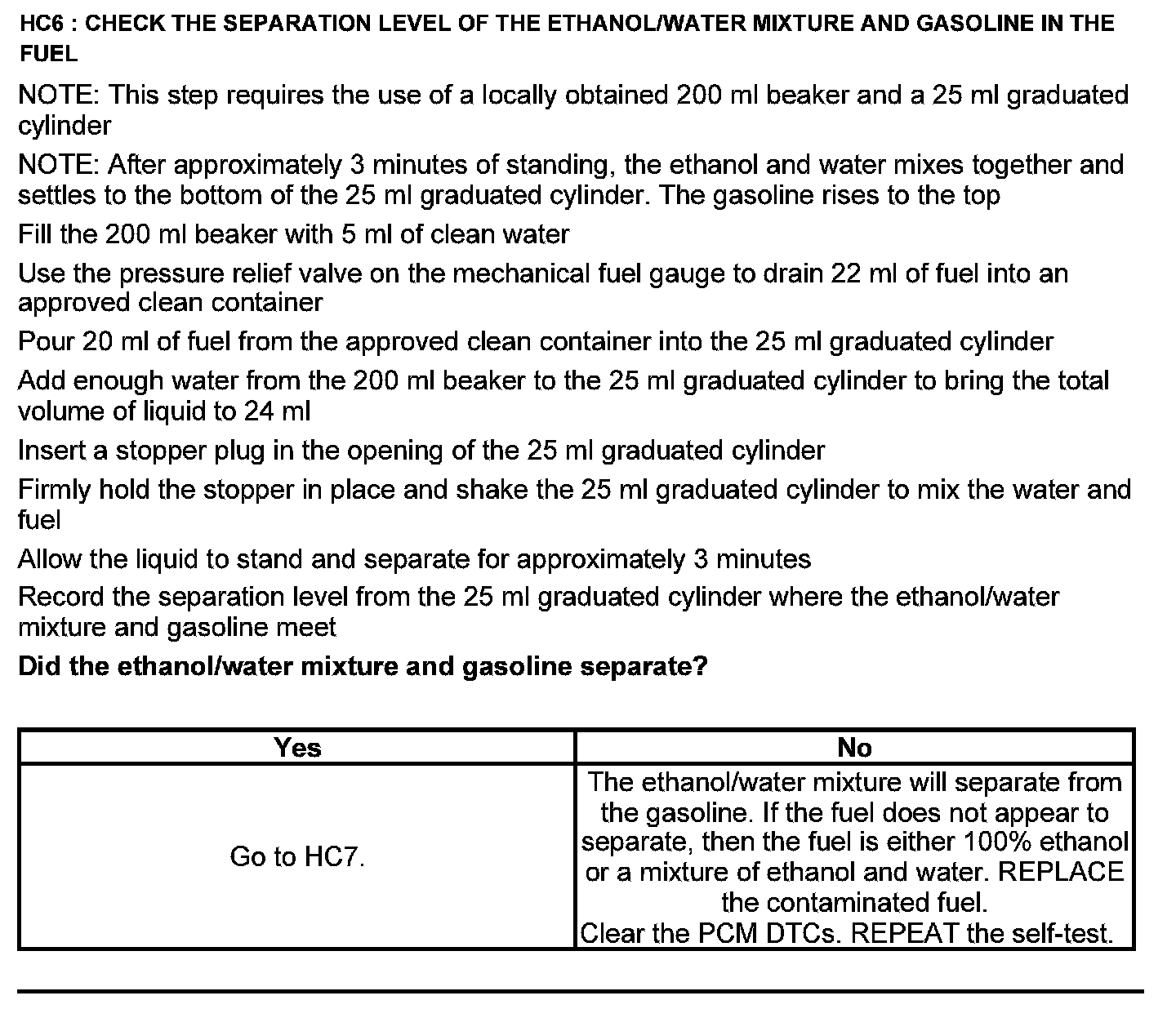

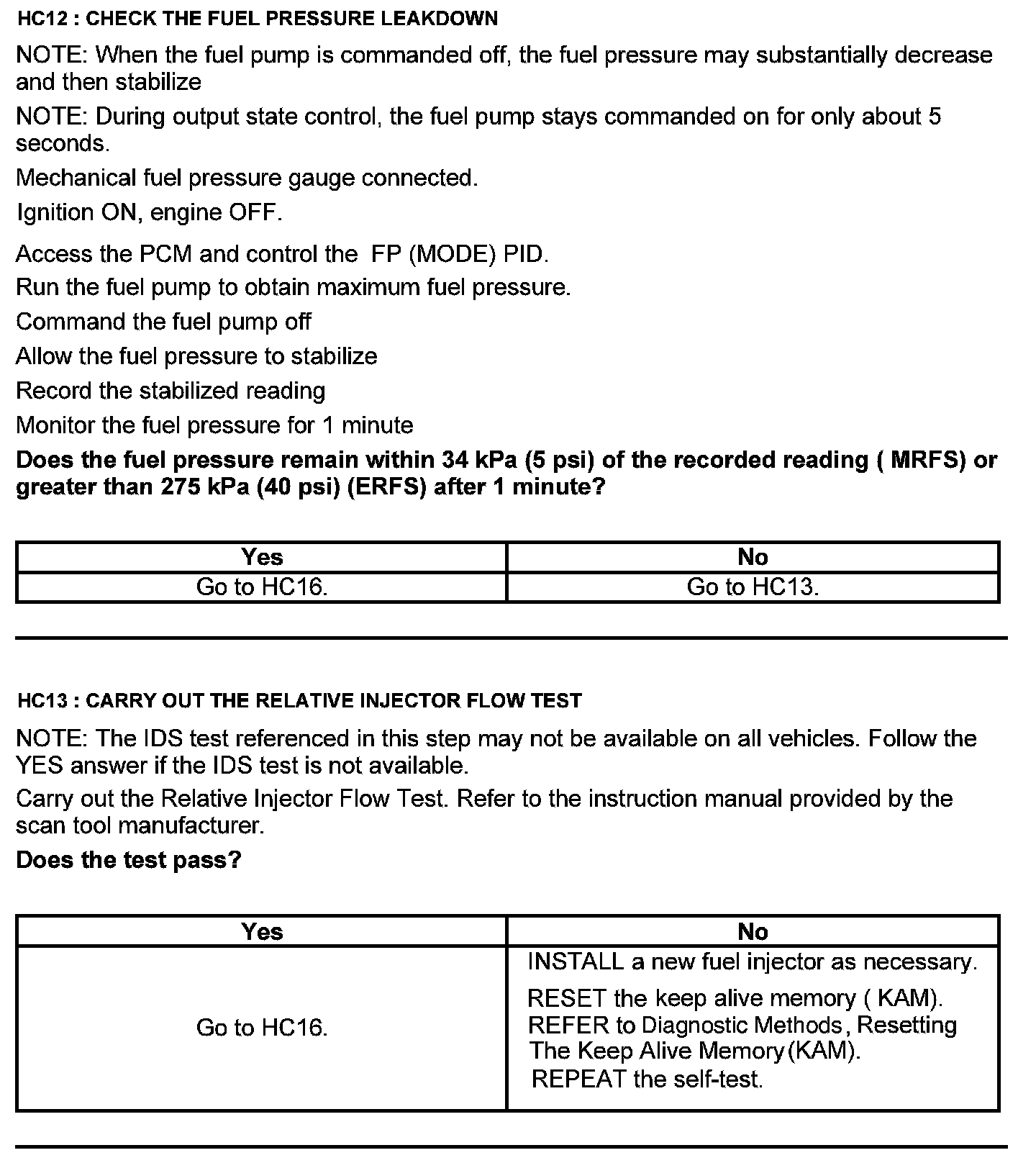

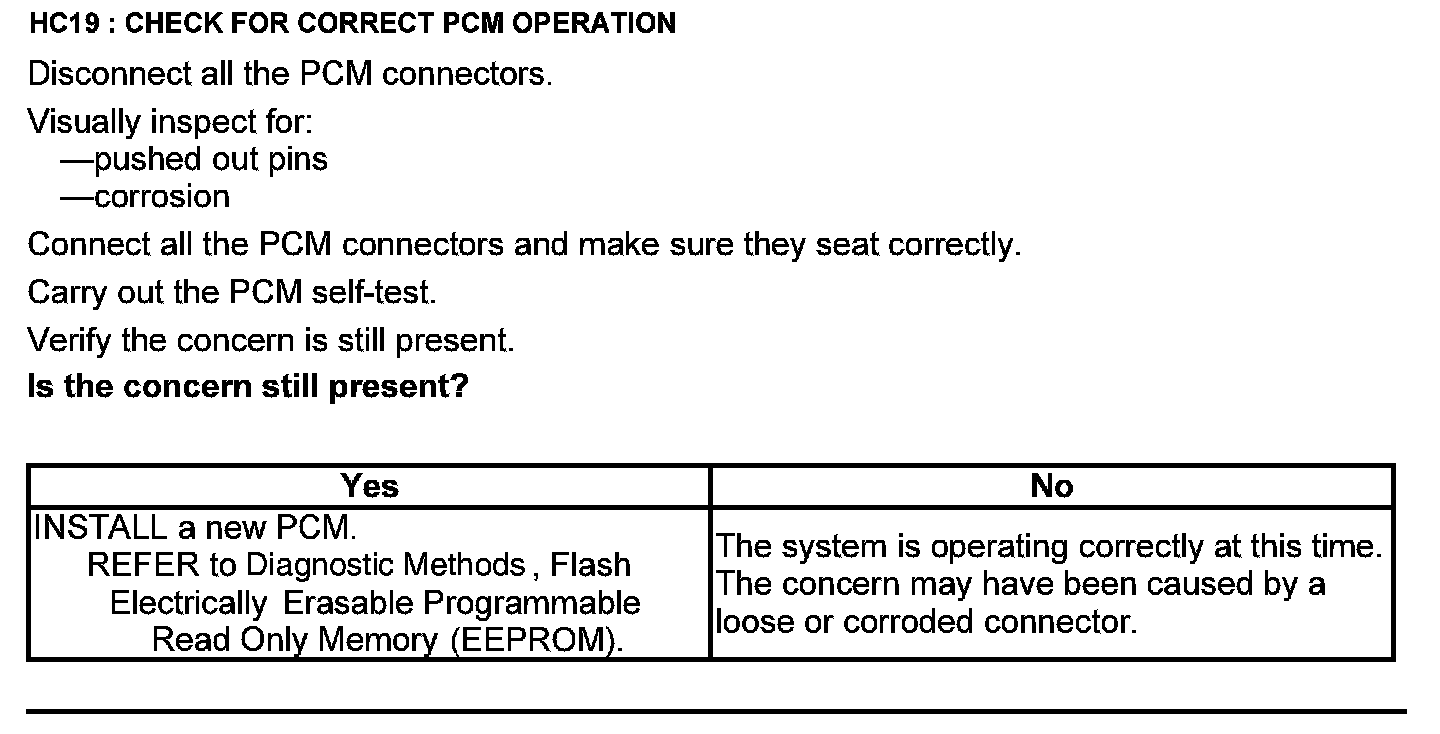

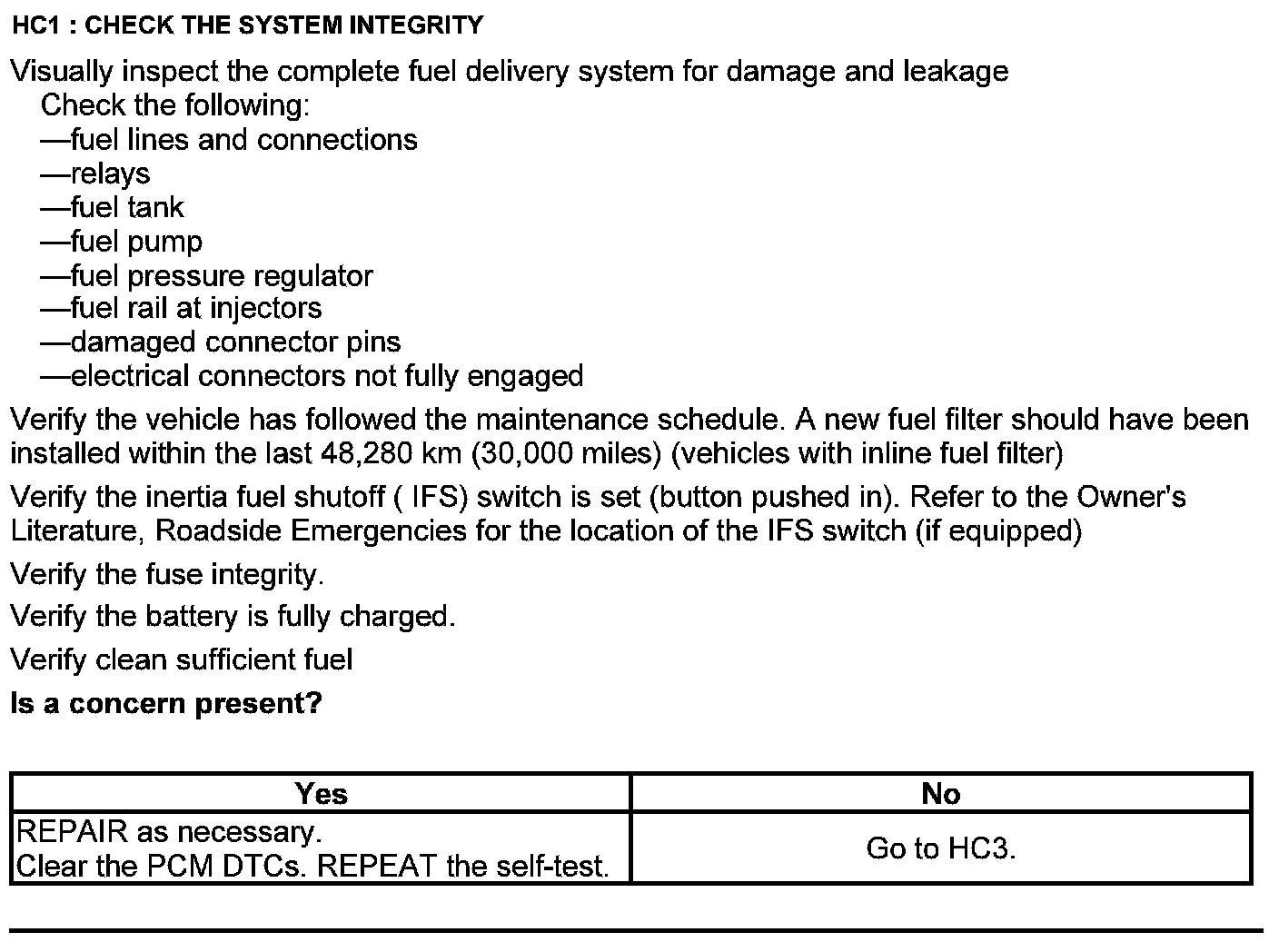

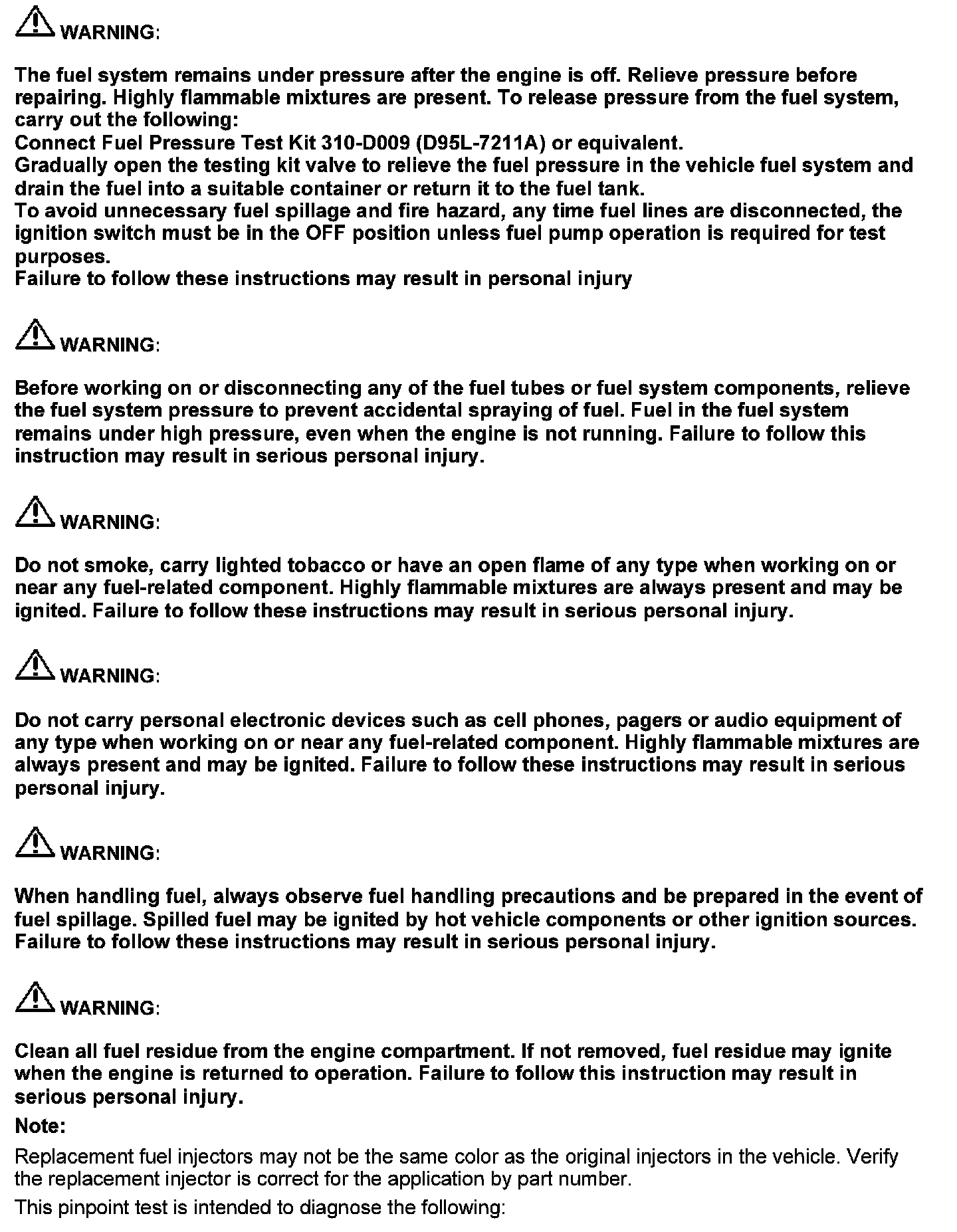

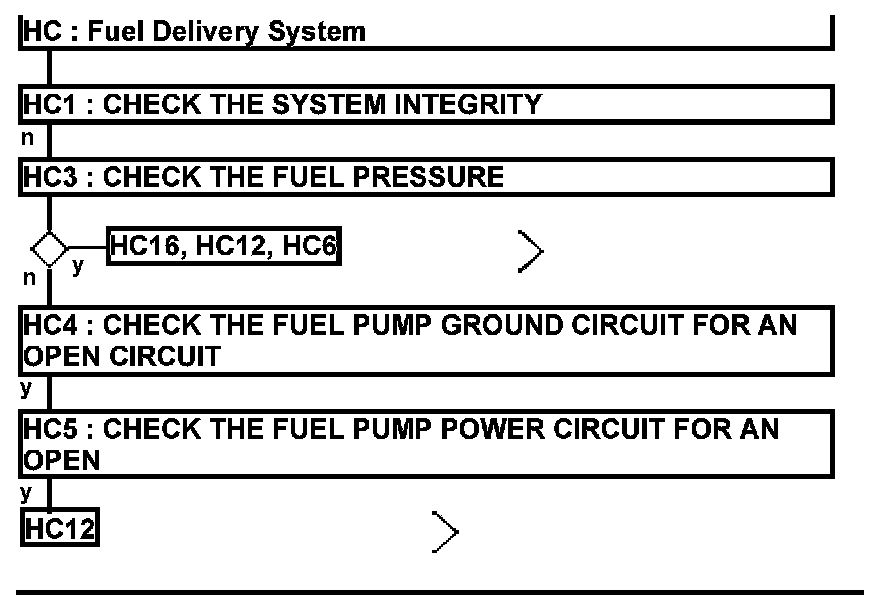

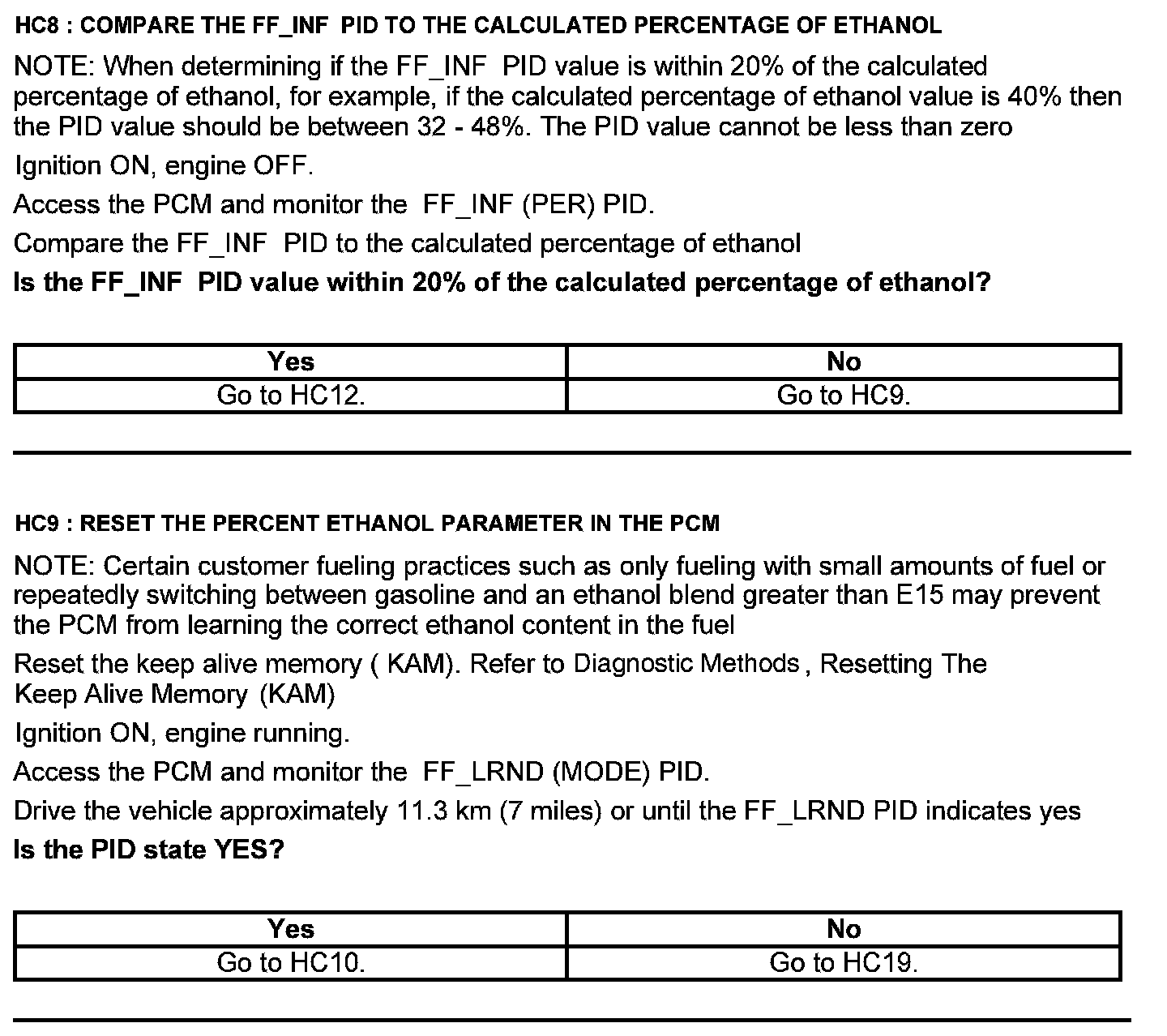

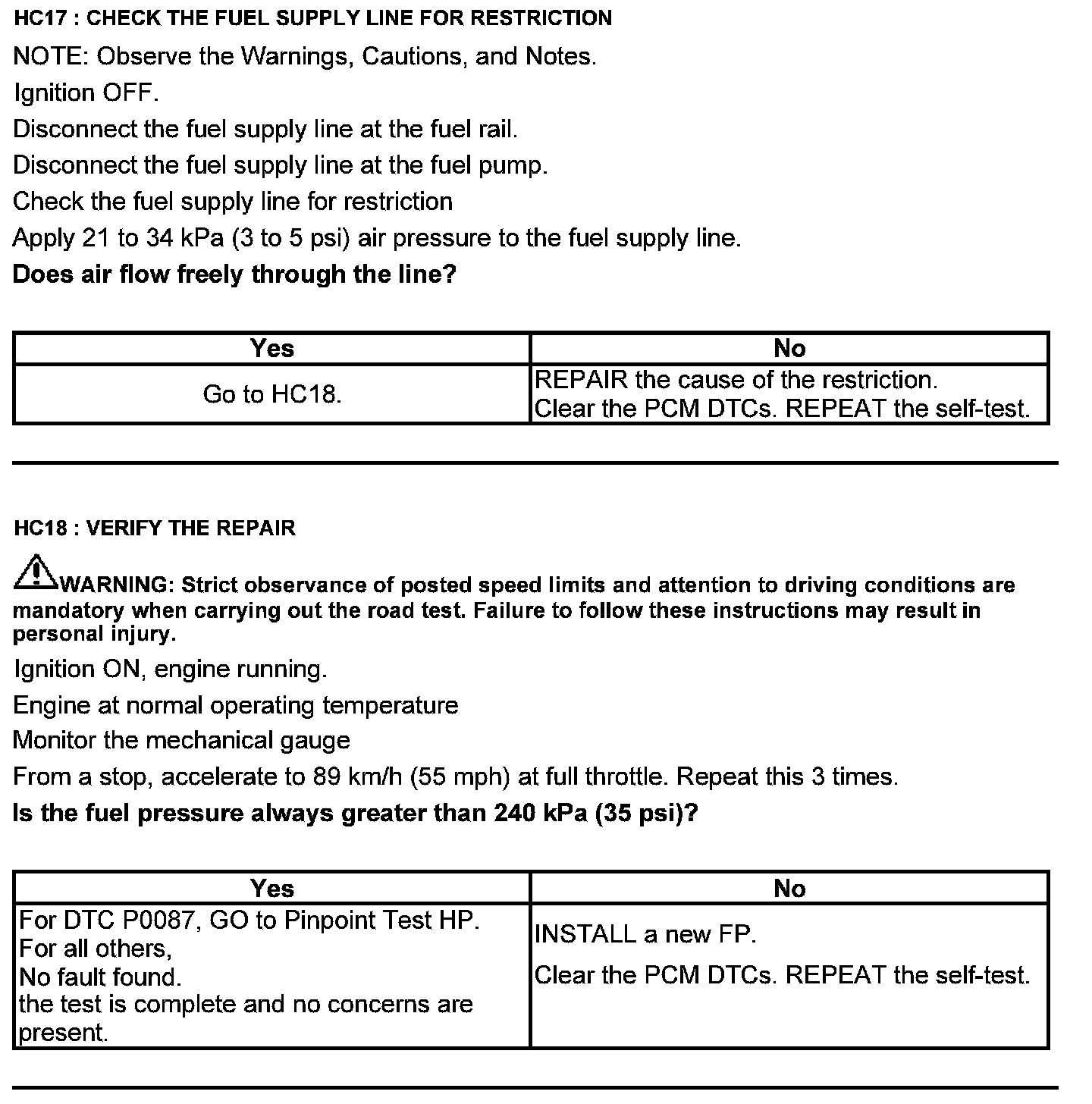

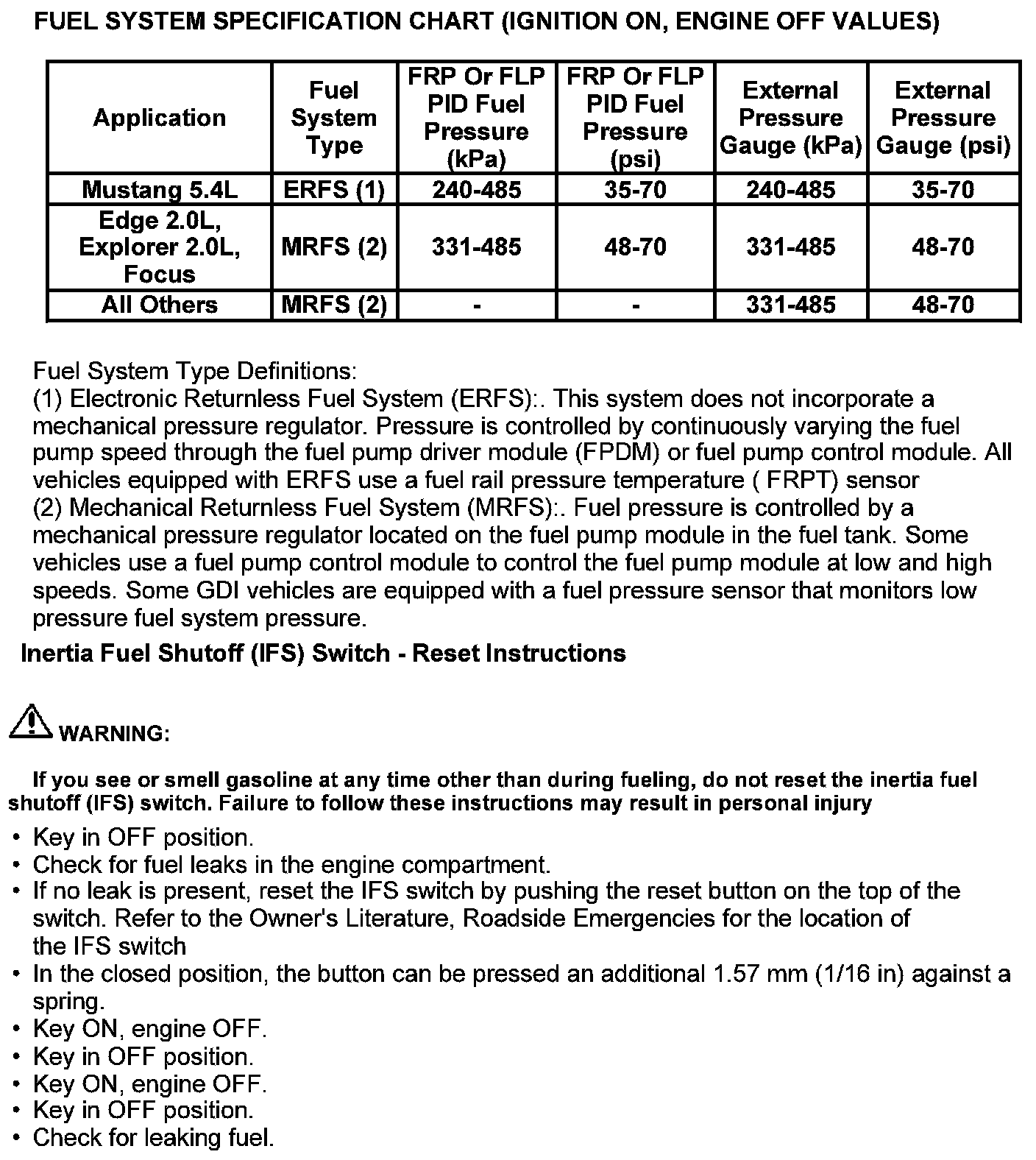

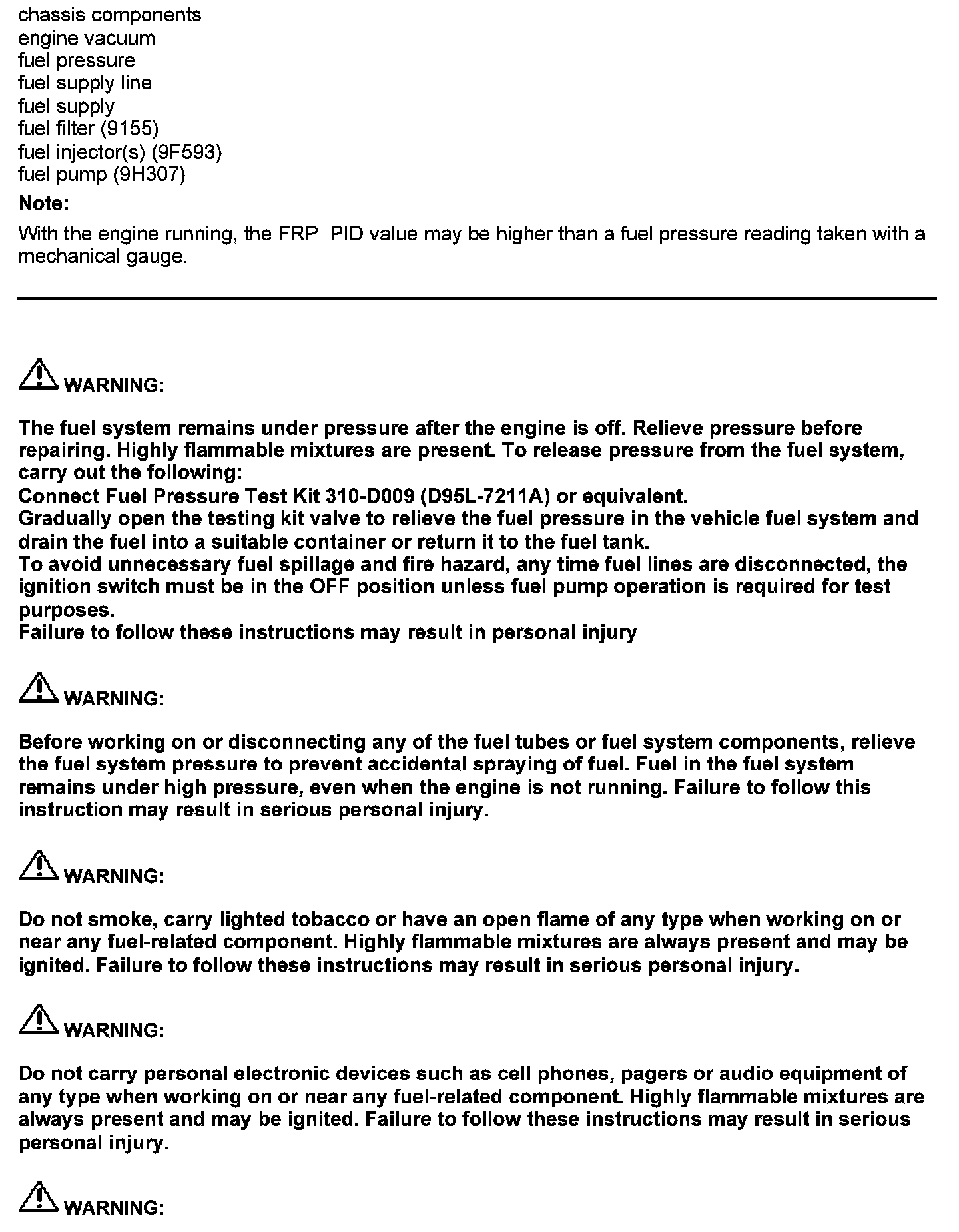

Fuel Delivery System - Vehicles That Start

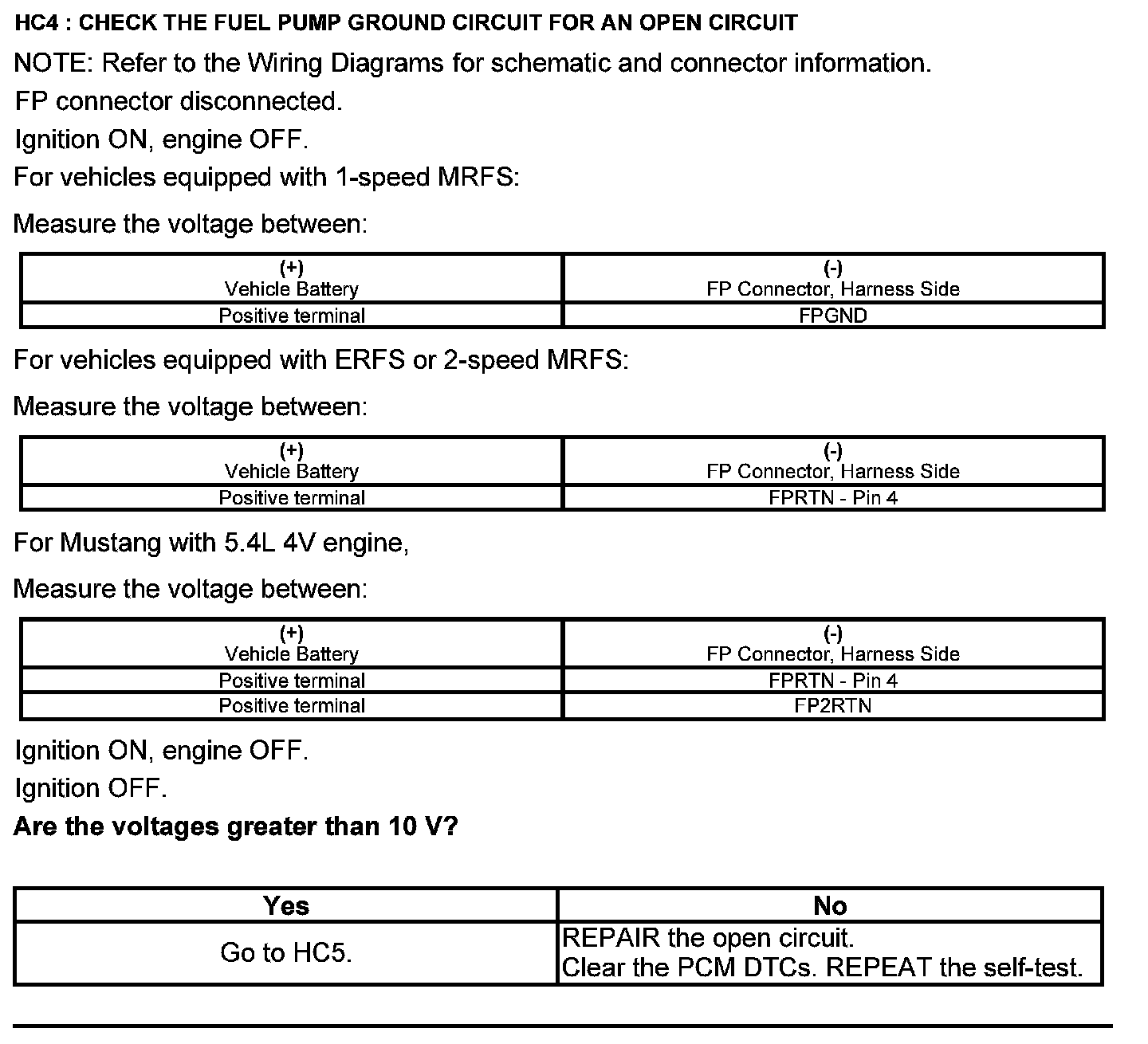

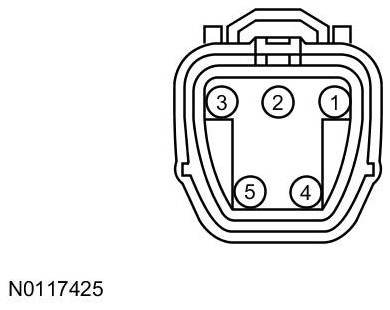

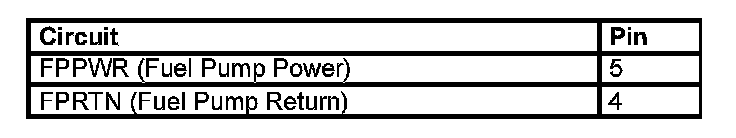

Fuel Pump (FP) Connector





Harness Side
