Symptom Related Diagnostic Procedures
Starting System

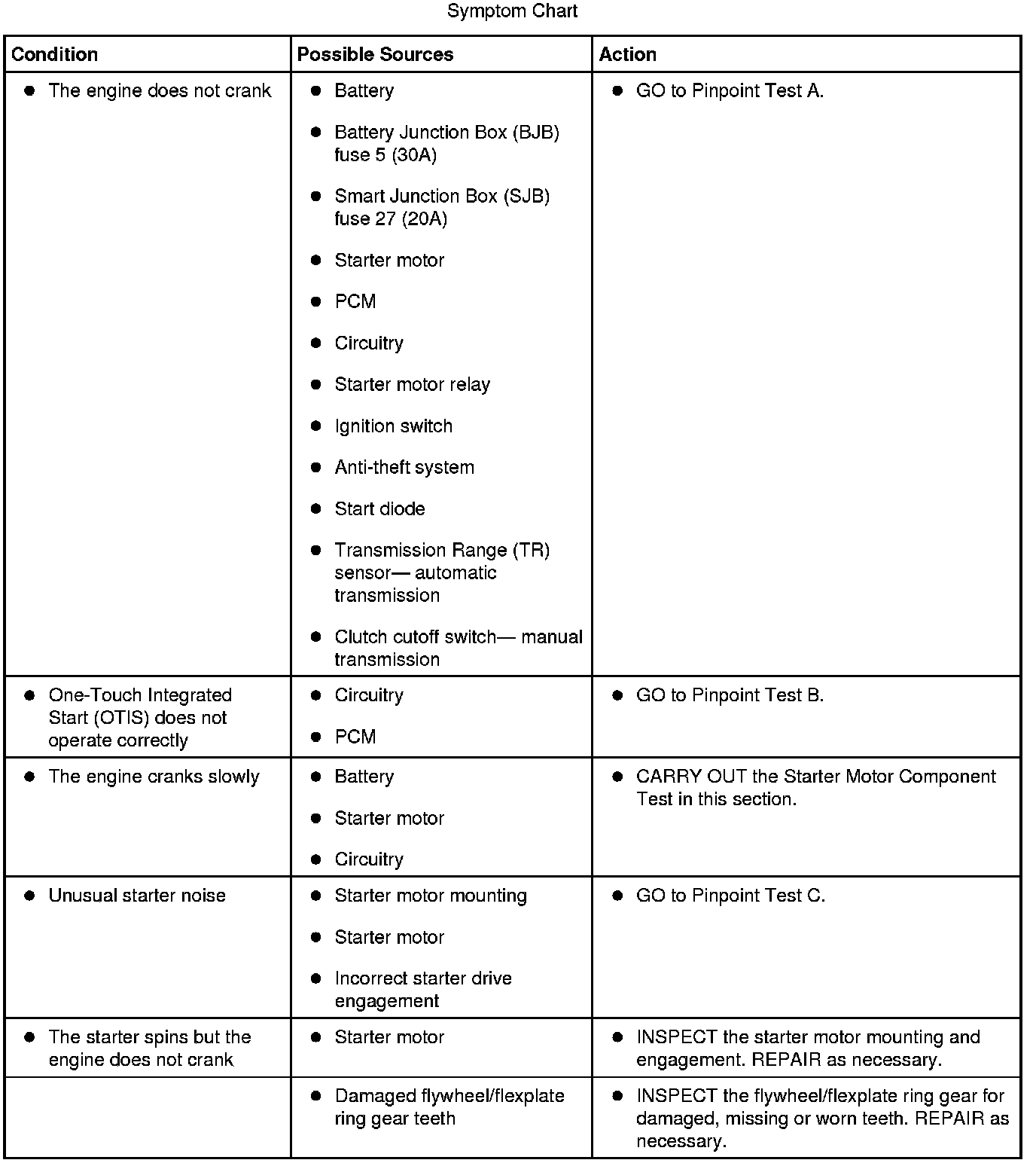

Symptom Chart
NOTE:
For hybrid
starting system
diagnostics, refer to Computers and Control Systems Information.
