Transaxle Support Insulator - Anti-Roll: Notes

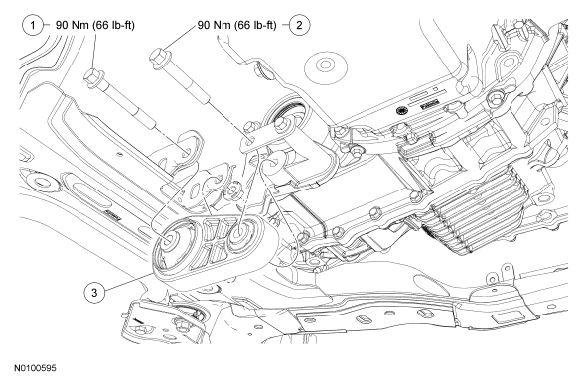

Fig 1: Exploded View Of Transaxle Support Insulator (Anti-Roll) With Torque Specifications
G06275519Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W706674 Rear roll restrictor bolt
2 W500545 Front roll restrictor bolt
3 6P082 Roll restrictor assembly
