Powertrain Control Module (PCM): Notes

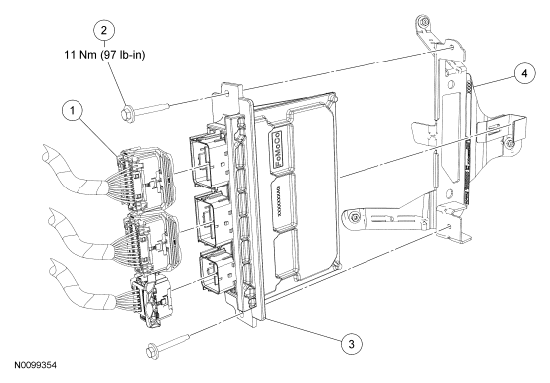

Fig 1: Exploded View Of Powertrain Control Module With Torque Specification
G06272555Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCM electrical connector (3 required)
2 W505428 PCM bolt (2 required)
3 12A650 PCM
4 12A659 PCM bracket
