Restraints Control Module (RCM): Notes

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)
software with appropriate hardware, or equivalent scan tool

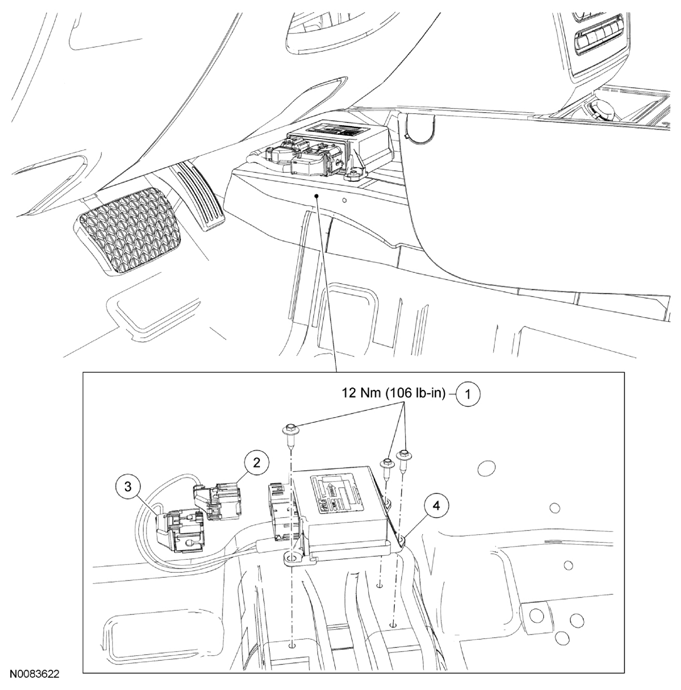

Fig 1: Restraints Control Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707722	Restraints Control Module (RCM) bolts (3 required)
2	-	RCM small connector (part of 14A005)
3	-	RCM large connector (part of 14A005)
4	14B321	RCM
