Removal and Installation

NOTE: For MKZ when equipped with a navigation system, the traction control switch is serviced with the Front Controls Interface Module (FCIM). For additional information, refer to INFORMATION AND ENTERTAINMENT SYSTEMS .

Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Press the retaining tabs and remove the traction control switch.

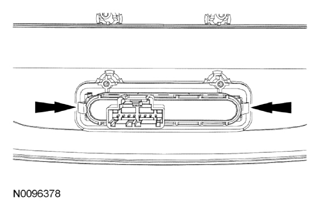

Fig 1: Location of Traction Control Switch Retaining Tabs
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
