Wheel Speed Sensor - Front: Notes

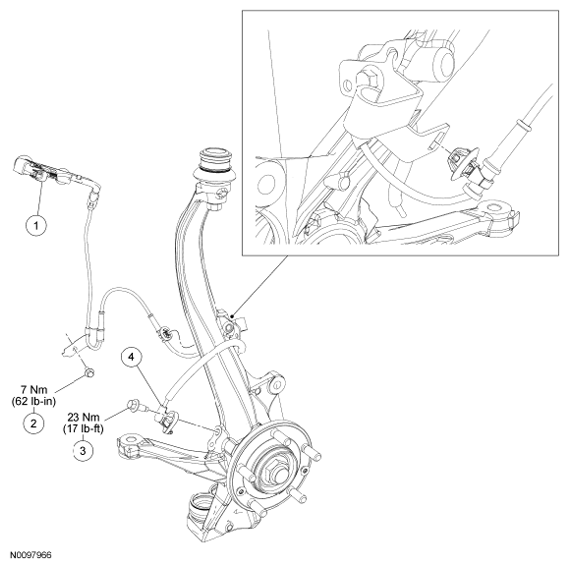

Fig 1: Exploded View Of Wheel Speed Sensor - Front With Torque Specifications
G06257196Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor electrical connector (part of 14290)
2 W500020 Wheel speed sensor harness bracket-to-body bolt
3 W500222 Wheel speed sensor bolt
4 2C204 RH/2C205 LH Wheel speed sensor
