Generator - 3.0L: Notes

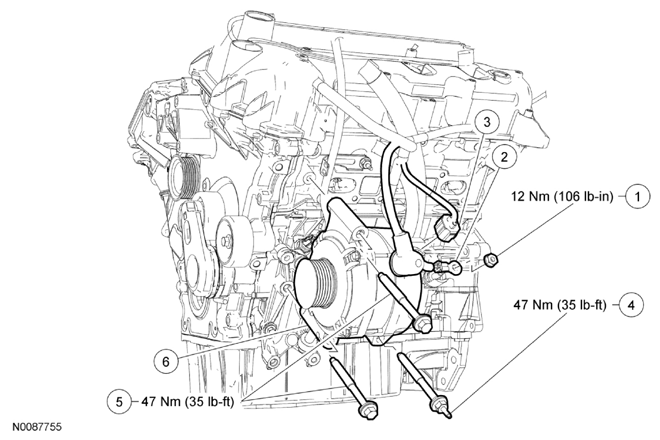

Fig 1: Generator With Related Replacement Components With Torque Specifications - 3.0L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706414	Generator B+ terminal nut
2	-	Generator B+ terminal (part of 14B060)
3	-	Generator electrical connector (part of 12B637)
4	W707669	Generator stud bolt
5	W704747	Generator bolts (2 required)
6	10300	Generator
