Generator - 3.5L: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

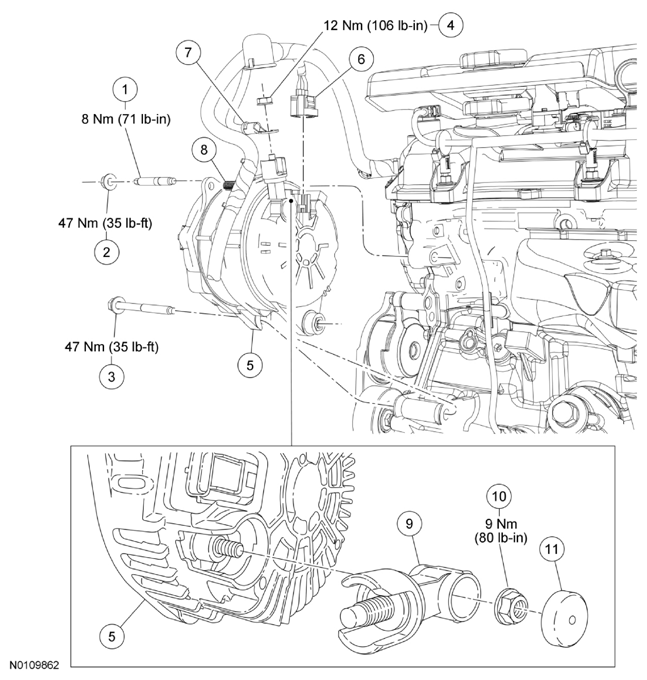

| Item | Part Number | Description |
|---|---|---|
| 1 | W712609 | Generator stud |
| 2 | W520414 | Generator stud nut |
| 3 | W709986 | Generator bolt |
| 4 | W706414 | Generator B+ terminal nut |
| 5 | 10300 | Generator |
| 6 | - | Generator electrical connector (part of 14B060) |
| 7 | - | Generator B+ terminal (part of 14B060) |
| 8 | - | Pin-type retainer, wiring harness |
| 9 | 10329 | Radial arm adapter |
| 10 | - | Radial arm adapter nut (part of 10329) |
| 11 | - | Radial arm adapter cap (part of 10329) |
