Power Steering Pump - 3.5L: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

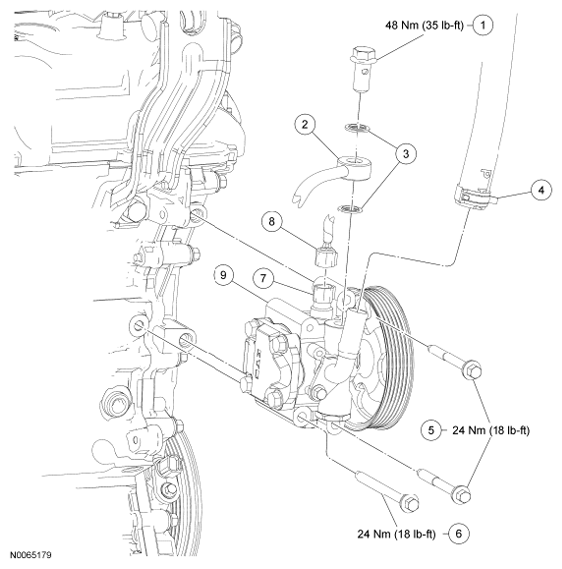

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-power steering pump banjo bolt (part of 3A705 service kit) |
| 2 | - | Power steering pressure line (part of 3A719 service kit) |
| 3 | - | Power steering pressure line seals (part of 3A705 service kit) |
| 4 | 3691 | Power steering pump supply hose |
| 5 | W701526 | Power steering pump bolts (2 required) |
| 6 | W701234 | Power steering pump bolt |
| 7 | - | Power Steering Pressure (PSP) switch electrical connector |
| 8 | 3N824 | PSP switch |
| 9 | 3A696 | Power steering pump |
