Tie Rod - Inner: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
NOTE:
Hydraulic Power Assist Steering (HPAS) shown in illustration, Electronic Power Assist Steering (EPAS) similar.

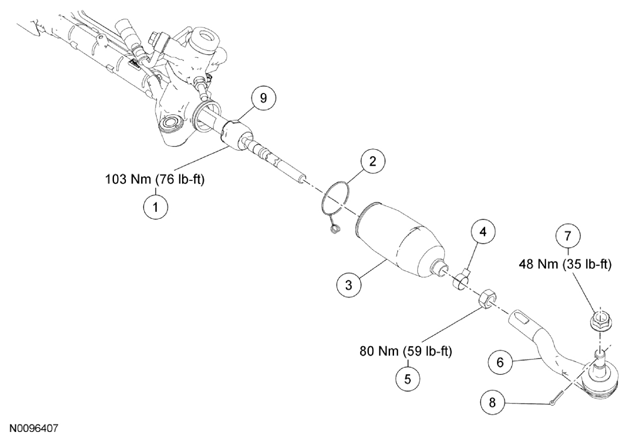

| Item | Part Number | Description |
|---|---|---|
| 1 | 3280 | Hydraulic Power Assist Steering (HPAS) inner tie-rod end (also part of 3332B service kit) |
| 1 | - | Electronic Power Assist Steering (EPAS) inner tie-rod end (part of 3280 service kit) |
| 2 | 3K745 | HPAS inner bellows boot clamp (also part of 3332B service kit) |
| 2 | - | EPAS inner bellows boot clamp (part of 3280 service kit) |
| 3 | 3K661 | HPAS bellows boot (also part of 3332B service kit) |
| 3 | - | EPAS bellows boot (part of 3280 service kit) |
| 4 | 3C650 | HPAS outer bellows boot clamp (also part of 3332B service kit) |
| 4 | - | EPAS outer bellows boot clamp (part of 3280 service kit) |
| 5 | W713882 | Tie-rod jam nut (all) |
| 6 | 3A130 | Outer tie-rod end (all) |
| 7 | W302124 | Outer tie-rod end nut (all) |
| 8 | W302420 | Cotter pin (all) |
| 9 | - | Retaining washer (Hydraulic Power Assist Steering (HPAS) only) (part of 3280 and 3332B service kit) |
