Steering Column Shroud: Notes

NOTE: Non-Hybrid vehicle shown in illustration, Hybrid vehicle similar.

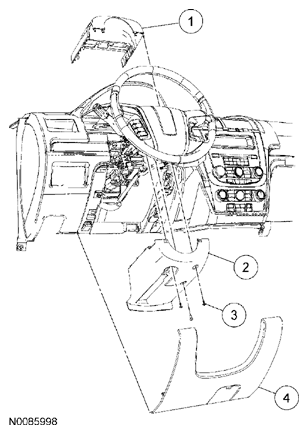

Fig 1: Identifying Steering Column Shroud Components (Non-Hybrid Vehicle)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering column shroud
2	3K512	Lower steering column shroud
3	W707658	Lower steering column shroud screw (3 required)
4	04459	Steering column opening trim panel
