Anti-Lock Brake System (ABS) Module: Notes

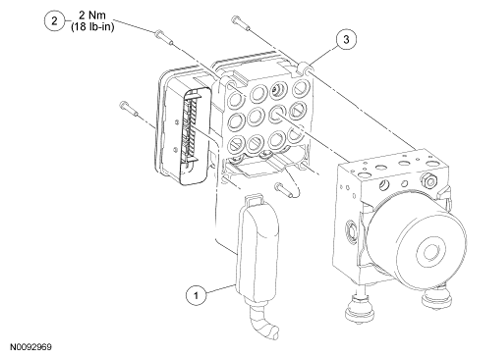

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module With Torque Specifications
G06257194Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - ABS module electrical connector (part of 14290)
2 2M101 ABS module screw (4 required)
3 2C219 ABS module
