Gearshift Cables: Installation

NOTE: When inserting the gearshift cables through the bulkhead, use care and do not damage the heat shielding.

NOTE: When inserting the gearshift cables through the bulkhead, make sure the arrow on the grommet is pointing upward.

Pull the gearshift cables through the bulkhead into the exterior.
Install the 2 gearshift cable grommet nuts and attach the gearshift cables to the floor.
- Tighten to 8 Nm (71 lb-in).

  Fig 1: Locating Gearshift Cable Grommet Nuts
  Courtesy of FORD MOTOR CO.
Install the wiring harness onto the studs.

NOTE: Make sure the gearshift cables are fully seated into the gearshift lever base or damage may occur.

Fig 2: Locating Gearshift Cables And Gearshift Lever Base

Courtesy of FORD MOTOR CO.

Connect the gearshift cables to the gearshift lever base.
Connect the select cable and the shift cable to the gearshift lever.

Fig 3: Locating Shift Cable And Select Cable
Courtesy of FORD MOTOR CO.
Position the insulation blanket into place.
Install the RCM. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

NOTE: Make sure the gearshift cables are fully seated into the transaxle bracket or damage may occur.

NOTE: The gearshift cable ends and transaxle bracket slots are unique. They can only be fully seated in the correct slot.

NOTE: The top cable will have id tape.

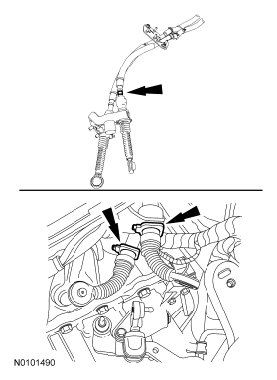

Fig 4: Locating Gearshift Cables And Transaxle Bracket

Courtesy of FORD MOTOR CO.

Connect the gearshift cables to the transaxle bracket.
Connect the gearshift cables to the transaxle shift control lever.

Fig 5: View Of Gearshift Cables And Transaxle Shift Control Lever
Courtesy of FORD MOTOR CO.
Adjust the gearshift cables. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION AND CLUTCH - GENERAL INFORMATION .
Install the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Install the heater core and evaporator core housing. For additional information, refer to CLIMATE CONTROL .
