Gearshift Cables: Removal

Remove the heater core and evaporator core housing. For additional information, refer to CLIMATE CONTROL .
Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the gearshift cables from the transaxle shift control lever.

Fig 1: View Of Gearshift Cables And Transaxle Shift Control Lever
Courtesy of FORD MOTOR CO.

NOTE: Carefully pry the retainer on the gearshift cables. Do not damage the gearshift cable retainers.

Fig 2: Locating Gearshift Cables And Transaxle Bracket

Courtesy of FORD MOTOR CO.

Disconnect the gearshift cables from the transaxle bracket.
Remove the Restraints Control Module (RCM). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Position the insulation blanket aside.
Remove the wiring harness from the studs.
Remove the 2 gearshift cable grommet nuts and detach the gearshift cables from the floor.

Fig 3: Locating Gearshift Cable Grommet Nuts
Courtesy of FORD MOTOR CO.
Disconnect the shift cable and select cable from the gearshift lever.

Fig 4: Locating Shift Cable And Select Cable
Courtesy of FORD MOTOR CO.

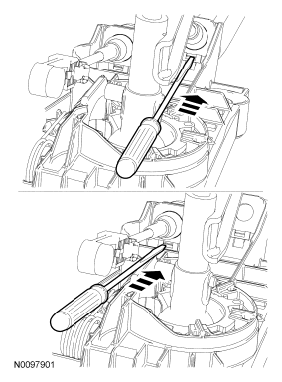

NOTE: Carefully disconnect the gearshift cables from the gearshift lever base. Do not damage the gearshift cable retainers.

Fig 5: Disconnecting Gearshift Cables From Gearshift Lever Base

Courtesy of FORD MOTOR CO.
