Transmission Control Module (TCM): Installation

Verify that the manual lever position markings are aligned. Markings should indicate that the manual lever is in the OVERDRIVE position.

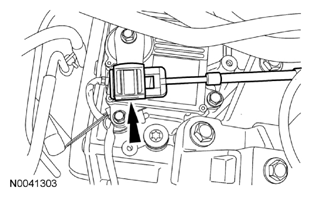

Fig 1: Location of Manual Lever Position Markings
Courtesy of FORD MOTOR CO.
Install the TCM.
- Tighten to 24 Nm (18 lb-ft).

  Fig 2: Location of TCM Mounting Bolts
  Courtesy of FORD MOTOR CO.
Install the manual control lever.

Fig 3: Location of Manual Control Lever
Courtesy of FORD MOTOR CO.
Install the manual control lever nut.
- Tighten to 12 Nm (106 lb-in).

  Fig 4: Location of Manual Control Lever Nut
  Courtesy of FORD MOTOR CO.
Connect the TCM electrical connector.

Fig 5: Location of TCM Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Support the underside of the manual control lever when installing the selector lever cable or damage to the manual control lever or shaft may occur.

Fig 6: Location of Selector Lever Cable End

Courtesy of FORD MOTOR CO.

Connect the selector lever cable end.
Install the ACL assembly. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING - 3.5L .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Carry out the TCM initial learning procedure. For additional information, refer to TRANSMISSION CONTROL MODULE (TCM) INITIAL LEARNING .
Check for correct vehicle operation.
