Removal And Installation: Clutch: Notes

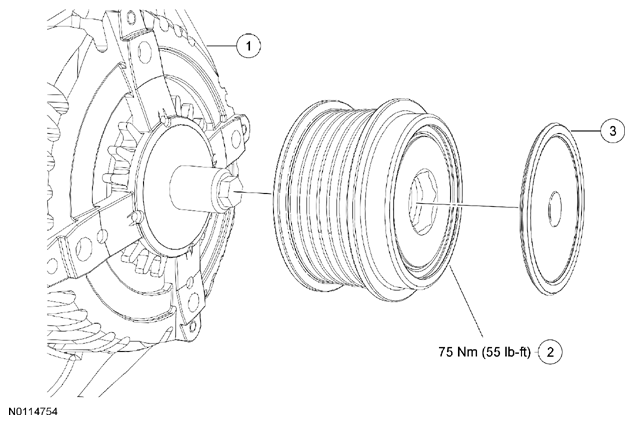

Fig 1: Generator, Generator Clutch Pulley And Cap With Torque Specifications
G07992407Courtesy of FORD MOTOR CO.
Item Part Number Description
1 10346 Generator
2 10344 Generator clutch pulley
3 10325 Cap
