Generator - 3.7L: Notes

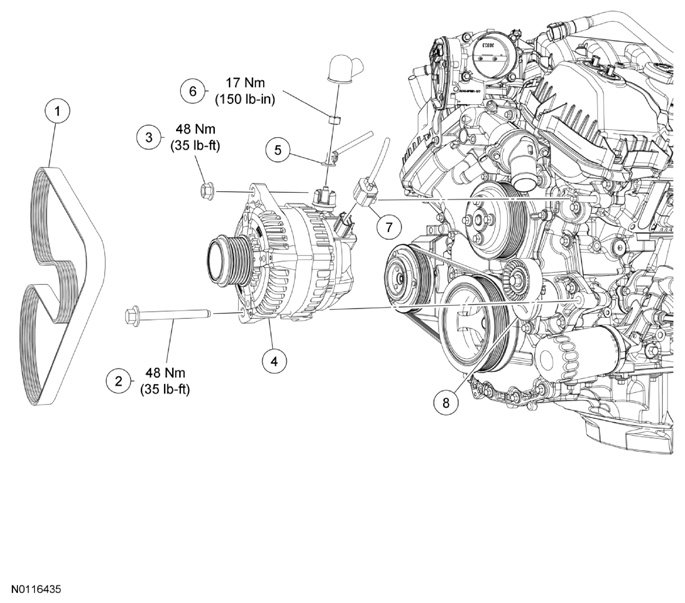

Fig 1: Generator Related Replacement Components With Torque Specifications -- 3.7L
G07964298Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8620 Front End Accessory Drive (FEAD) belt
2 W714577 Generator bolt
3 W520414 Generator stud nut
4 10317 Generator
5 - Generator B+ terminal (part of 14B060)
6 W711953 Generator B+ terminal nut
7 - Generator electrical connector (part of 14B060)
8 6B209 FEAD belt tensioner
