Generator - 5.4L (4V): Notes

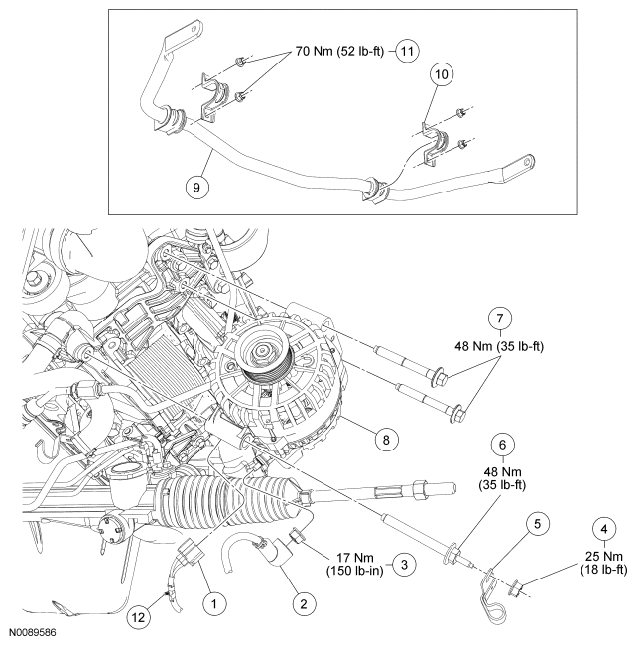

Fig 1: Generator Related Replacement Components With Torque Specifications -- 5.4L (4V)
G06403588Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Generator electrical connector (part of 14B060)
2 - Generator B+ terminal (part of 14B060)
3 W711953 Generator B+ terminal nut
4 W520111 Generator stud nut
5 - Power steering fluid line bracket
6 W704893 Lower generator bolt
7 N805424 Upper generator bolts (2 required)
8 10346 Generator
9 5482 Stabilizer bar
10 5486 Stabilizer bar bracket
11 W520213 Bracket nuts (4 required)
12 - Wire harness retainer (part of 14B060)
