Spring Lock Couplings: Connect

NOTE: Lubricate the tube fitting with clean engine oil.

Fig 1: Pushing Spring Lock Coupling Onto Tube

Courtesy of FORD MOTOR CO.

Align and push the spring lock coupling onto the tube fitting until fully seated.
Pull on the coupling to make sure it is fully engaged.
If equipped, install the fuel tube safety clip.

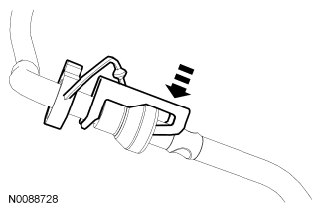

Fig 2: Installing Fuel Tube Safety Clip
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
