Disassembly And Assembly: Halfshaft: Assembly

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

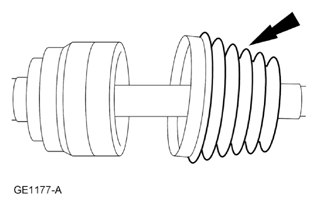

Position the outboard boot on the shaft.

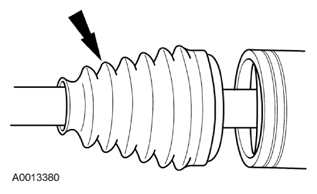

Fig 1: Identifying Outboard Boot
Courtesy of FORD MOTOR CO.
Pack the outboard CV joint with 165 g (5.82 oz) of grease.
1. Use CV joint grease or equivalent provided in the boot kit.
2. Spread any remaining grease from the kit evenly inside the boot.

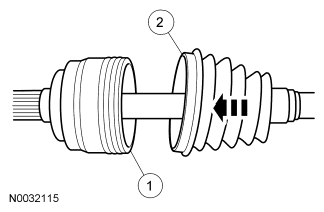

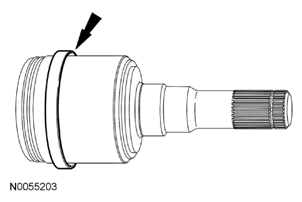

  Fig 2: Identifying Outboard CV Joint And Boot
  Courtesy of FORD MOTOR CO.
Install the outboard boot.
1. Clean the boot mounting surface.
2. Seat the boot in the joint boot groove.

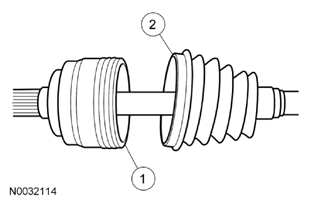

  Fig 3: Installing Outboard Boot
  Courtesy of FORD MOTOR CO.
Using a suitable boot clamp installer (such as Snap-On® stock #YA3050 or equivalent) install the large boot clamp.

Fig 4: Installing Large Boot Clamp Using Boot Clamp Installer
Courtesy of FORD MOTOR CO.

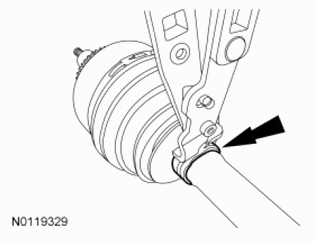

Using a suitable boot clamp installer (such as Snap-On® stock #YA3080 or equivalent) install the small boot clamp.

Fig 5: Installing Small Boot Clamp Using Boot Clamp Installer
Courtesy of FORD MOTOR CO.
Position the boot clamp on the shaft.

Fig 6: Locating Boot Clamp
Courtesy of FORD MOTOR CO.
Position the inboard boot on the shaft.

Fig 7: Locating Inboard Boot
Courtesy of FORD MOTOR CO.
Position the ball cage on the shaft with the tapered end facing the boot.

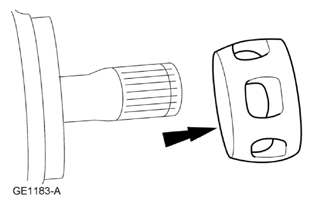

Fig 8: Locating Ball Cage
Courtesy of FORD MOTOR CO.
NOTE: Align the index marks.

Position the inner race on the shaft with the counterbored end facing the boot.

Fig 9: Locating Index Marks
Courtesy of FORD MOTOR CO.
Install the snap ring.

Fig 10: Locating Snap Ring
Courtesy of FORD MOTOR CO.
Lubricate and position the 6 balls.
- Use CV joint grease or equivalent provided in the boot kit.

  Fig 11: Locating Ball Cage Balls
  Courtesy of FORD MOTOR CO.
Fill the inboard CV joint housing with 235 g (8.29 oz) of grease.
- Use CV joint grease or equivalent provided in the boot kit.

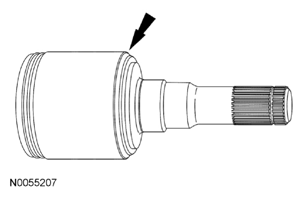

  Fig 12: Locating Inboard CV Joint Housing
  Courtesy of FORD MOTOR CO.
Position the boot clamp on the inboard CV joint housing.

Fig 13: Locating Boot Clamp
Courtesy of FORD MOTOR CO.

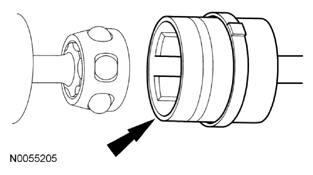

Position the inboard CV joint housing on the ball and race assembly.

Fig 14: Locating Inboard CV Joint Housing
Courtesy of FORD MOTOR CO.
Install the retaining ring.

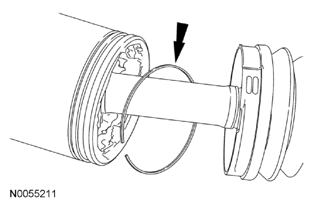

Fig 15: Locating Retaining Ring
Courtesy of FORD MOTOR CO.
Remove any excess grease from the mating surface. Seat the boot in the joint boot groove.

Fig 16: Locating Boot
Courtesy of FORD MOTOR CO.
Set the halfshaft assembled length to specification. For additional information, refer to SPECIFICATIONS .

Fig 17: Identifying Halfshaft Assembled Length
Courtesy of FORD MOTOR CO.
NOTE: Use care when inserting the screwdriver or damage to the boot may occur.

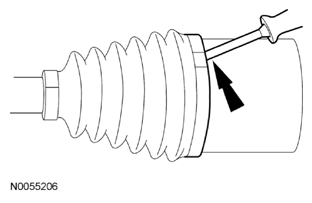

Insert a dull screwdriver blade under the boot to release the pressure.

Fig 18: Inserting Dull Screwdriver Blade Under Boot
Courtesy of FORD MOTOR CO.
Using a suitable boot clamp installer (such as Snap-On® stock #YA3050 or equivalent) install the large boot clamp.

Fig 19: Installing Large Boot Clamp Using Boot Clamp Installer
Courtesy of FORD MOTOR CO.
Using a suitable boot clamp installer (such as Snap-On® stock #YA3080 or equivalent) install the small boot clamp.

Fig 20: Installing Small Boot Clamp Using Boot Clamp Installer
Courtesy of FORD MOTOR CO.
NOTE: Maintain a clean work surface.

Compress the Integrated Wheel End (IWE) disconnect on the bench to collapse the vacuum chamber.

Fig 21: Compressing Integrated Wheel End
Courtesy of FORD MOTOR CO.

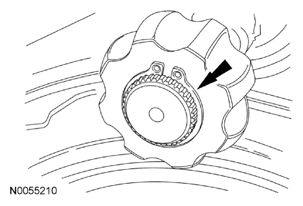

While the IWE disconnect is collapsed, install a vacuum cap on the vacuum port.

Fig 22: Installing Vacuum Cap On Vacuum Port
Courtesy of FORD MOTOR CO.
NOTE: Do not install the Integrated Wheel End (IWE) end disconnect in the knuckle. It must be installed on the outer Constant Velocity (CV) joint housing or damage to the component may occur.

Install the IWE disconnect on the outer CV joint housing.

Fig 23: Identifying Outer CV Joint Housing
Courtesy of FORD MOTOR CO.
NOTE: Verify the spline engagement by checking for spline lash before installing the halfshaft nut or damage to the component may occur.

Install the halfshaft in the vehicle. For additional information, refer to HALFSHAFT in Removal and Installation.
